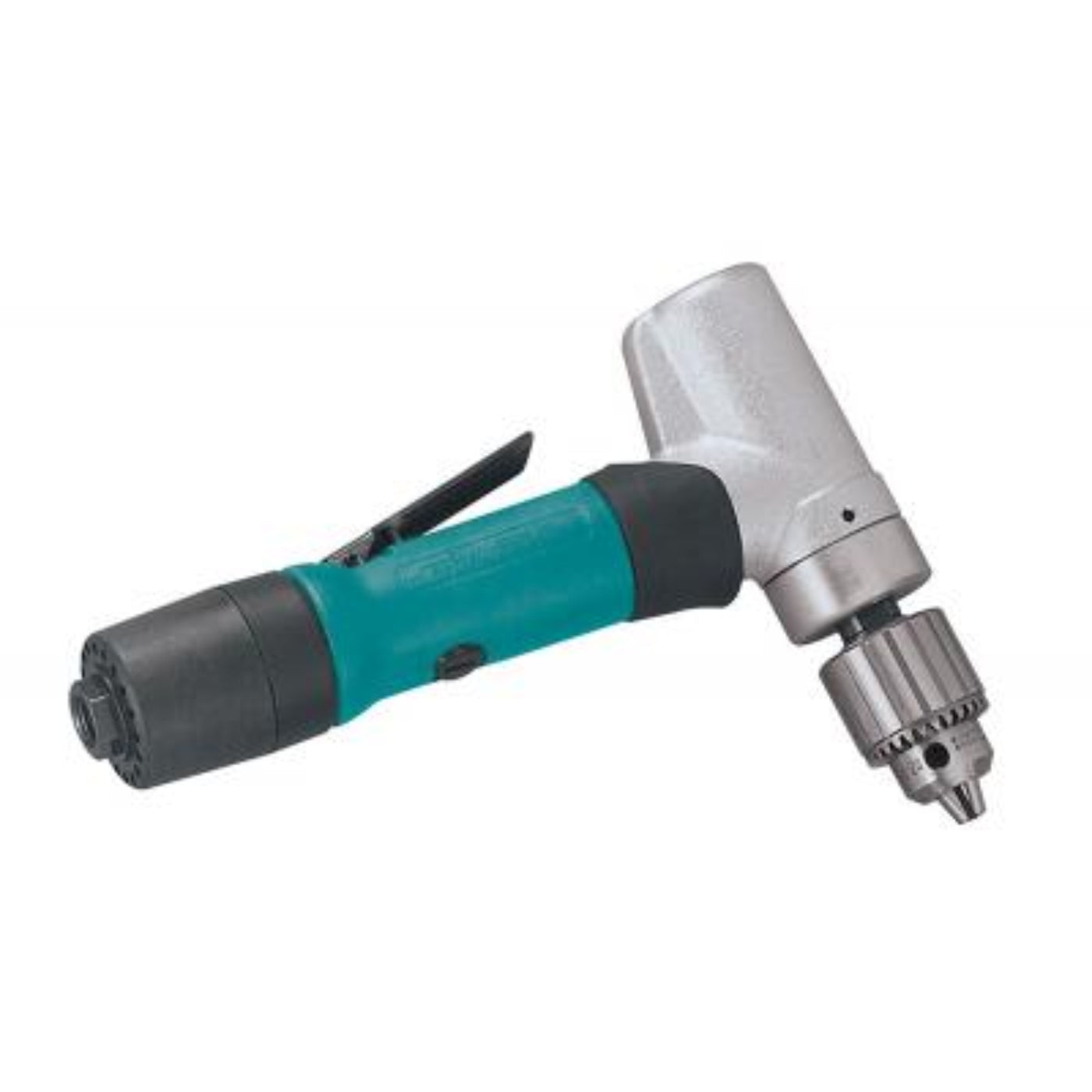

DYNABRADE 1/4" Drill - 53074

  • 4 hp, 5,000 RPM, 7 Degree Offset, Planetary-Geared, Rear Exhaust, Jacobs Chuck.
  • Includes 1/4" drill chuck and key.
  • Extended muffler design for reduced sound levels.
  • Tools include lightweight aluminum head
  • Made In The USA; Ideal for use in metal working, woodworking, marine and aerospace industries
Specifications
Air Consumption (SCFM) 22.0
Power (hp) 0.4
Max. RPM 5,000
Air Inlet Thread 1/4" NPT
Chuck Size 1/4"
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 1/4"
Vacuum Type Non-Vacuum
Height in. (mm) 5.5
Length in. (mm) 8.0
Weight lb. (kg) 1.83
Width in. (mm) 6.5
Pkg. Height in. (mm) 4.5
Pkg. Length in. (mm) 10
Pkg. Weight lb. (kg) 2.58
Pkg. Width in. (mm) 6.25
CE Certified Yes
EAN (UPC) 0616026530744
EAC Certified Yes
Tool Style 7 Degree Offset
What our Experts Think
  • Precision-Oriented Performance – The Dynabrade 53074 is designed for accurate, controlled drilling in assembly, fabrication, and maintenance applications.
  • Compact 1/4" Chuck Capacity – Ideal for smaller drill bits and detailed work where precision is more important than high material removal.
  • Comfortable for Extended Use – Its ergonomic design promotes better handling and helps reduce operator fatigue during repetitive tasks.
  • Industrial-Grade Reliability – Built to withstand daily use in professional environments while delivering consistent performance.
  • Smooth Pneumatic Power – Air-powered operation provides dependable torque, low maintenance requirements, and reliable productivity.
  • Best For: Precision assembly, aerospace applications, sheet metal work, manufacturing, and light industrial drilling tasks.
Q&A

Q: What is the DYNABRADE 53074 1/4" Drill designed for?
A: It is designed for precision drilling applications in assembly, manufacturing, automotive, aerospace, and industrial settings.

Q: Is this drill suitable for working in tight spaces?
A: Yes, its compact 1/4" design makes it ideal for detailed drilling tasks and confined work areas.

Q: What are the benefits of using a pneumatic drill?
A: Pneumatic drills offer lightweight handling, consistent power delivery, and reliable performance during extended use.

Q: Can this drill be used for repetitive production work?
A: Yes, it is built to handle continuous, high-volume drilling applications efficiently.

Q: How can I extend the life of the drill?
A: Use clean, dry compressed air, maintain proper air pressure, lubricate regularly, and perform routine maintenance inspections.

Maintenance Tips
  • Lubricate Regularly: Add a few drops of pneumatic tool oil to the air inlet before each use.
  • Use Clean, Dry Compressed Air: Proper air filtration helps prevent moisture and debris buildup.
  • Inspect the Chuck: Keep it clean and ensure drill bits are securely tightened.
  • Maintain Recommended Air Pressure: Avoid excessive PSI to reduce wear on internal components.
  • Clean After Use: Remove dust, chips, and residue from the tool and chuck area.
  • Check Hoses & Fittings: Inspect for leaks, loose connections, or damaged components.
  • Monitor Tool Performance: Periodically inspect the trigger, bearings, and motor for smooth operation.
  • Store in a Dry Location: Protect the drill from moisture, dirt, and corrosive environments to extend service life
