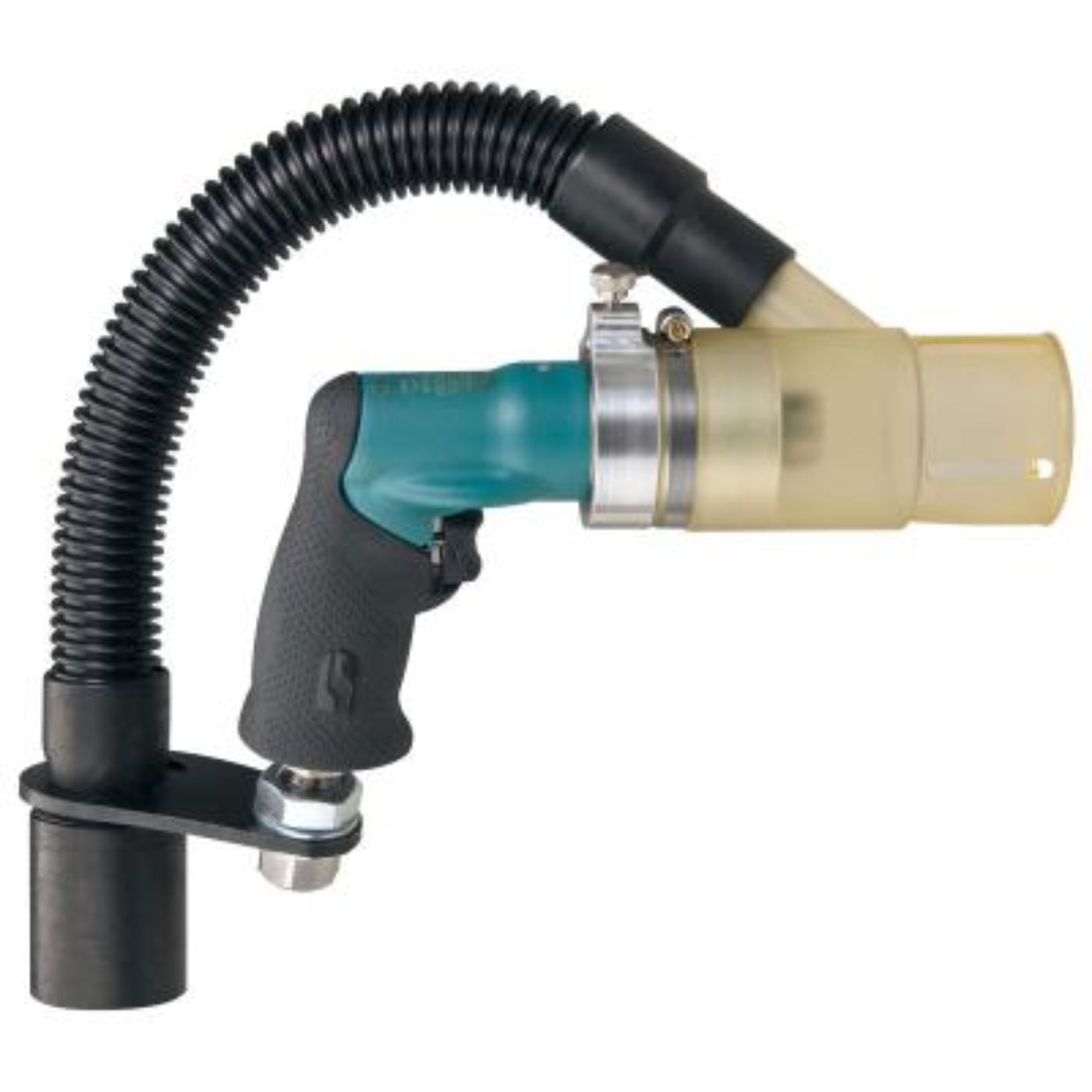

DYNABRADE 1/4" Drill, Central Vacuum - 52904

DYNABRADE 1/4" Drill, Central Vacuum - 52904

$798.99
$798.99 $1,064.99
SAVE 24% Sold out
DYNABRADE 1/4" Drill, Central Vacuum - 52904

DYNABRADE 1/4" Drill, Central Vacuum - 52904

$798.99
$798.99 $1,064.99
SAVE 24% Sold out

DYNABRADE 1/4" Drill, Central Vacuum - 52904

  • .4 hp, 1,000 RPM, Pistol-Grip, Geared, Rear Exhaust, DynaChuck.
  • .4 hp (298 W) Vacuum Drills include collapsible Vacuum Shroud, which compresses around drill bit to effectively capture chips and debris.
  • Pistol Grip design includes slow-speed start-up trigger.
  • High torque air motor; comfortable insulated tool grip.
  • Includes Conductive Hose & Cuffs, to shield operator from electrostatic discharge (ESD). 1-1/4" (32 mm) Diameter Vacuum Port for connection to Central Vacuum System.
  • Each model includes 1/4" Dynachuck and key.
Specifications
Air Consumption (SCFM) 25.0
Power (hp) 0.4
Max. RPM 1,000
Tool Spindle Thread 3/8" - 24 Male
Air Inlet Thread 1/4" NPT
Chuck Size 1/4"
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 1/4"
Vacuum Type Vacuum
Height in. (mm) 11.75
Length in. (mm) 10.5
Weight lb. (kg) 3.7
Width in. (mm) 10.0
Pkg. Height in. (mm) 5
Pkg. Length in. (mm) 15
Pkg. Weight lb. (kg) 4.1
Pkg. Width in. (mm) 10
CE Certified Yes
EAN (UPC) 0616026529045
EAC Certified Yes
Tool Style Pistol Grip
What our Experts Think
  • Keeps Work Areas Cleaner – The integrated central vacuum system helps remove dust and debris at the source, improving visibility and reducing cleanup time.
  • Precision 1/4" Drilling Performance – Ideal for detailed drilling applications that demand accuracy, control, and consistent results.
  • Supports Safer Operations – Dust extraction helps minimize airborne particles, making it a smart choice for clean manufacturing environments.
  • Comfortable for Extended Use – Ergonomic design enhances operator comfort, control, and productivity during repetitive drilling tasks.
  • Industrial-Grade Reliability – Built with durable components to withstand demanding production, assembly, and maintenance applications.
  • Best For: Aerospace assembly, composite materials, electronics manufacturing, metal fabrication, and clean-room drilling operations.
Q&A

Q: What is the DYNABRADE 52904 1/4" Drill with Central Vacuum used for?
A: It is designed for precision drilling applications while helping collect dust and debris for a cleaner workspace.

Q: What advantages does the central vacuum feature provide?
A: The integrated vacuum system helps reduce airborne particles, improve operator visibility, and support cleaner operations.

Q: Is this drill suitable for industrial environments?
A: Yes, it is ideal for aerospace, composite manufacturing, automotive, and other professional production settings.

Q: Can it handle continuous production work?
A: Yes, its rugged pneumatic design is built for repetitive, high-volume drilling applications.

Q: How can I maintain peak performance?
A: Regularly clean the vacuum system, use clean and dry compressed air, lubricate as recommended, and inspect the tool routinely.

Maintenance Tips
  • Lubricate Regularly: Apply a few drops of air tool oil to the air inlet before each use.
  • Use Clean, Dry Air: Filtered compressed air helps protect internal components and extend service life.
  • Keep Vacuum Passages Clear: Inspect and clean vacuum ports, hoses, and fittings to maintain efficient dust collection.
  • Inspect the Chuck: Remove debris and ensure drill bits are securely fastened before operation.
  • Maintain Recommended Air Pressure: Operate at the specified PSI for consistent performance and reduced wear.
  • Clean After Use: Wipe down the tool and clear dust buildup from the vacuum system.
  • Check Air & Vacuum Hoses: Look for leaks, cracks, or loose connections and replace worn parts promptly.
  • Store Properly: Keep the drill in a dry, clean environment to prevent rust, contamination, and vacuum system blockages
