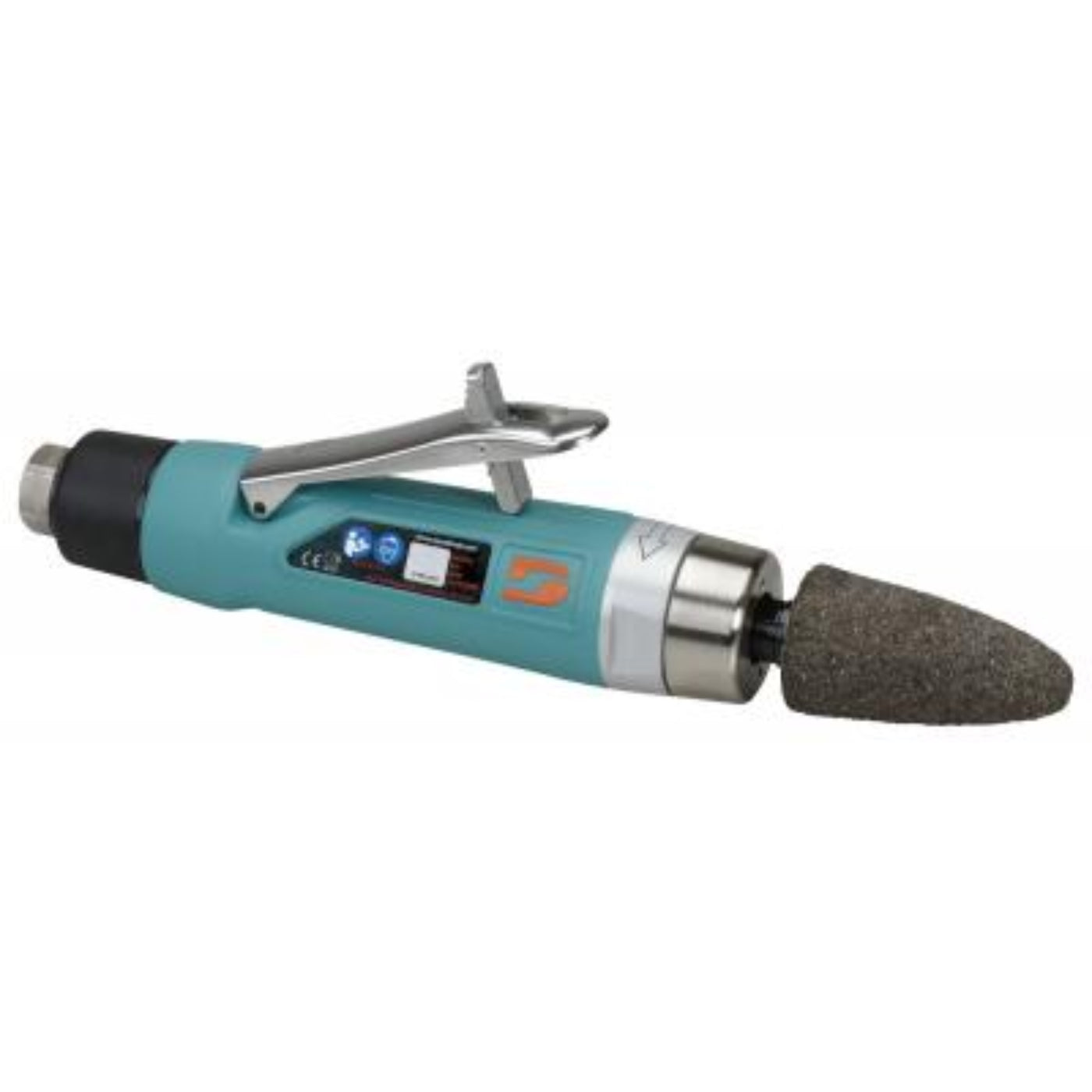

DYNABRADE Cone Or Plug Wheel Grinder - 52717

DYNABRADE Cone Or Plug Wheel Grinder - 52717

$421.99
$421.99 $561.99
SAVE 24% Sold out
DYNABRADE Cone Or Plug Wheel Grinder - 52717

DYNABRADE Cone Or Plug Wheel Grinder - 52717

$421.99
$421.99 $561.99
SAVE 24% Sold out

DYNABRADE Cone Or Plug Wheel Grinder - 52717

  •  1 hp, Straight-Line, 18,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
  • Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
  • Straight Line, 1 hp, Rear Exhaust, 18,000 RPM.
  • Accepts optional Abrasive Cone or Plug Wheel, 1-1/4" diameter.
  • Governor-controlled motor maintains RPM under heavy load. Safety-lock lever is included on all models.
  • Industrial applications in fabrication plants, welding shops, foundries, steel mills and shipyards.
Specifications
Air Consumption (SCFM) 40.0
Power (hp) 1.0
Max. RPM 18,000
Tool Spindle Thread 3/8"- 24 Male
Air Inlet Thread 3/8" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Non-Vacuum
Height in. (mm) 1.875
Length in. (mm) 8.875
Weight lb. (kg) 2.26
Width in. (mm) 6.5
Pkg. Height in. (mm) 4.5
Pkg. Length in. (mm) 10
Pkg. Weight lb. (kg) 3.05
Pkg. Width in. (mm) 6.25
CE Certified Yes
EAN (UPC) 0616026527171
EAC Certified Yes
Tool Style Straight Line
What our Experts Think
  • The Dynabrade 52717 Cone or Plug Wheel Grinder is a high-speed industrial straight-line air grinder built for aggressive metal removal, weld cleanup, and surface preparation in tight or recessed areas.
  • Delivers 18,000 RPM max speed with a 1 HP governor-controlled motor, ensuring strong cutting performance while maintaining stable RPM under load.
  • Designed for use with cone or plug wheels up to ~1-1/4" diameter, making it ideal for internal grinding, casting cleanup, and weld seam finishing.
  • Includes a 6-inch-class straight extension shaft design, giving better reach into deep or confined fabrication areas where standard grinders cannot access.
  • Built with rear exhaust, safety-lock throttle, and rugged industrial housing, optimized for continuous-duty use in fabrication shops, steel plants, and shipyards.
  • Uses a 3/8"-24 spindle thread and 90 PSI operating pressure, standard for heavy-duty pneumatic grinding systems.
  • Best suited for professionals who need a fast, aggressive extended-reach grinder for weld blending, deburring, and heavy surface prep in hard-to-access internal spaces, rather than precision finishing or light-duty work.

Q&A

Q: What is the Dynabrade Cone or Plug Wheel Grinder (52717) used for?
A: It is a 1 HP pneumatic straight-line grinder designed for heavy-duty metal removal, weld cleanup, deburring, and surface preparation using cone or plug abrasive wheels.

Q: What materials is it used on?
A: It is commonly used on steel, stainless steel, castings, and welded structures in fabrication and industrial environments.

Q: What are its key specifications?
A: It runs at 18,000 RPM, uses a 3/8"-24 spindle thread, supports up to 1-1/4" cone or plug wheels, and requires high airflow (about 40 SCFM at 90 PSI).

Q: What makes it suitable for industrial work?
A: It has a governor-controlled motor (maintains speed under load), rear exhaust for operator comfort, and a safety-lock throttle for controlled, continuous grinding.

Q: What industries use it most?
A: It is widely used in welding shops, steel fabrication, shipyards, foundries, and heavy maintenance operations.


Maintenance Tips
  • Lubricate air motor daily with pneumatic tool oil to ensure smooth, long-lasting operation.
  • Use clean, dry compressed air at recommended pressure to prevent internal wear and corrosion.
  • Inspect cone/plug wheels before use and replace any cracked, worn, or unbalanced abrasives.
  • Keep air inlet and exhaust ports clear of dust and grinding debris for proper airflow.
  • Check spindle, collet, and wheel mounting for tightness and alignment before operation.
  • Ensure hoses and fittings are leak-free to maintain consistent RPM and grinding power.
  • Do not exceed rated wheel speed to prevent safety hazards and premature tool damage.
  • Monitor vibration during use; excessive vibration may indicate imbalance or worn bearings.
  • Clean tool housing after each use to remove metal dust and contaminants.
  • Store in a dry, clean environment to protect internal components from moisture and corrosion.
