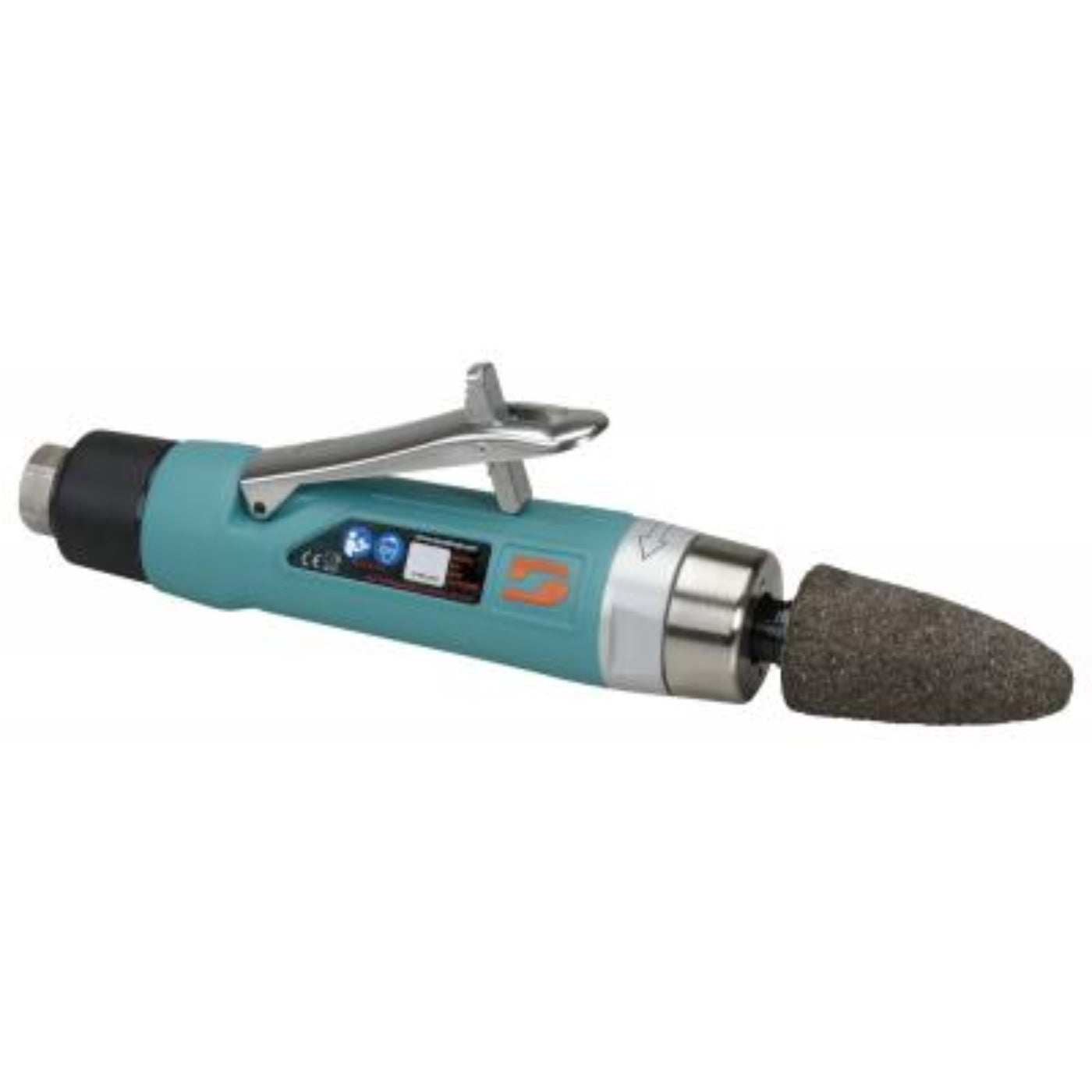

DYNABRADE Cone Or Plug Wheel Grinder - 52715

  • 1 hp, Straight-Line, 12,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
  • Cone or Plug Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
  • Straight Line, 1 hp, Rear Exhaust, 12,000 RPM.
  • Accepts optional Abrasive Cone or Plug Wheel, 1-1/4" diameter.
  • Governor-controlled motor maintains RPM under heavy load. Safety-lock lever is included on all models.
  • Industrial applications in fabrication plants, welding shops, foundries, steel mills and shipyards.
Specifications
Air Consumption (SCFM) 38.0
Power (hp) 1.0
Max. RPM 12,000
Tool Spindle Thread 3/8"- 24 Male
Air Inlet Thread 3/8" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Non-Vacuum
Height in. (mm) 1.875
Length in. (mm) 7.75
Weight lb. (kg) 2.15
Width in. (mm) 6.5
Pkg. Height in. (mm) 4.5
Pkg. Length in. (mm) 10
Pkg. Weight lb. (kg) 2.89
Pkg. Width in. (mm) 6.25
CE Certified Yes
EAN (UPC) 0616026527157
EAC Certified Yes
Tool Style Straight Line
What our Experts Think
  • The Dynabrade 52715 Cone or Plug Wheel Grinder is a heavy-duty straight-line pneumatic grinder designed for aggressive metal removal, weld cleanup, and surface finishing in confined or hard-to-reach areas.
  • Powered by a 1 HP governor-controlled air motor, it maintains stable performance under load for consistent grinding results in demanding industrial environments.
  • Delivers a 12,000 RPM free speed, optimized for controlled but efficient material removal using cone or plug wheels up to about 1-1/4" diameter.
  • Built for internal and recessed grinding work, making it especially useful for cleaning weld seams, smoothing castings, and preparing metal surfaces before coating or painting.
  • Uses a straight, compact body with rear exhaust and safety-lock throttle, improving operator control and durability in continuous-use shop environments.
  • Designed for industrial-grade applications such as fabrication shops, steel mills, shipyards, and heavy maintenance work—not general workshop grinding.
  • Best suited for professionals who need a reliable, high-torque cone/plug grinder for precision internal grinding and weld finishing in tight spaces, where standard grinders can’t reach effectively.

Q&A

Q: What is the Dynabrade 52715 Cone or Plug Wheel Grinder used for?
A: It is a 1 HP straight-line pneumatic grinder designed for heavy-duty metal grinding, weld cleanup, deburring, and surface preparation using cone or plug abrasive wheels.

Q: What materials is it used on?
A: It is commonly used on steel, stainless steel, castings, and welded metal structures in fabrication and industrial settings.

Q: What are its key specifications?
A: It runs at 12,000 RPM, uses a 3/8"-24 spindle thread, supports up to 1-1/4" cone or plug wheels, and operates with a high air demand (about 38 SCFM at 90 PSI).

Q: What makes it suitable for industrial work?
A: It has a governor-controlled motor that maintains speed under load, a safety-lock throttle, and a rear exhaust design for operator comfort during continuous use.

Q: What industries use it most?
A: It is widely used in welding shops, steel fabrication, shipyards, foundries, and heavy maintenance operations.


Maintenance Tips
  • Lubricate the air motor daily with pneumatic tool oil to maintain smooth performance and reduce internal wear.
  • Use clean, dry compressed air at the recommended pressure to prevent corrosion and power loss.
  • Inspect cone/plug wheels before each use; replace any cracked, worn, or unbalanced abrasives immediately.
  • Check spindle, collet, and mounting components regularly for tightness and proper alignment.
  • Keep air inlet and exhaust ports clear of grinding dust and debris for proper airflow and cooling.
  • Ensure hoses and fittings are leak-free to maintain consistent RPM and tool efficiency.
  • Do not exceed the rated speed of installed abrasives to avoid safety risks and tool damage.
  • Monitor vibration during operation; unusual vibration may indicate imbalance or bearing wear.
  • Clean tool body after use to prevent buildup of metal particles and contaminants.
  • Store in a dry, clean environment to protect internal air motor components from moisture and corrosion.
