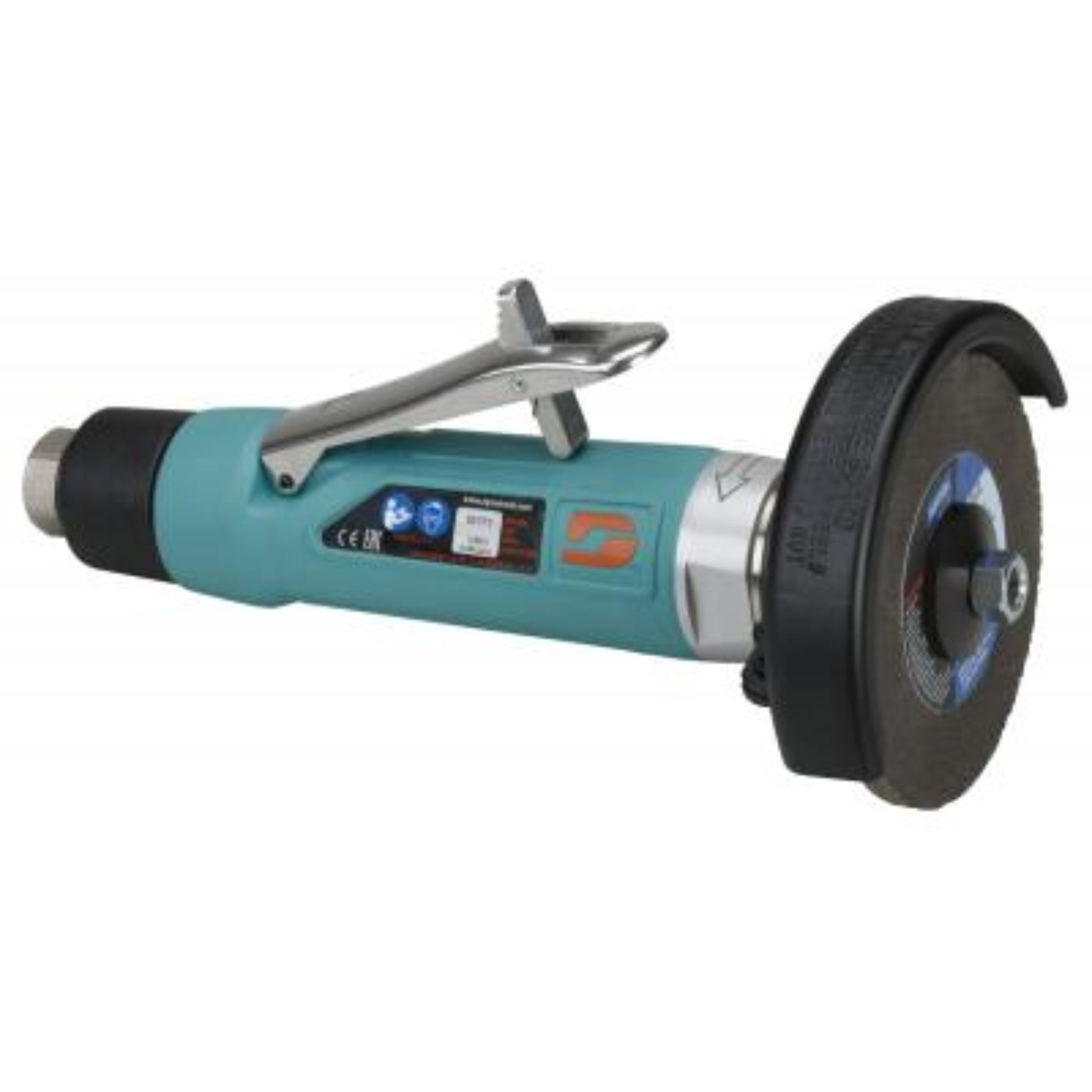

DYNABRADE 4" (102 mm) Dia. Straight-Line Type 1 Wheel Grinder - 52374

DYNABRADE 4" (102 mm) Dia. Straight-Line Type 1 Wheel Grinder - 52374

• 1 hp, 15,000 RPM, Rear Exhaust, 3/8"-24 Spindle Thread.
• Type 1 Wheel Grinder, for cleaning metal, grinding and smoothing weld seams, removing imperfections before painting.
• 4" Diameter, Straight Line, 1 hp, 15,000 RPM.
• Accepts optional 4" diameter Type 1 Wheel, with 3/8" center hole (maximum wheel width of 1/4").
• Governor-controlled motor maintains RPM under heavy load; rear exhaust.
• Safety-lock lever is included on all models.

Specifications

What our Experts Think

Q&A

Q: What is the DYNABRADE 52374 used for?
A: A high-speed pneumatic straight-line Type 1 wheel grinder designed for aggressive metal removal, weld cleanup, deburring, and surface preparation before finishing or coating.

Q: What type of wheel does it use?
A: It uses 4" (102 mm) Type 1 reinforced grinding wheels with a 3/8" center hole for fast, controlled material removal.

Q: What is the power and performance level?
A: It features a 1 HP air motor built for continuous heavy-duty industrial grinding applications.

Q: What is the operating speed?
A: It runs at up to 15,000 RPM, providing fast cutting and grinding performance while maintaining control under load.

Q: What makes the straight-line design useful?
A: The inline body improves stability and control, especially when working on weld seams, edges, and flat metal surfaces.

Q: What materials can it be used on?
A: Suitable for steel, stainless steel, castings, welds, and other ferrous metals requiring shaping or cleanup.

Q: Does it maintain speed under load?
A: Yes, it uses a governor-controlled motor to help maintain consistent RPM during heavy grinding pressure.

Maintenance Tips

• Use clean, dry compressed air: Prevents vane wear and keeps RPM stable under load.
• Lubricate daily: Add a few drops of air-tool oil before use to protect internal vanes and seals.
• Maintain correct pressure (~90 PSI): Ensures consistent 15,000 RPM performance and avoids overspeeding.
• Use only RPM-rated 4" Type 1 wheels: Wheels must be rated ≥15,000 RPM to prevent failure.
• Inspect wheels before every use: Never run cracked, chipped, or dropped wheels—high-speed breakage risk is severe.
• Check spindle & 3/8"-24 threads: Keep mounting surfaces clean and tight to prevent wobble and imbalance.
• Watch for vibration at startup: Any shake indicates imbalance—stop immediately and re-mount wheel.
• Keep rear exhaust clear: Prevents overheating during continuous grinding.
• Inspect air hoses & fittings: Air leaks reduce torque and cause unstable RPM under load.
• Clean after use: Remove grinding dust from spindle, guard area, and housing to maintain balance and airflow.
