DYNABRADE 1.0 HP Trim Router (Complete) - 51865

DYNABRADE 1.0 HP Trim Router (Complete) - 51865

$611.99
$611.99 $815.99
SAVE 25% Sold out
DYNABRADE 1.0 HP Trim Router (Complete) - 51865

DYNABRADE 1.0 HP Trim Router (Complete) - 51865

$611.99
$611.99 $815.99
SAVE 25% Sold out

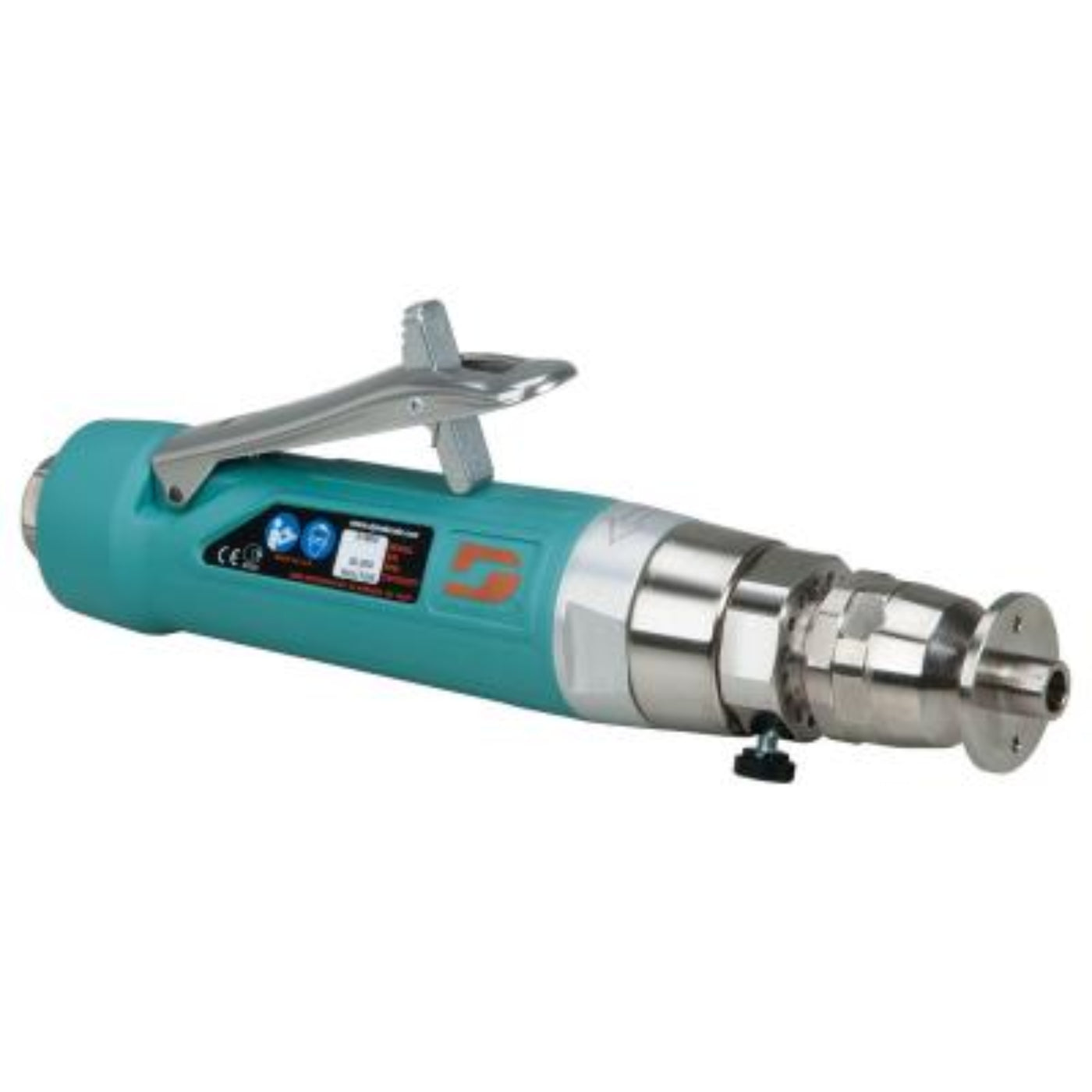

DYNABRADE 1.0 HP Trim Router (Complete) - 51865

  • 20,000 RPM, 1/4" Collet, Governor-Controlled, Front Exhaust.
  • Ideal for countless routing applications, on surfaces such as hardwoods and softwoods, cabinets, casework, doors, panels, counter-tops, displays and more!
  • 1.0 hp air motor is governor-controlled to maintain consistent speed under load. Lightweight thermal-insulated tool housing is ergonomically designed for operator comfort.
  • Each model includes 1/4" collet, for accepting optional 1/4" router bits. Safety-lock throttle lever prevents accidental tool start-up, for enhanced workplace safety.
  • Tool includes router nose assembly and 51861 template guide (with 1/2" dia. base). Nose assembly and template guide are nickel-plated for added durability.
  • Allows quick adjustment of trim housing depth. Two wrenches included.
Specifications
Collet Insert Size 1/4"
Air Consumption (SCFM) 44.0
Power (hp) 1.0
Max. RPM 20,000
Air Inlet Thread 3/8" NPT
Exhaust Type Front
GL_Country Of Origin US
Hose I.D. in. (mm) 3/8"
Vacuum Type Non-Vacuum
Motor Type Rotary Vane
Height in. (mm) 1.9
Length in. (mm) 9.7
Weight lb. (kg) 2.64
Width in. (mm) 9.7
Pkg. Height in. (mm) 4.5
Pkg. Length in. (mm) 10
Pkg. Weight lb. (kg) 4.19
Pkg. Width in. (mm) 6.25
CE Certified Yes
EAN (UPC) 0616026518650
EAC Certified Yes
Tool Style Straight-Line
What our Experts Think
  • Powerful 1.0 HP motor delivers enhanced routing performance for trimming, edge profiling, laminate work, and precision finishing applications.
  • Complete router package provides a convenient, ready-to-use solution for professional workshops and production environments.
  • Compact, ergonomic design offers excellent control and maneuverability, making detailed routing tasks easier and more accurate.
  • Produces clean, consistent cuts and smooth edge finishes, helping improve workmanship and reduce secondary finishing time.
  • Durable construction is designed to withstand continuous professional use in woodworking, composites, and fabrication settings.
  • An ideal routing solution for professionals seeking greater power, precision, and long-term reliability in a compact tool.**
Q&A

Q: What is the DYNABRADE 51865 Trim Router used for?
A: The 51865 Trim Router is designed for precision routing, edge trimming, laminate work, profiling, and detailed finishing in woodworking and fabrication applications.

Q: What are the benefits of the 1.0 HP motor?
A: The powerful 1.0 HP motor provides increased cutting performance for demanding routing tasks while maintaining smooth and controlled operation.

Q: Is the 51865 suitable for precision routing applications?
A: Yes, its compact design allows for accurate trimming, template routing, decorative edging, and detailed finishing work.

Q: What materials can the trim router be used on?
A: It is suitable for wood, laminates, composites, plastics, and other machinable materials when paired with the appropriate router bit.

Q: Why choose the DYNABRADE 51865?
A: It offers powerful routing performance, precise control, durable construction, and reliable operation for professional woodworking and fabrication environments.

Maintenance Tips
  • Clean the router body, collet, base assembly, and air inlets after each use to remove dust and debris.
  • Inspect router bits regularly for wear, chipping, or dull cutting edges and replace as needed.
  • Keep the collet clean and ensure bits are properly seated and securely tightened before operation.
  • Lubricate the air motor regularly with approved pneumatic tool oil according to Dynabrade recommendations.
  • Check air hoses, fittings, and connections for leaks, wear, or damage.
  • Maintain proper air pressure and use clean, dry compressed air for optimal routing performance.
  • Inspect the router base, depth adjustment mechanism, and guide components for smooth operation and accuracy.
  • Keep ventilation and exhaust ports clear to prevent performance loss and overheating.
  • Tighten loose fasteners and inspect safety-related components during routine maintenance.
  • Follow Dynabrade’s preventive maintenance schedule to maximize routing accuracy, tool life, and overall reliability.
