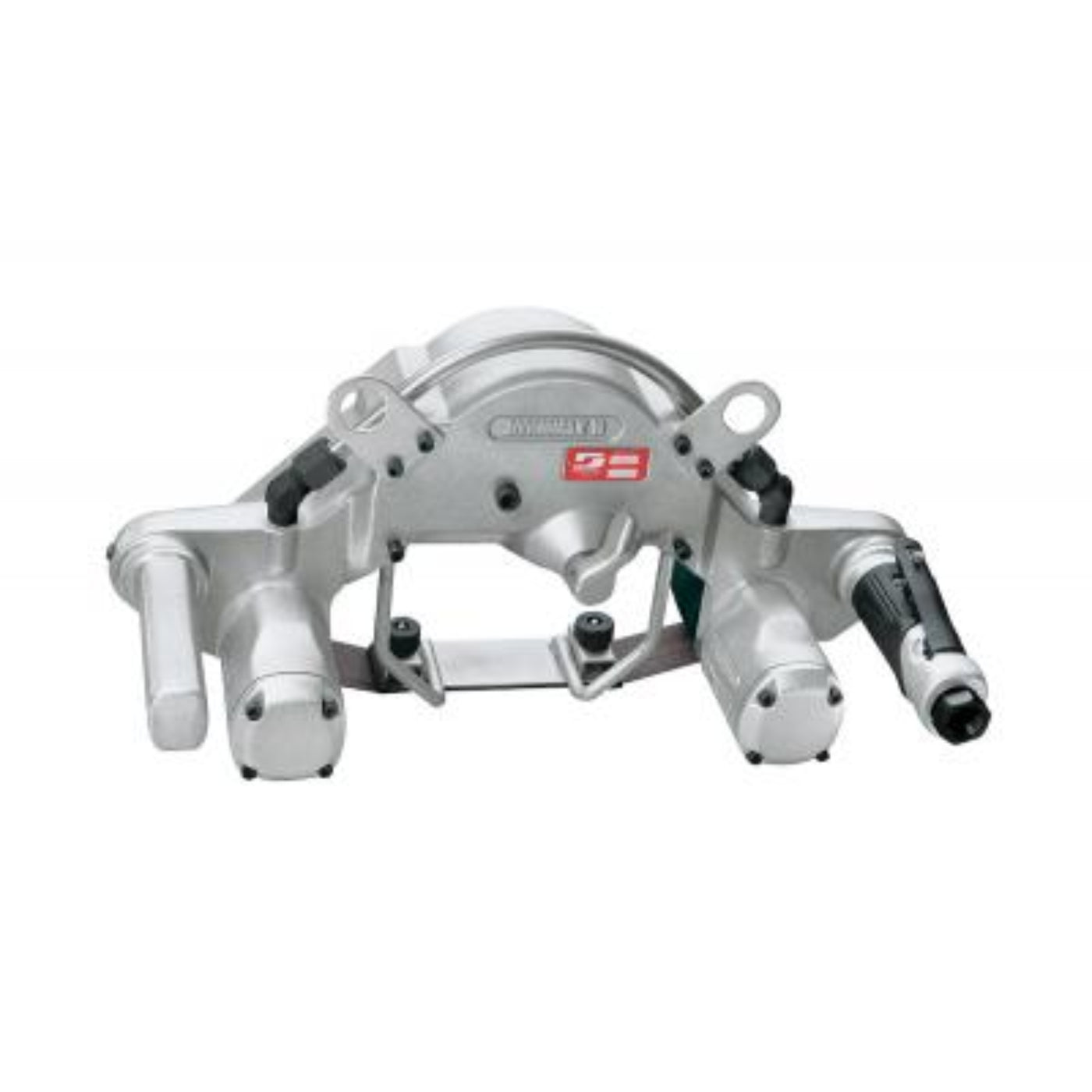

DYNABRADE Dynangle II Abrasive Belt Tool, Dual Motor w/ Platen - 14303

  • 2.4 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2" W x 34" L (51 mm x 864 mm) Belts.
  • Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.
  • Heavy-Duty 'Dual Motor' with Platen offers extra power. Uses 2" x 34" belts; belts spans 11-1/2" for 'strap polishing' up to 36" diameter pipe.
  • Includes 2" wide x 6" long platen which is easily removed for strap polishing.
Specifications
Air Consumption (SCFM) 106.0
Power (hp) 2.0
Max. RPM 13,000
Max. SFPM 8,500
Air Inlet Thread 1/2" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 1/2"
Vacuum Type Non-Vacuum
Height in. (mm) 9.5625
Length in. (mm) 18.875
Weight lb. (kg) 19.62
Width in. (mm) 12.5
Pkg. Height in. (mm) 13.75
Pkg. Length in. (mm) 20.25
Pkg. Weight lb. (kg) 22.93
Pkg. Width in. (mm) 12.5
CE Certified Yes
EAN (UPC) 0616026143036
EAC Certified Yes
Tool Style Straight Line
What our Experts Think
  • Powerful Dual-Motor Design: Delivers consistent performance for demanding grinding, blending, and finishing applications.
  • Enhanced Flat Surface Finishing: The integrated platen provides excellent belt support for precise sanding, deburring, and edge finishing.
  • Versatile Workshop Performance: Ideal for weld blending, stock removal, surface preparation, and detailed metal finishing.
  • Ergonomic and Easy to Control: Lightweight, balanced construction improves handling while reducing operator fatigue during extended use.
  • Trusted by Professionals: A reliable solution for metal fabrication, automotive, aerospace, and industrial maintenance where accuracy and durability are essential.
Q&A

Q: What is the DYNABRADE Dynangle II Abrasive Belt Tool 14303 used for?
A: It is designed for grinding, deburring, blending, weld removal, and surface finishing in hard-to-reach areas using abrasive belts.

Q: What are the key benefits of the Dual Motor with Platen design?
A: The dual motor design delivers consistent power, while the platen provides improved belt support for controlled flat sanding, precision finishing, and longer abrasive belt life.

Q: Which applications is this tool best suited for?
A: It is ideal for metal fabrication, stainless steel finishing, weld seam blending, edge deburring, and industrial maintenance where accuracy and productivity are essential.

Maintenance Tips
  • Lubricate both air motors regularly with pneumatic tool oil unless using an inline lubricator.
  • Use clean, dry compressed air at the recommended operating pressure for optimal performance.
  • Inspect the abrasive belt, platen, and contact wheels before each use; replace worn or damaged components promptly.
  • Clean sanding dust and debris from the belt path, air inlet, and tool housing after every use.
  • Check hoses, fittings, and fasteners for leaks or looseness to ensure safe operation.
  • Store the tool in a clean, dry environment to prevent corrosion and extend service life.
