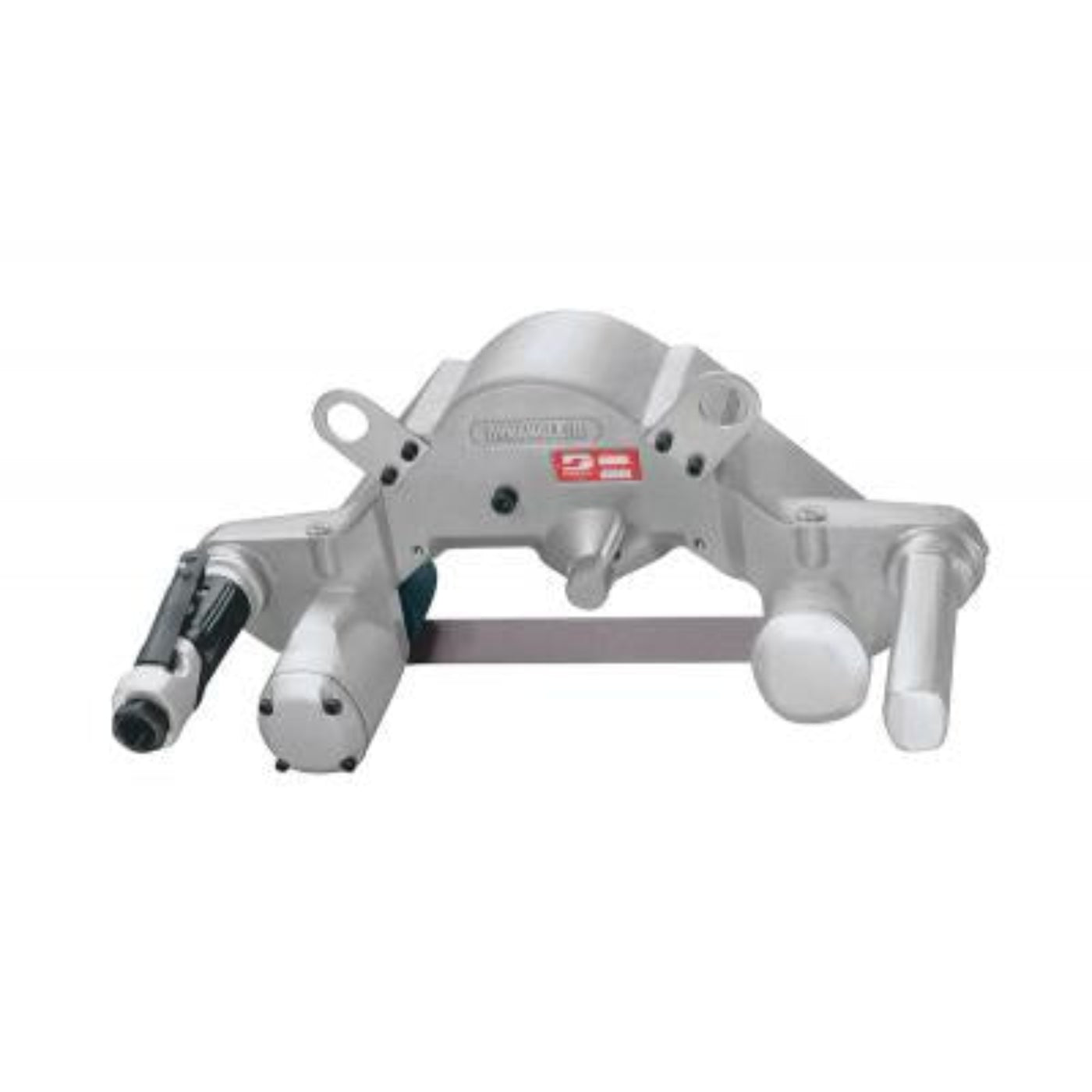

DYNABRADE Dynangle II Abrasive Belt Tool, Single Motor - 14300

  • 1.2 hp, Straight-Line, 13,000 RPM, Rear Exhaust, for 2" W x 34" L (51 mm x 864 mm) Belts.
  • Polish, grind contours and flats. Surface conditions stainless steel and most other metals. Also used on wood, plastic, fiberglass and composites. Blends and finishes solder seams. Built-in abrasive belt guard; fast belt change.
  • Single Motor model uses 2" x 34" belts; belts spans 11-1/2" for 'strap polishing' up to 36" diameter pipe.
  • 14350 Conversion Kit available to upgrade single motor model to a dual motor model at a later date, if desired.
  • Safety-lock lever-throttle; hanger brackets included for optional overhead suspension.
  • For grinding with a platen pad, dual motor models are recommended.
Specifications
Air Consumption (SCFM) 53.0
Power (hp) 1.2
Max. RPM 13,000
Max. SFPM 8,500
Air Inlet Thread 1/2" NPT
Exhaust Type Rear
GL_Country Of Origin US
Hose I.D. in. (mm) 1/2"
Vacuum Type Non-Vacuum
Height in. (mm) 8.5
Length in. (mm) 18.875
Weight lb. (kg) 15.66
Width in. (mm) 12.5
Pkg. Height in. (mm) 13.75
Pkg. Length in. (mm) 20.25
Pkg. Weight lb. (kg) 18.96
Pkg. Width in. (mm) 12.5
CE Certified Yes
EAN (UPC) 0616026143005
EAC Certified Yes
Tool Style Straight Line
What our Experts Think
  • Powerful Single-Motor Performance: Delivers reliable power for grinding, blending, deburring, and surface finishing applications.
  • Excellent Precision: The compact, ergonomic design provides outstanding control when working in tight spaces and on detailed components.
  • Versatile Metalworking Tool: Ideal for weld blending, edge finishing, stock removal, and surface preparation across a variety of metals.
  • Comfortable for Daily Use: Lightweight, balanced construction helps reduce operator fatigue while maintaining consistent performance.
  • Professional-Grade Reliability: A dependable choice for metal fabrication, automotive, aerospace, and industrial maintenance environments requiring precisionand durability.

Q&A

Q: What is the DYNABRADE Dynangle II Abrasive Belt Tool 14300 used for?
A: It is designed for grinding, deburring, blending, weld removal, and precision surface finishing in hard-to-reach areas using abrasive belts.

Q: What are the key benefits of the Single Motor design?
A: The single motor design provides lightweight handling, smooth operation, and excellent control for accurate material removal and consistent finishing.

Q: Which applications is this tool best suited for?
A: It is ideal for metal fabrication, stainless steel finishing, edge deburring, weld blending, and industrial maintenance where precision and maneuverability are essential.

Maintenance Tips
  • Lubricate the air motor regularly with pneumatic tool oil unless an inline lubricator is installed.
  • Use clean, dry compressed air at the recommended operating pressure for reliable performance.
  • Inspect the abrasive belt and contact wheel before each use; replace worn or damaged components promptly.
  • Clean sanding dust and debris from the belt path, drive wheel, and air inlet after use.
  • Check air hoses, fittings, and fasteners regularly for leaks or loose connections.
  • Store the tool in a clean, dry location to prevent corrosion and maximize service life.
