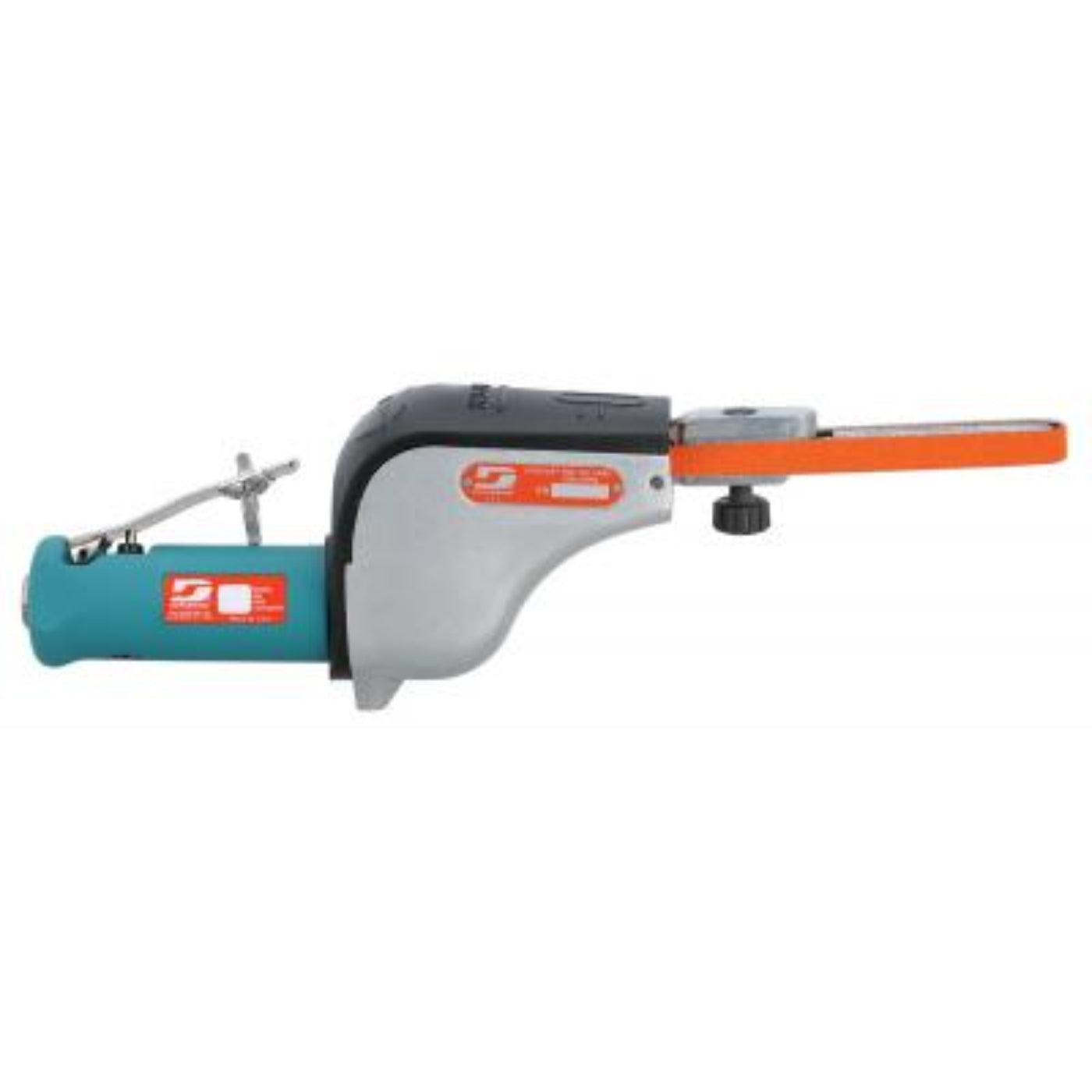

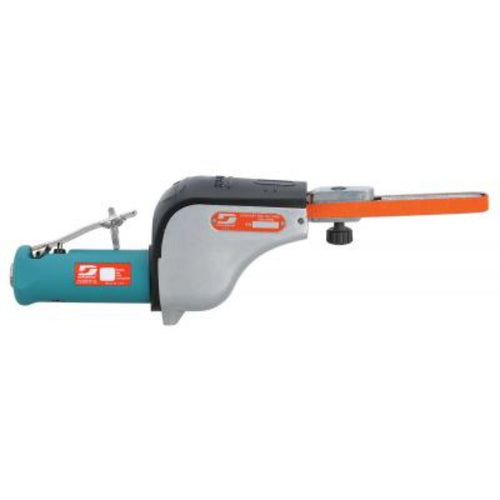

DYNABRADE Dynafile Abrasive Belt Tool - 14000

DYNABRADE Dynafile Abrasive Belt Tool - 14000

$510.99
$510.99 $680.99
SAVE 24% Sold out
DYNABRADE Dynafile Abrasive Belt Tool - 14000

DYNABRADE Dynafile Abrasive Belt Tool - 14000

$510.99
$510.99 $680.99
SAVE 24% Sold out

DYNABRADE Dynafile Abrasive Belt Tool - 14000

  • .5 hp, Straight-Line, 20,000 RPM, Front Exhaust, for 1/8"-1/2" W x 24" L (3-13 mm x 610 mm) Belts.
  • World-famous Dynafile replaces tedious hand filing and sanding. Grind, deburr, blend, polish, finish and more!
  • Grind from contact wheel or platen pad. Finish and polish using slack of belt. For use on metal, plastic, fiberglass, composites, rubber, glass and stone.
  • Tool includes 11218 Contact Arm for standard use. Also accepts a variety of additional Contact Arms. Superior belt tracking permits use of abrasive belts 1/8", 1/4" or 1/2" wide x 24" long. Work in areas as small as 3/8" diameter.
  • Motor easily adjusts to the most comfortable throttle lever position. Lightweight composite belt guard allows quick and easy belt change!
  • Hard and soft platen pads mount onto Contact Arms for heavy grinding or contour polishing.
Specifications
Air Consumption (LPM) 736
Air Consumption (SCFM) 26.0
Power (hp) 0.5
Max. RPM 20,000
Max. SFPM 5,800
Air Inlet Thread 1/4" NPT
Exhaust Type Front
GL_Country Of Origin US
Hose I.D. in. (mm) 1/4"
Sound Power dB[A] 88
Sound Level dB[A] 77
Vacuum Type Non-Vacuum
Motor Type Rotary Vane
Height in. (mm) 4.6
Length in. (mm) 14.6
Weight lb. (kg) 3.32
Width in. (mm) 5.75
Pkg. Height in. (mm) 3.25
Pkg. Length in. (mm) 16
Pkg. Weight lb. (kg) 4.1
Pkg. Width in. (mm) 5.75
CE Certified Yes
EAN (UPC) 0616026140004
EAC Certified Yes
Tool Style Straight Line
Vibration Test Method ISO 20643
Power (W) 373
Vibration (m/sec�) <2.5
What our Experts Think
  • Trusted for Precision Finishing – The Dynabrade 14000 Dynafile is ideal for grinding, deburring, blending, polishing, and surface preparation in demanding industrial environments.
  • Excellent Access to Tight Spaces – Its narrow abrasive belt design allows efficient work on corners, contours, weld seams, and other hard-to-reach areas.
  • Versatile Material Removal – Suitable for both aggressive stock removal and fine finishing, providing flexibility across a wide range of applications.
  • Superior Operator Control – Lightweight, ergonomic construction enhances maneuverability and helps reduce fatigue during extended use.
  • Built for Professional Durability – Engineered for reliable performance in fabrication shops, manufacturing facilities, and maintenance operations.
  • Consistent Surface Quality – Delivers smooth, uniform finishes that help improve productivity and reduce rework.
  • Best For: Weld blending, deburring, metal fabrication, aerospace manufacturing, automotive restoration, toolmaking, and precision surface finishing.
Q&A

Q: What is the DYNABRADE 14000 Dynafile Abrasive Belt Tool used for?
A: It is designed for precision grinding, deburring, blending, sanding, and finishing in narrow and hard-to-reach areas.

Q: Is this tool suitable for detailed finishing applications?
A: Yes, its compact belt design provides excellent control for intricate surface preparation and finishing work.

Q: What materials can the Dynafile work on?
A: It is suitable for metal, stainless steel, aluminum, composites, plastics, and other industrial materials.

Q: Can it be used in professional production environments?
A: Yes, it is ideal for fabrication, aerospace, automotive, manufacturing, and maintenance applications.

Q: How can I maintain optimal performance?
A: Keep abrasive belts properly tensioned, use clean compressed air, inspect components regularly, and replace worn belts as needed.

Maintenance Tips
  • Lubricate the air motor daily with approved pneumatic tool oil to maximize performance and durability.
  • Inspect abrasive belts regularly and replace worn, damaged, or stretched belts immediately.
  • Keep contact wheels, pulleys, and belt tracking components clean and free of dust and debris.
  • Check belt tension and alignment before each use to ensure smooth operation and consistent results.
  • Use clean, dry compressed air at the recommended pressure to prevent premature motor wear.
  • Inspect air hoses, fittings, and safety guards for leaks, damage, or excessive wear.
  • Clean the tool after each use to maintain efficiency and extend component life.
  • Store in a dry, dust-free environment and routinely inspect moving parts and fasteners for proper condition.
