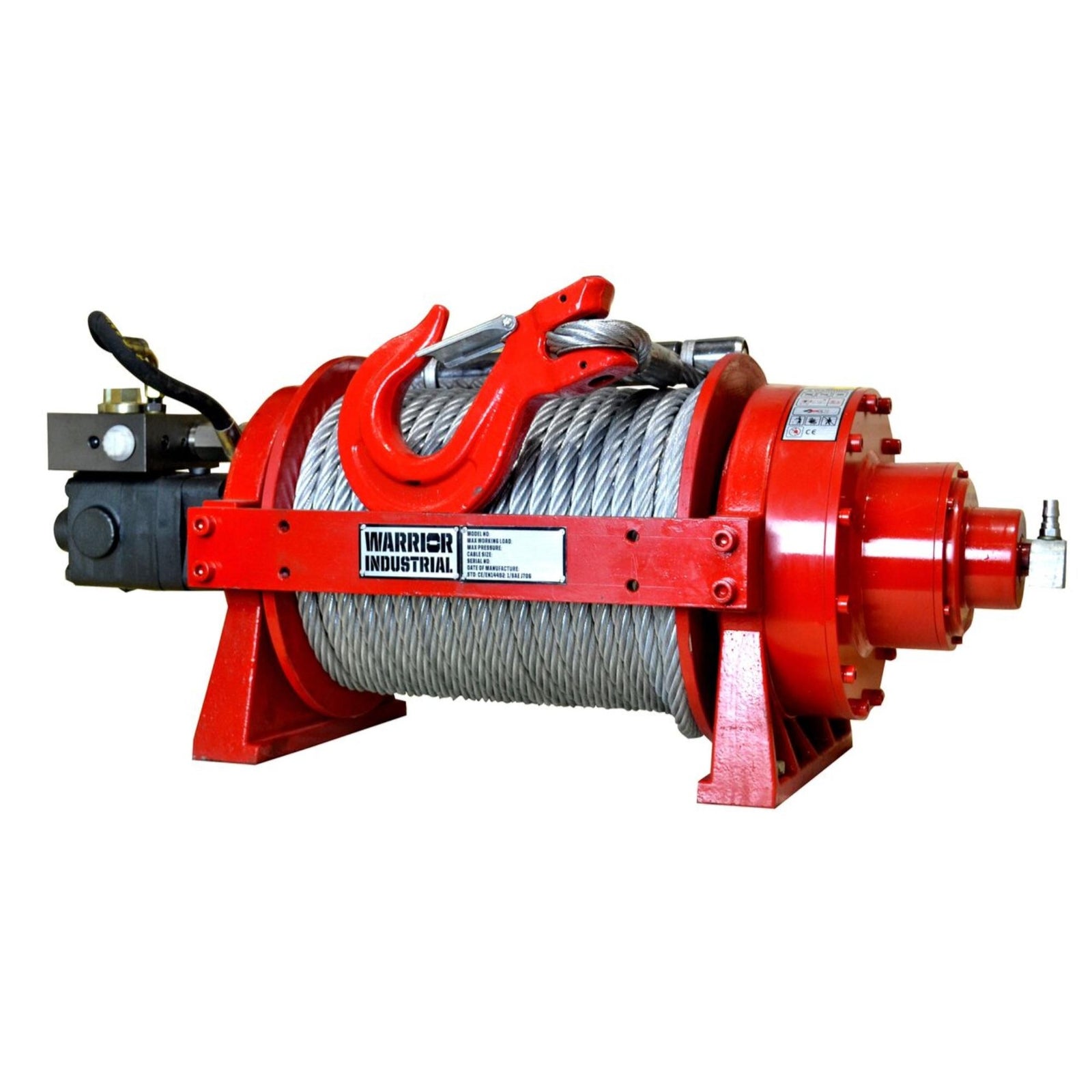

DK2 22,000LB JP Hydraulic Winch
DK2 22,000LB JP HYRDAULIC WINCH
THE JP SERIES WINCHES HAVE BEEN DEVELOPED FOR THE PROFESSIONAL OPERATOR.
BUILT SPECIFICALLY FOR MILITARY USE & ABLE TO WITHSTAND EXTREME CLIMATES AND TEMPERATURES.
These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.
Features
-
Rugged high torque motor
-
2 stage planetary gearing
-
Complete with balance valve
-
Air operated freespool
-
Rugged and compact for long life
-
Heavy duty steel cast frame
-
Rope and tensioner as standard
Specification
| ITEM NUMBER | 10TJP |
|---|---|
| RATED LINE PULL | 22000 LBS (10000 KG) |
| GEARING | 39:1 |
| BRAKING ACTION | AUTO HYDRAULIC |
| DRUM SIZE - DIAMETER x LENGTH | 138 x 316mm (5.42 x 12.44') |
| CABLE - DIAMETER x LENGTH | 15mm x 48m (0.59' x 157') |
| DIMENSIONS | 830 x 390 x 320mm (32.6 x 15.3 x 12.6') |
| MOUNTING PATTERN | 431 x 64 / 192mm (16.9 x 2.5 / 7.5') |
| WEIGHT | 165 KG (363 LBS) |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) |
|---|---|
| 1 | 22046 (10000) |
| 2 | 16889 (7661) |
| 3 | 14615 (6630) |
| 4 | 12881 (5843) |
| LINE PULL: LBS (KGS) | LINE SPEED FT/MIN (M/MIN) | FLOW L/MIN • PRESSURE MPA |
|---|---|---|
| 0 | 5.9 (1.8) | 15 • 25 |
| 4000 (1814) | 11.7 (3.6) | 30 • 42 |
| 8000 (3629) | 19.6 (6.0) | 50 • 85 |
| 15000 (6804) | 23.6 (7.2) | 60 • 140 |
| 22046 (10000) | 29.7 (9.0) | 75 • 175 |
