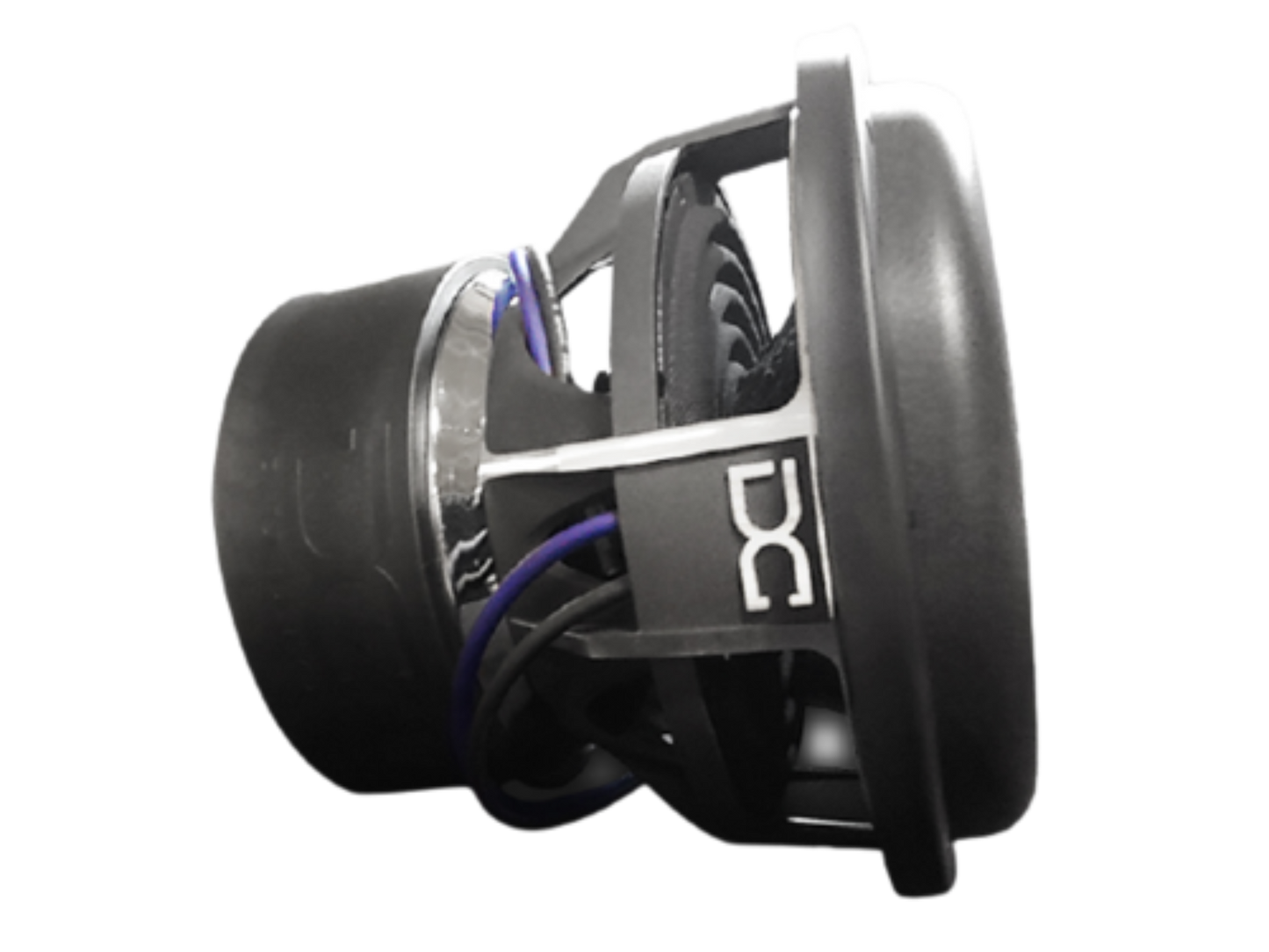

DC Audio XL Elite 18" - DCA-XLE-18-D.7
DC Audio XL Elite 18" - DCA-XLE-18-D.7
The DC Audio XL Elite 18" DCA-XLE-18-D.7 is a high-performance competition-grade subwoofer designed for powerful bass systems and extreme car audio builds. Engineered with DC Audio’s XL Elite technology, it delivers deep, controlled low-frequency output with a rugged motor structure, oversized suspension, and high-temperature voice coil. Built for serious daily systems and SPL applications, it provides exceptional durability and strong bass impact under demanding conditions.
Features
- Extremely rigid non-pressed paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- Quad 10"OD Spiders
- Dual Extra heavy duty interweaved tinsel lead wire
- Cast Heavy Duty DC Aluminum black & Grind frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- 8 Awg Direct Leads
- Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Stealth Coil
Specifications
| Sub Size | 12" | 15" | 18" |
|---|---|---|---|
| Mounting Depth | 9.75" | 11.00" | 12.00" |
| Mounting Hole Diameter | 11.15" | 14.25" | 16.90" |
| Outside Driver Diameter | 12.50" | 15.70" | 18.50" |
| Motor Width | 8.75" | 8.75" | 8.75" |
| Weight | 65lbs | 66lbs | 67lbs |
| VC Diameter | 3" | 3" | 3" |
| Displacement | .18³ ft | .20³ ft | .25³ ft |
| Magnet Weight | 54lbs | 54lbs | 54lbs |
| Power Handling RMS/Peak | 2200/4400 | 2200/4400 | 2200/4400 |
| Impedance (Ohm) | D.7/D1/D1.4/D2 | D.7/D1/D1.4/D2 | D.7/D1/D1.4/D2 |
| Sd | 494.00cm² | 791.00cm² | 1159.00cm² |
| Vas | liters | liters | liters |
| Cms | mm/N | mm/N | mm/N |
| Mms | g | 367.4 g | g |
| Fs | 32.9 | ||
| BL | 22.73 N/A | 22.73 N/A | 22.73 N/A |
| Re | 3.98 ohm | 1.8 ohm | 3.98 ohm |
| Le | mH | mH | mH |
| Qms | 6.31 | ||
| Qes | 0.37 | ||
| Qts | 0.35 | ||
| Xmax | |||
| Ref SPL @ 1 watt | dB | 90.3 dB | dB |
| Suggested Sealed | n/a | n/a | n/a |
| Suggested Ported | 1.5³ ft | 3.5³ ft | 5.5³ ft |
What Our Experts Think
- The DC Audio XL Elite 18" (DCA-XLE-18-D.7) is a high-performance competition-grade subwoofer designed for extreme bass builds and SPL applications
- Built with a powerful 3-inch 8-layer high-temperature aluminum voice coil and heavy-duty motor structure for reliable high-output performance
- Handles approximately 2200W RMS and 4400W peak power, making it ideal for serious daily systems and competition setups
- Features dual 0.7-ohm voice coils for flexible wiring options with high-power amplifiers
- Includes a rigid cone assembly, multi-layer foam surround, quad 10" spiders, CNC-machined motor assembly, and heavy-duty aluminum frame for durability
- Designed for powerful low-frequency output with recommended ported enclosure around 5.5 ft³ for maximum performance
- Ideal for SPL competitions, custom builds, and high-output daily bass systems
Q&A
Q: How much power does the DC Audio XL Elite 18 handle?
A: It handles around 2200W RMS and 4400W peak power with proper installation and tuning.
Q: What is the voice coil configuration?
A: It uses a dual 0.7-ohm voice coil configuration.
Q: Is it good for daily use?
A: Yes, when paired with the correct amplifier and enclosure, it works well for powerful daily systems and competition builds.
Q: What amplifier works best with it?
A: A high-quality amplifier delivering around 2000–2500W RMS at the correct final impedance is recommended.
Q: What enclosure is recommended?
A: A properly tuned ported enclosure is recommended for maximum bass output, with around 5.5 ft³ suggested for the 18-inch model.
Maintenance Tips
- Use a properly tuned amplifier to prevent clipping and overheating
- Monitor voltage levels during high-power operation
- Check speaker wiring and terminals regularly for secure connections
- Ensure enclosure seals and mounting hardware remain tight
- Avoid exceeding recommended RMS power limits
- Allow proper cooling during extended high-output sessions
