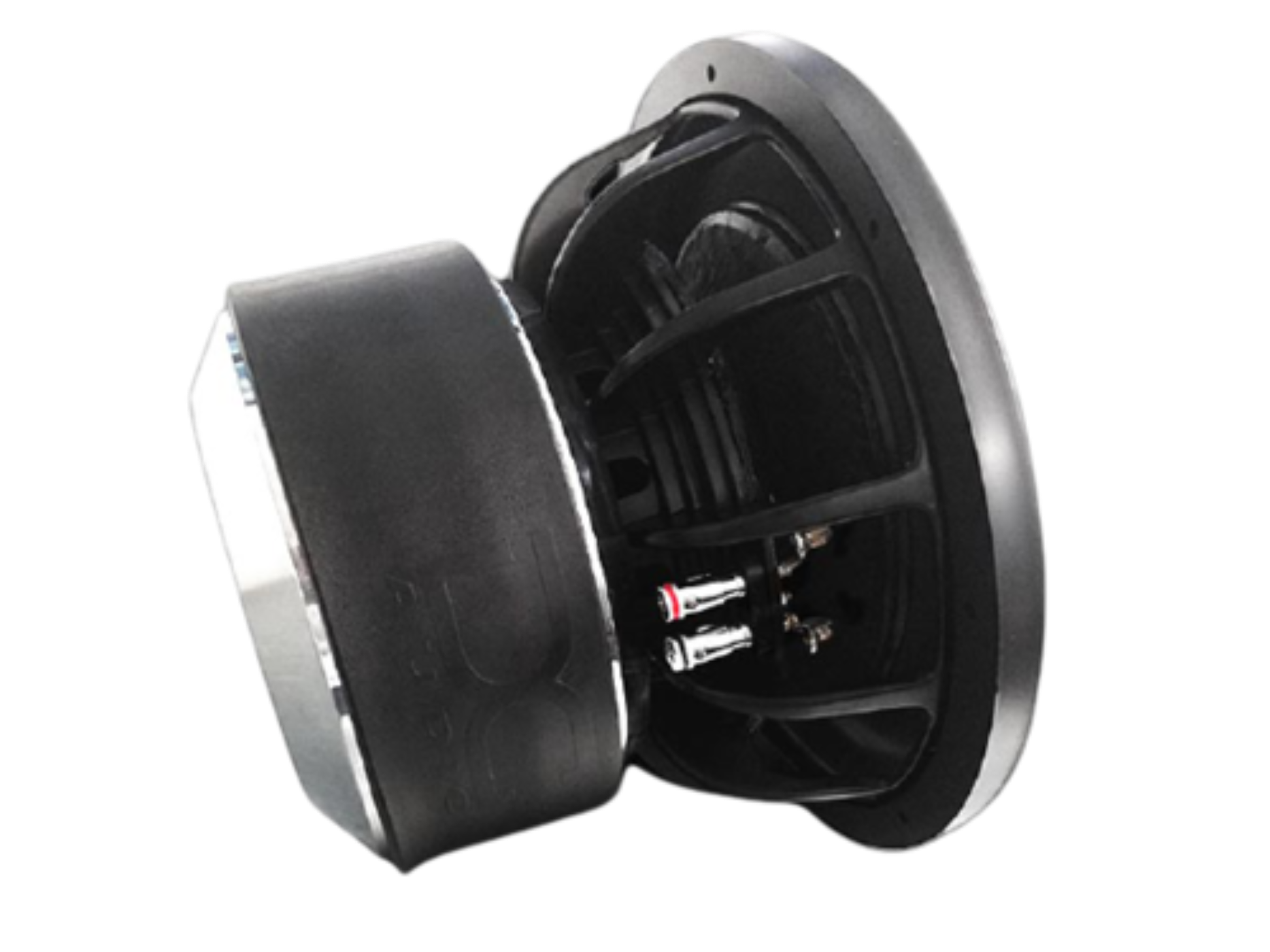

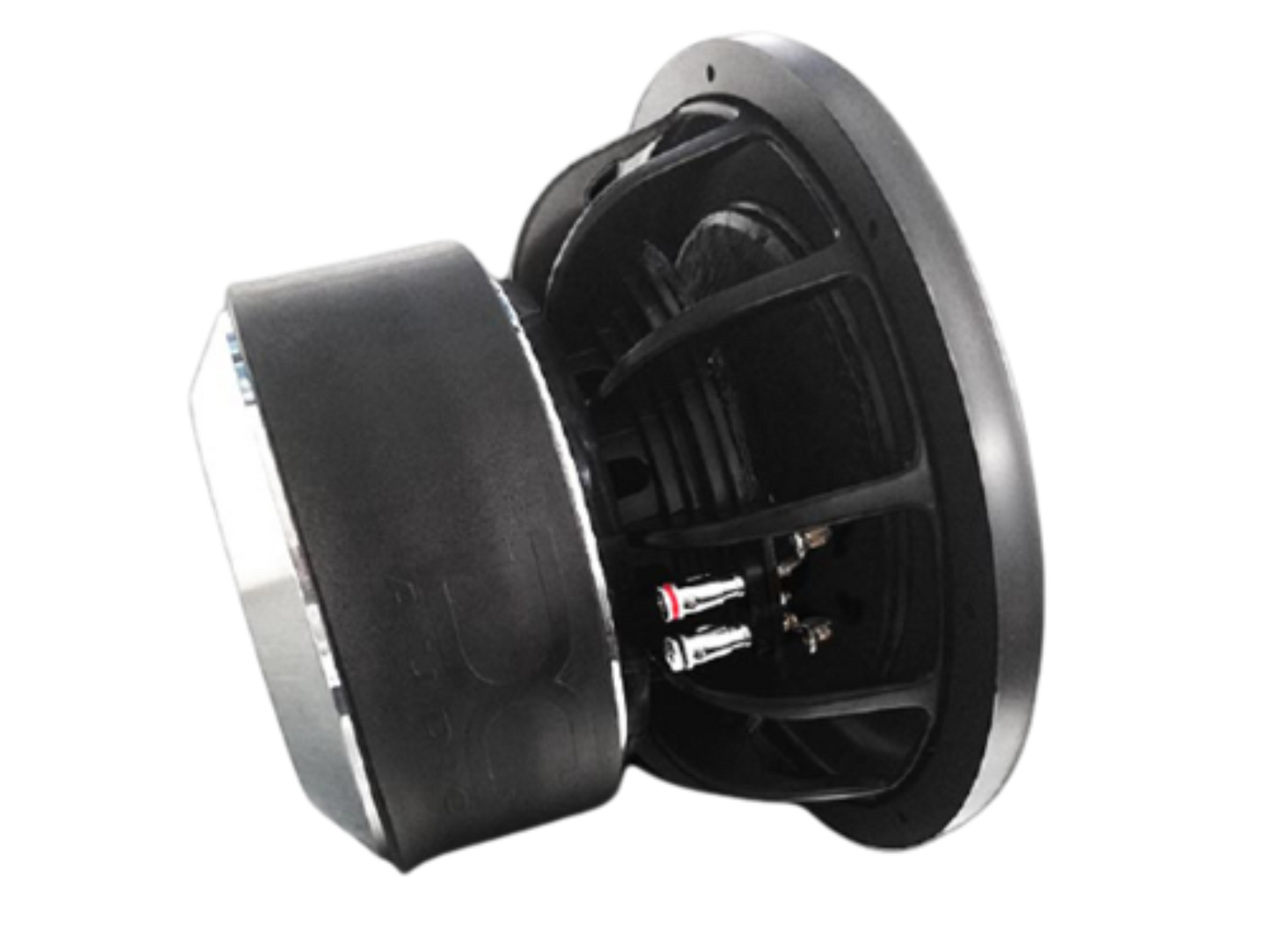

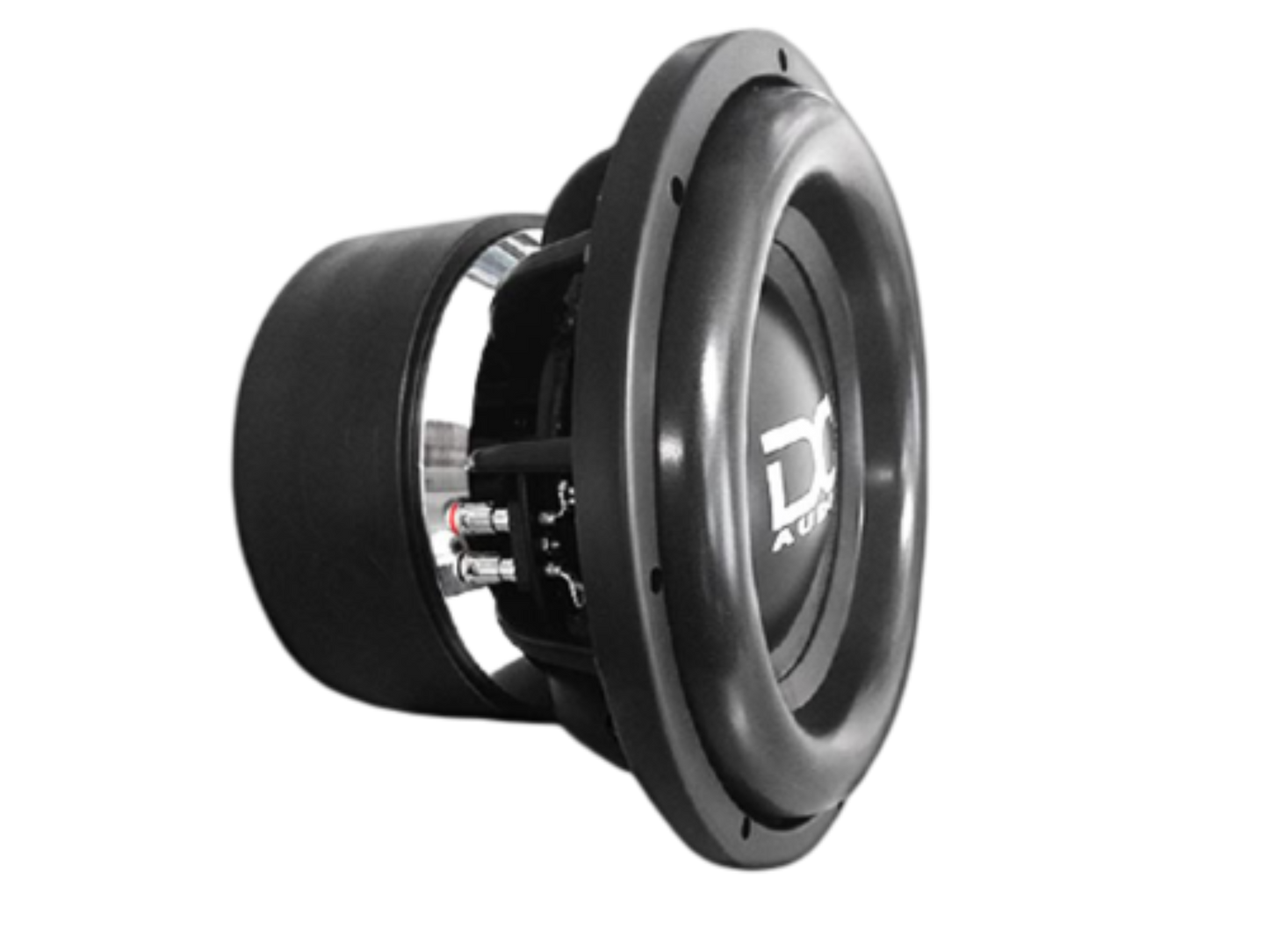

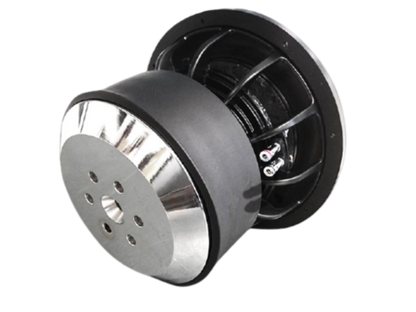

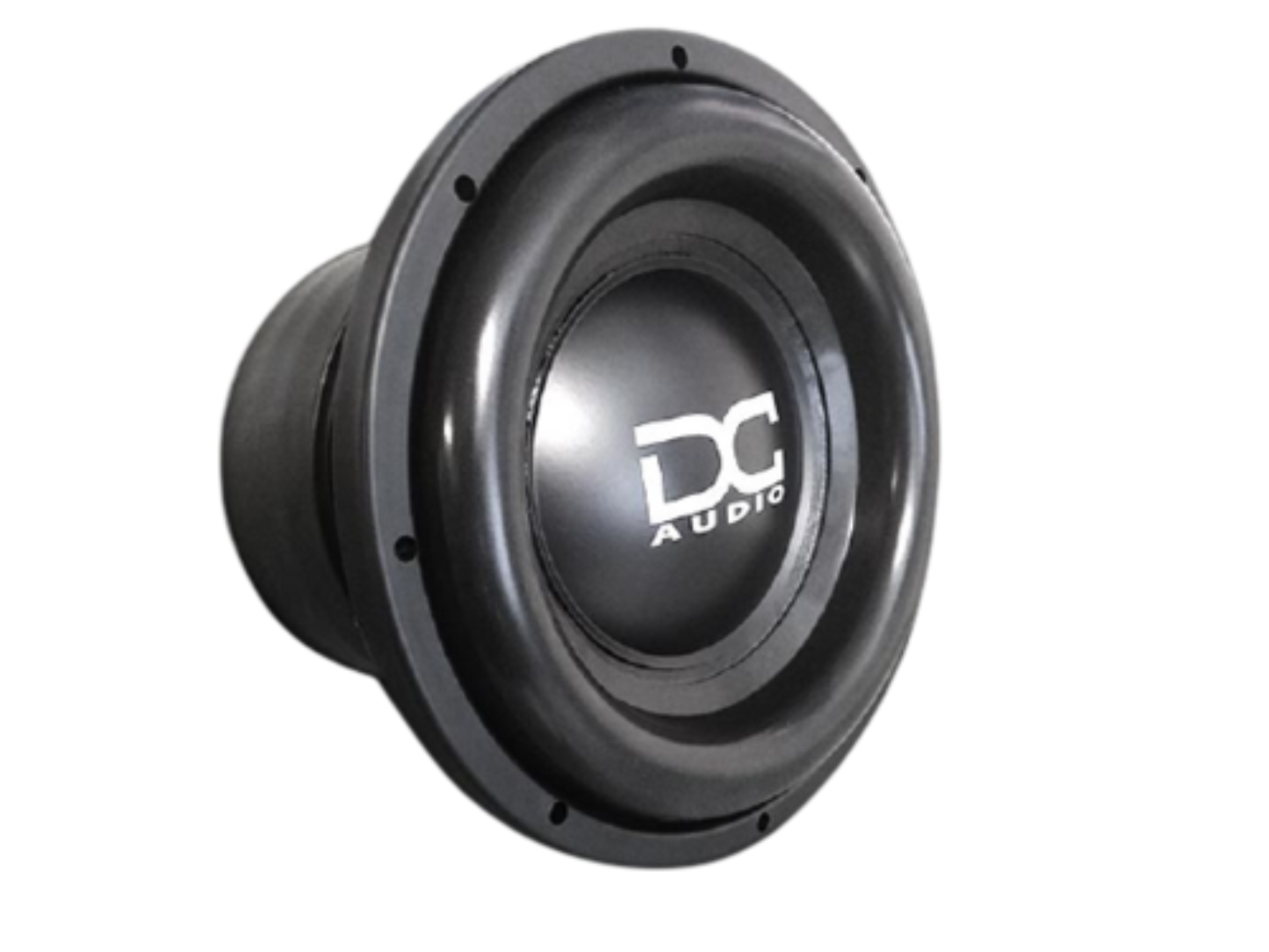

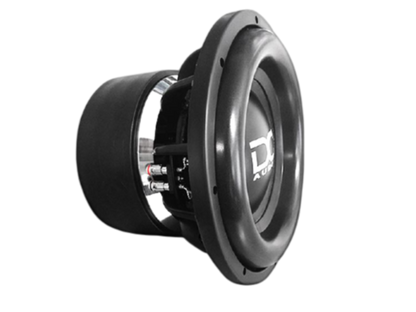

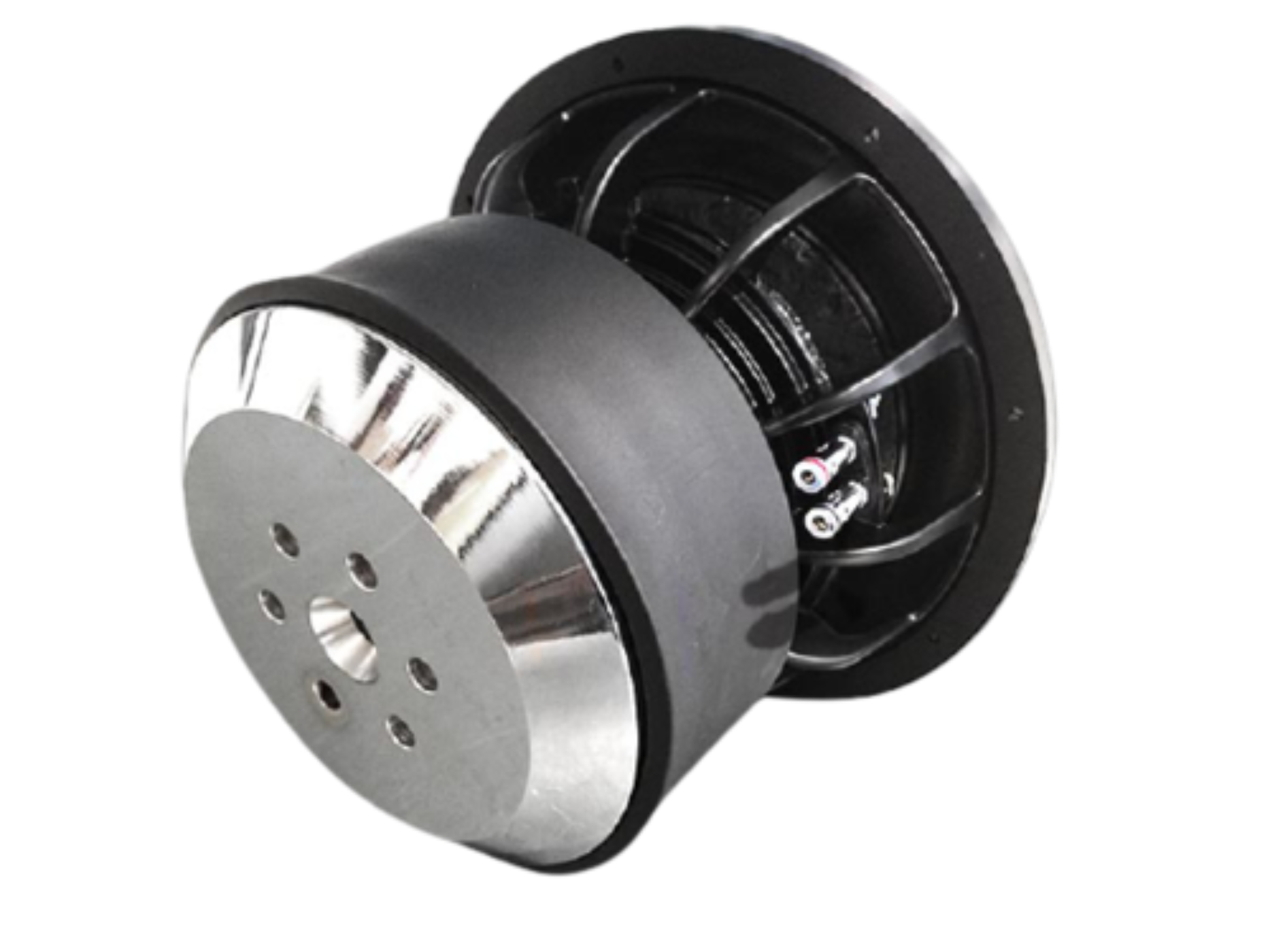

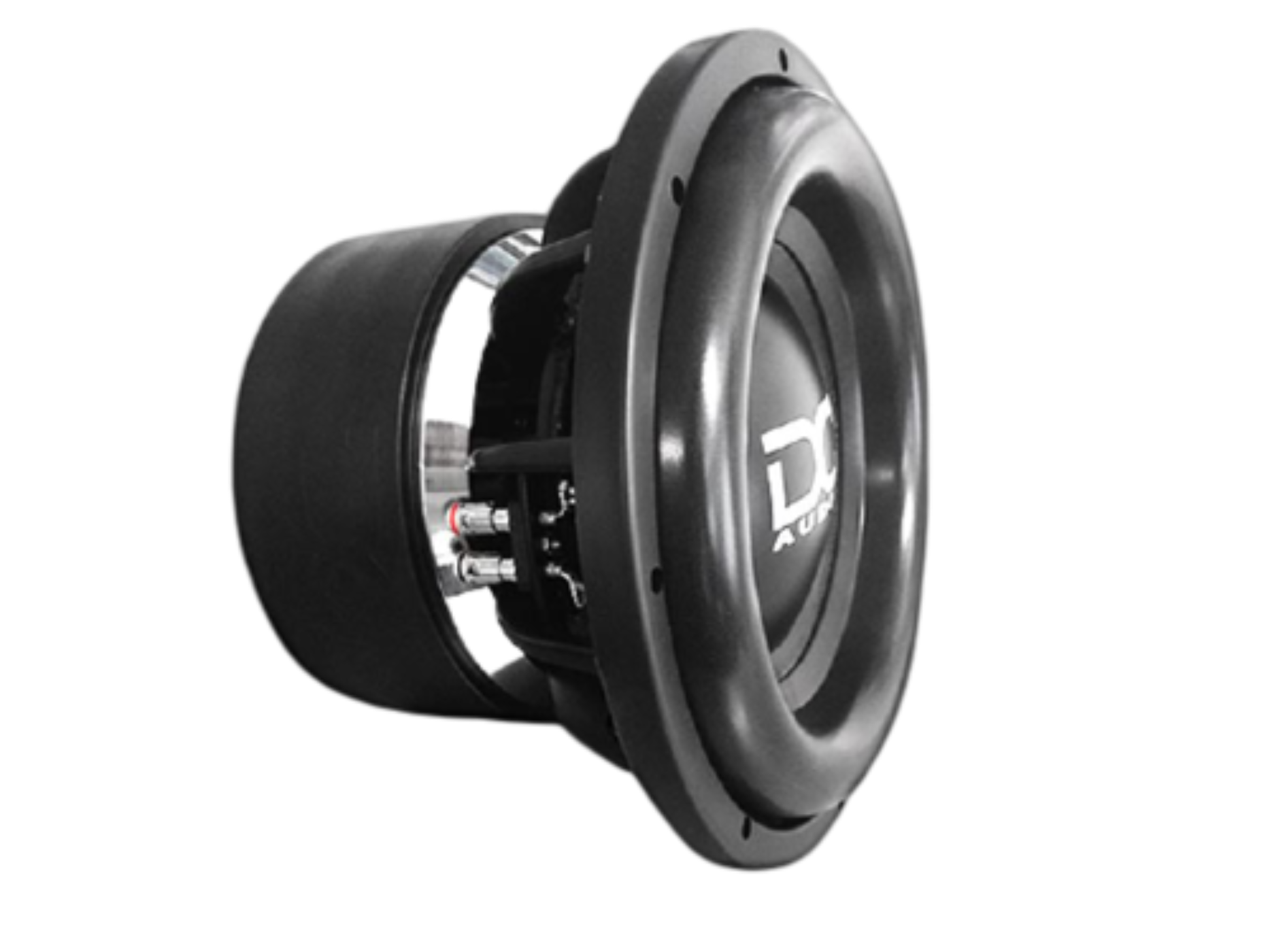

The DC Audio XL 12" DCA-XL-12-D.7 is a high-output 12-inch subwoofer built for powerful daily bass and competition-style SPL systems. It features a heavy-duty motor structure, reinforced cone assembly, and a high-temperature voice coil designed to handle extreme power while delivering deep, controlled low-frequency output. Ideal for custom car audio builds where strong bass and durability are essential.
Features
- Extremely rigid non-pressed paper cone assembly
- Multilayered polymer foam surround
- Polypropylene dust cover with DC logo
- Quad 8"OD semi cup progressive roll spiders
- Dual Extra heavy duty interweaved tinsel lead wire
- Cast aluminum black frame
- FEA analyzed and optimized motor assembly – Fully CNC machined
- Rubber mounting gasket
- Chrome spring loaded push terminals
- Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Stealth Coil
Specifications
| Sub Size | 10" | 12" | 15" | 18" |
|---|---|---|---|---|
| Mounting Depth | 8.25" | 9.0" | 10.25" | 11.25" |
| Mounting Hole Diameter | 9.25" | 11" | 14" | 16.75" |
| Outside Driver Diameter | 11.0" | 12.5" | 15.7" | 18.5" |
| Motor Width | 8.75" | 8.75" | 8.75" | 8.75" |
| Weight | 56lbs | 57lbs | 59lbs | 60lbs |
| VC Diameter | 3" | 3" | 3" | 3" |
| Displacement | .18³ ft | .19³ ft | .23³ ft | .26³ ft |
| Magnet Weight | 50lbs | 50lbs | 50lbs | 50lbs |
| Power Handling RMS/Peak | 2200 / 4400 | 2200 / 4400 | 2200 / 4400 | 2200 / 4400 |
| Impedance (Ohm) | D.7/D1/ D1.4/D2 | D.7/D1/ D1.4/D2 | D.7/D1/ D1.4/D2 | D.7/D1/ D1.4/D2 |
| Sd | 314.00 cm² | 494.00 cm² | 791.00 cm² | 1159.00 cm² |
| Vas | 12.42 liters | 25.77 liters | 66.02 liters | 144.36 liters |
| Cms | 0.085 mm/N | 0.08 mm/N | 0.07 mm/N | 0.07 mm/N |
| Mms | 171.77 g | 213.7g | 306.7 g | 346.7 g |
| Fs | 41.7 | 38.5 | 34.3 | 32.3 |
| BL | BL 22.73 N/A | 22.73 N/A | 22.73 N/A | 22.73 N/A |
| Re | 3.98 Ohm | 3.98 Ohm | 3.98 Ohm | 3.98 Ohm |
| Le | 5.2mH | 5.2mH | 5.2mH | 5.2mH |
| Qms | 11.24 | 12.92 | 16.55 | 17.6 |
| Qes | 0.35 | 0.403 | 0.516 | 0.548 |
| Qts | 0.34 | 0.391 | 0.5 | 0.532 |
| Xmax | 26 mm | 26 mm | 26 mm | 26 mm |
| Ref SPL @ 1 watt | 85.9 dB | 87.5 dB | 89.0 dB | 91.3 dB |
| Suggested Sealed | N/A | N/A | N/A | N/A |
| Suggested Ported | 1.0³ ft | 1.5³ ft | 3.0³ ft | 5.5³ ft |
What Our Experts Think
- The DC Audio XL 12" (DCA-XL-12-D.7) is a high-performance 12-inch subwoofer built for SPL competition and powerful daily bass systems
- Rated at approximately 2200W RMS / 4400W peak power handling, delivering deep, controlled low-frequency output when properly powered
- Features a dual 0.7-ohm voice coil configuration for flexible wiring options with high-power monoblock amplifiers
- Built with a 3-inch high-temperature aluminum voice coil, reinforced cone assembly, and heavy-duty suspension system for durability under extreme excursion
- Uses a cast aluminum frame and CNC-optimized motor structure for strong mechanical stability and consistent performance
- Designed for ported enclosures (optimized around ~1.5 ft³) for maximum bass output and efficiency
- Ideal for competition builds, loud daily systems, and high-output custom audio installations
Q&A
Q: How much power does the DC Audio XL 12 handle?
A: It handles around 2200W RMS and 4400W peak power with proper tuning and installation.
Q: What is the voice coil configuration?
A: It uses a dual 0.7-ohm voice coil setup, allowing flexible wiring options.
Q: Is it good for daily use?
A: Yes, it works well for daily systems when properly matched with a clean, stable amplifier.
Q: What amplifier works best with it?
A: A high-power amplifier delivering around 1800–2200W RMS at the correct final impedance is ideal.
Q: What enclosure is recommended?
A: A properly tuned ported box around 1.5 cubic feet is recommended for strong bass output and efficiency.
Maintenance Tips
- Avoid clipping by properly setting amplifier gain
- Maintain stable voltage during heavy bass use
- Ensure enclosure is properly sealed and securely mounted
- Check wiring and terminals regularly for tight connections
- Keep subwoofer break-in period gentle before full power use
- Avoid exceeding RMS rating to protect voice coil longevity
