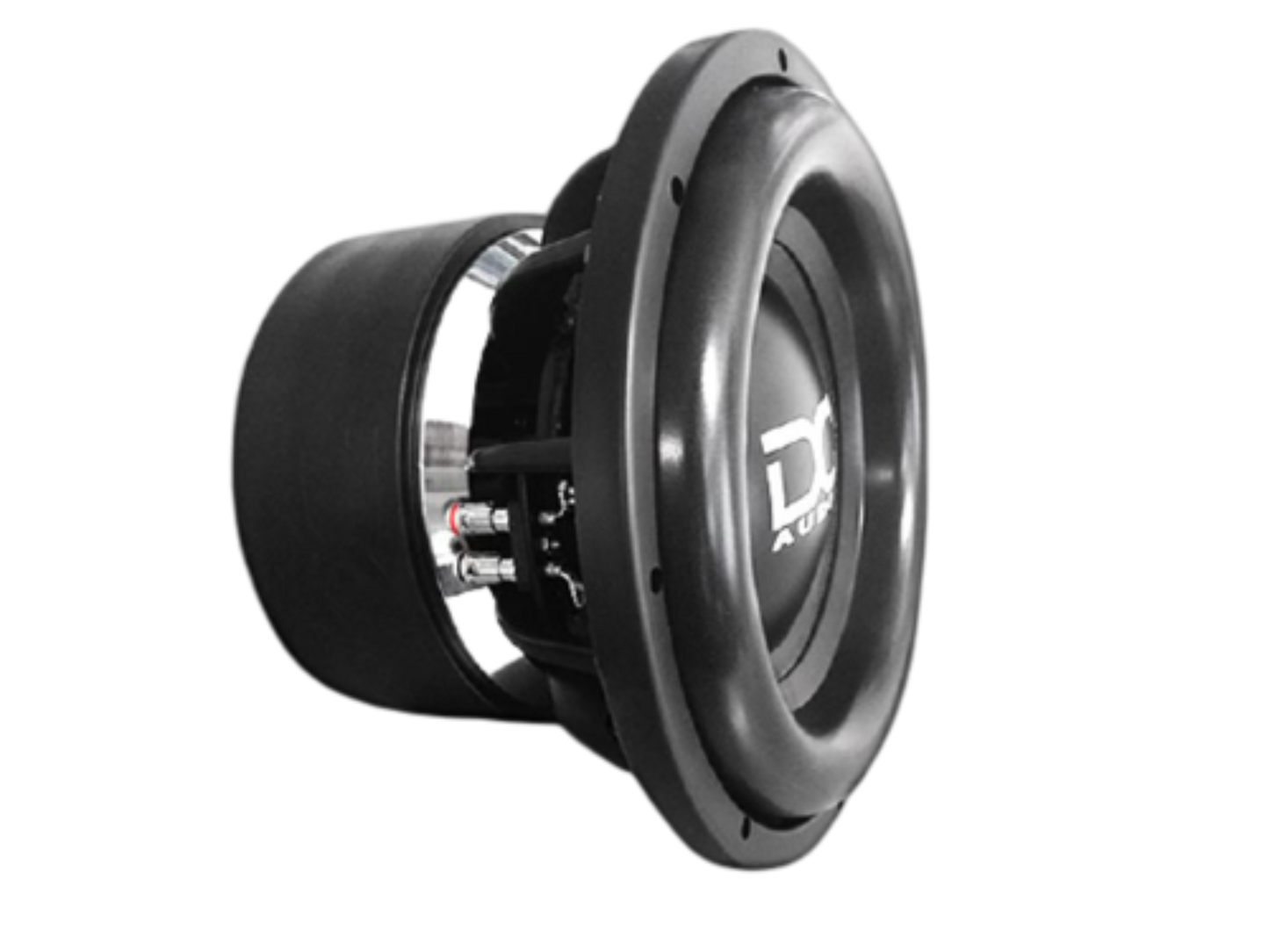

DC Audio XL 10" - DCA-XL-10-D1

DC Audio XL 10" - DCA-XL-10-D1

$506.99
$506.99 $674.99
SAVE 24% Sold out
DC Audio XL 10" - DCA-XL-10-D1

DC Audio XL 10" - DCA-XL-10-D1

$506.99
$506.99 $674.99
SAVE 24% Sold out

 DC Audio XL 10" - DCA-XL-10-D1

The DC Audio XL 10" DCA-XL-10-D1 is a high-output 10-inch subwoofer built for powerful daily bass and competition-style car audio systems. Designed with a heavy-duty motor structure, reinforced cone assembly, and a high-temperature voice coil, it delivers deep, controlled low-frequency performance while handling extreme power levels. It is ideal for compact high-performance builds that demand strong bass output and durability.

Features
  •  Extremely rigid non-pressed paper cone assembly
  •  Multilayered polymer foam surround
  •  Polypropylene dust cover with DC logo
  •  Quad 8"OD semi cup progressive roll spiders
  •  Dual Extra heavy duty interweaved tinsel lead wire
  •  Cast aluminum black frame
  •  FEA analyzed and optimized motor assembly – Fully CNC machined
  •  Rubber mounting gasket
  •  Chrome spring loaded push terminals
  •  Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Stealth Coil
Specifications
Sub Size 10" 12" 15" 18"
Mounting Depth 8.25" 9.0" 10.25" 11.25"
Mounting Hole Diameter 9.25" 11" 14" 16.75"
Outside Driver Diameter 11.0" 12.5" 15.7" 18.5"
Motor Width 8.75" 8.75" 8.75" 8.75"
Weight 56lbs 57lbs 59lbs 60lbs
VC Diameter 3" 3" 3" 3"
Displacement .18³ ft .19³ ft .23³ ft .26³ ft
Magnet Weight 50lbs 50lbs 50lbs 50lbs
Power Handling RMS/Peak 2200 / 4400 2200 / 4400 2200 / 4400 2200 / 4400
Impedance (Ohm) D.7/D1/ D1.4/D2 D.7/D1/ D1.4/D2 D.7/D1/ D1.4/D2 D.7/D1/ D1.4/D2
Sd 314.00 cm² 494.00 cm² 791.00 cm² 1159.00 cm²
Vas 12.42 liters 25.77 liters 66.02 liters 144.36 liters
Cms 0.085 mm/N 0.08 mm/N 0.07 mm/N 0.07 mm/N
Mms 171.77 g 213.7g 306.7 g 346.7 g
Fs 41.7 38.5 34.3 32.3
BL BL 22.73 N/A 22.73 N/A 22.73 N/A 22.73 N/A
Re 3.98 Ohm 3.98 Ohm 3.98 Ohm 3.98 Ohm
Le 5.2mH 5.2mH 5.2mH 5.2mH
Qms 11.24 12.92 16.55 17.6
Qes 0.35 0.403 0.516 0.548
Qts 0.34 0.391 0.5 0.532
Xmax 26 mm 26 mm 26 mm 26 mm
Ref SPL @ 1 watt 85.9 dB 87.5 dB 89.0 dB 91.3 dB
Suggested Sealed N/A N/A N/A N/A
Suggested Ported 1.0³ ft 1.5³ ft 3.0³ ft 5.5³ ft



What Our Experts Think
  • The DC Audio XL 10" (DCA-XL-10-D1) is a high-performance 10-inch competition subwoofer designed for SPL builds and powerful daily bass systems
  • Rated at approximately 2200W RMS / 4400W peak power handling for strong low-frequency output and durability under heavy load
  • Features a dual 1-ohm voice coil configuration for flexible wiring options with high-power monoblock amplifiers
  • Built with a 3-inch high-temperature aluminum voice coil, reinforced cone, heavy-duty suspension, and cast aluminum frame for long-term reliability
  • Optimized for ported enclosure designs (~1.0 ft³ recommended) for maximum bass output and efficiency
  • Strong motor force and long-excursion design make it ideal for loud daily setups and competition SPL systems
  • Works best in properly tuned systems with clean power delivery and stable electrical support
Q&A

Q: How much power does the DC Audio XL 10 handle?
A: It handles about 2200W RMS and 4400W peak power with proper tuning and installation.

Q: What is the voice coil configuration?
A: It uses a dual 1-ohm voice coil setup, allowing flexible wiring options.

Q: Is it good for daily use?
A: Yes, it can be used daily in properly tuned systems with a clean amplifier signal.

Q: What amplifier works best with it?
A: A high-power amplifier delivering around 1800–2200W RMS at the correct final impedance is ideal.

Q: What enclosure is recommended?
A: A ported box around ~1.0 cubic foot is typically recommended for strong output.

Maintenance Tips
  • Avoid amplifier clipping to protect the voice coil
  • Maintain stable voltage under heavy bass load
  • Ensure enclosure is properly sealed and securely mounted
  • Allow a break-in period before full power use
  • Regularly check wiring and terminals for tight connections
  • Avoid exceeding RMS power rating for long-term reliability
