DC Audio Level 5 12" - DCA-LVL5-12-D.7

Name: DC Audio Level 5 12" - DCA-LVL5-12-D.7
Brand: Dc Sound lab
SKU: DCA-LVL5-12-D.7
Price: 791.99 USD
Availability: InStock

$791.99

$791.99 ~~$1,054.99~~

SAVE 24% Sold out

IMPEDANCE OPTIONS - Dual .7 Ohm

Dual .7 Ohm Dual 1 ohm Dual 1.4 Ohm Dual 2 Ohm

Product variants

DC Audio Level 5 12" - DCA-LVL5-12-D.7

$791.99

$791.99 ~~$1,054.99~~

SAVE 24% Sold out

DC Audio Level 5 12" - DCA-LVL5-12-D.7

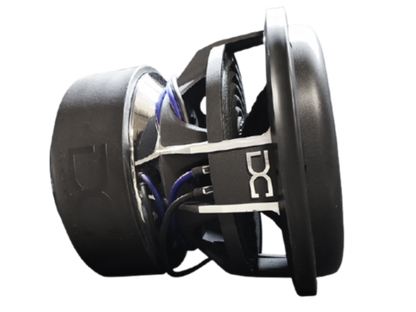

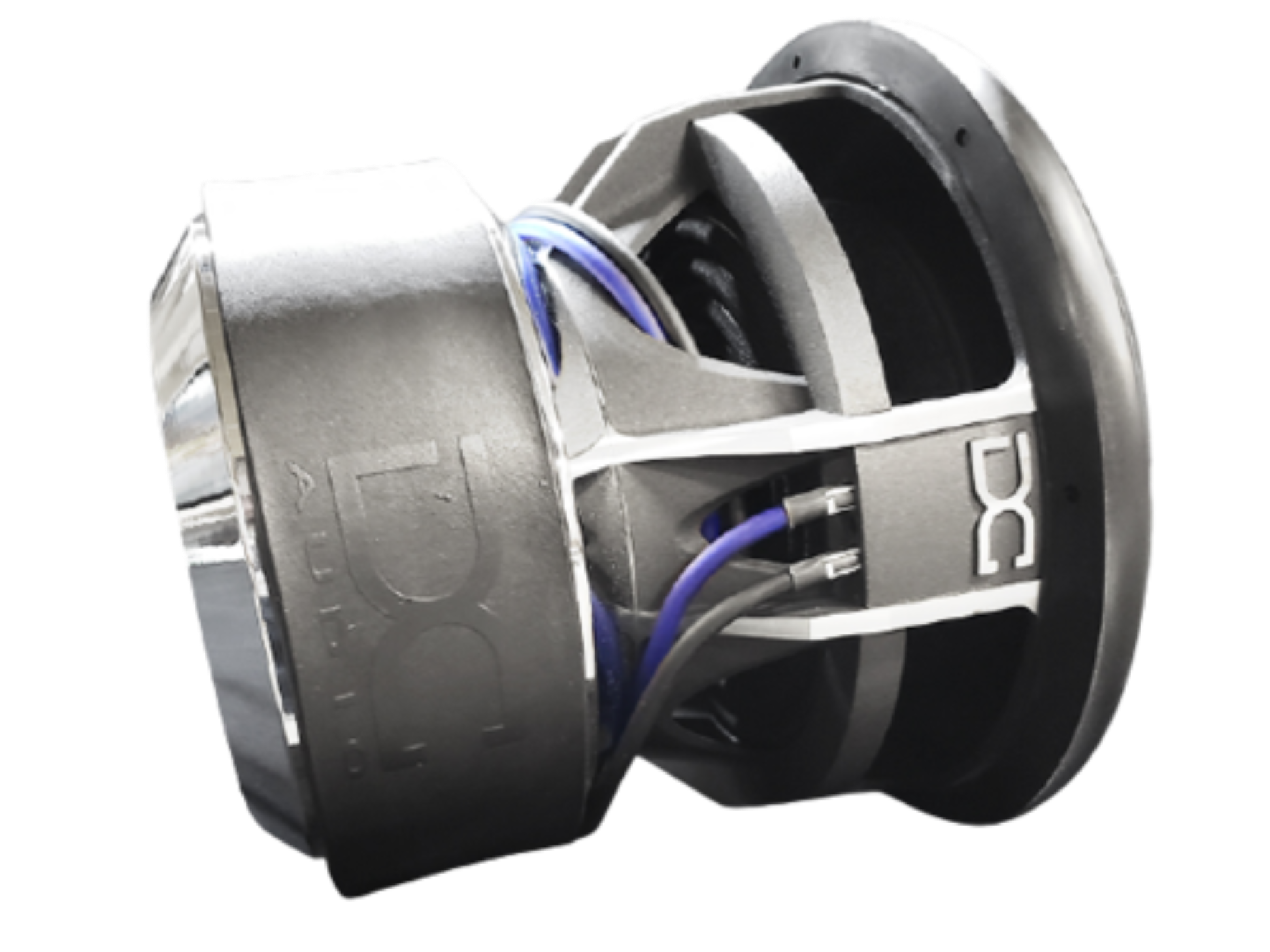

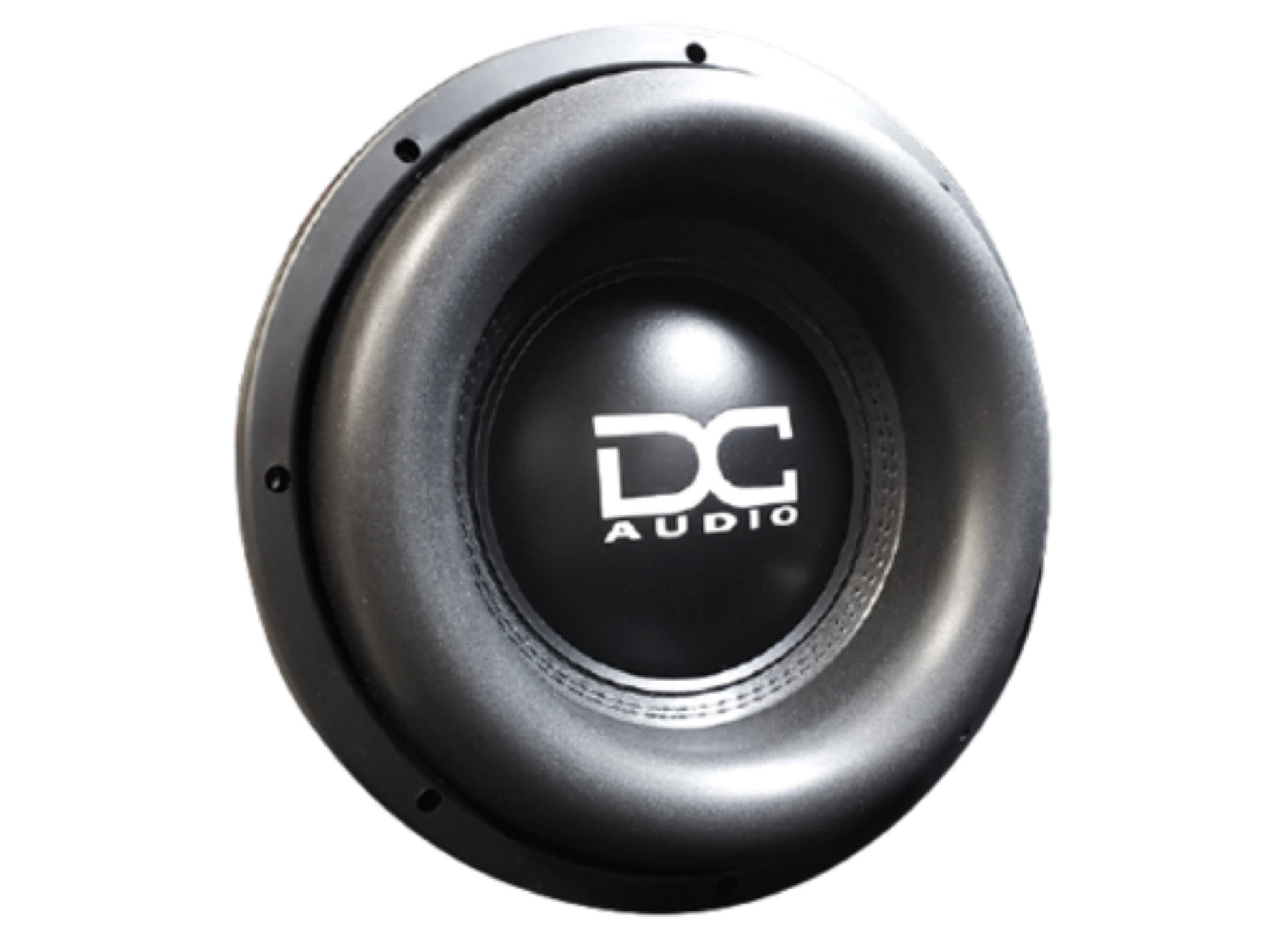

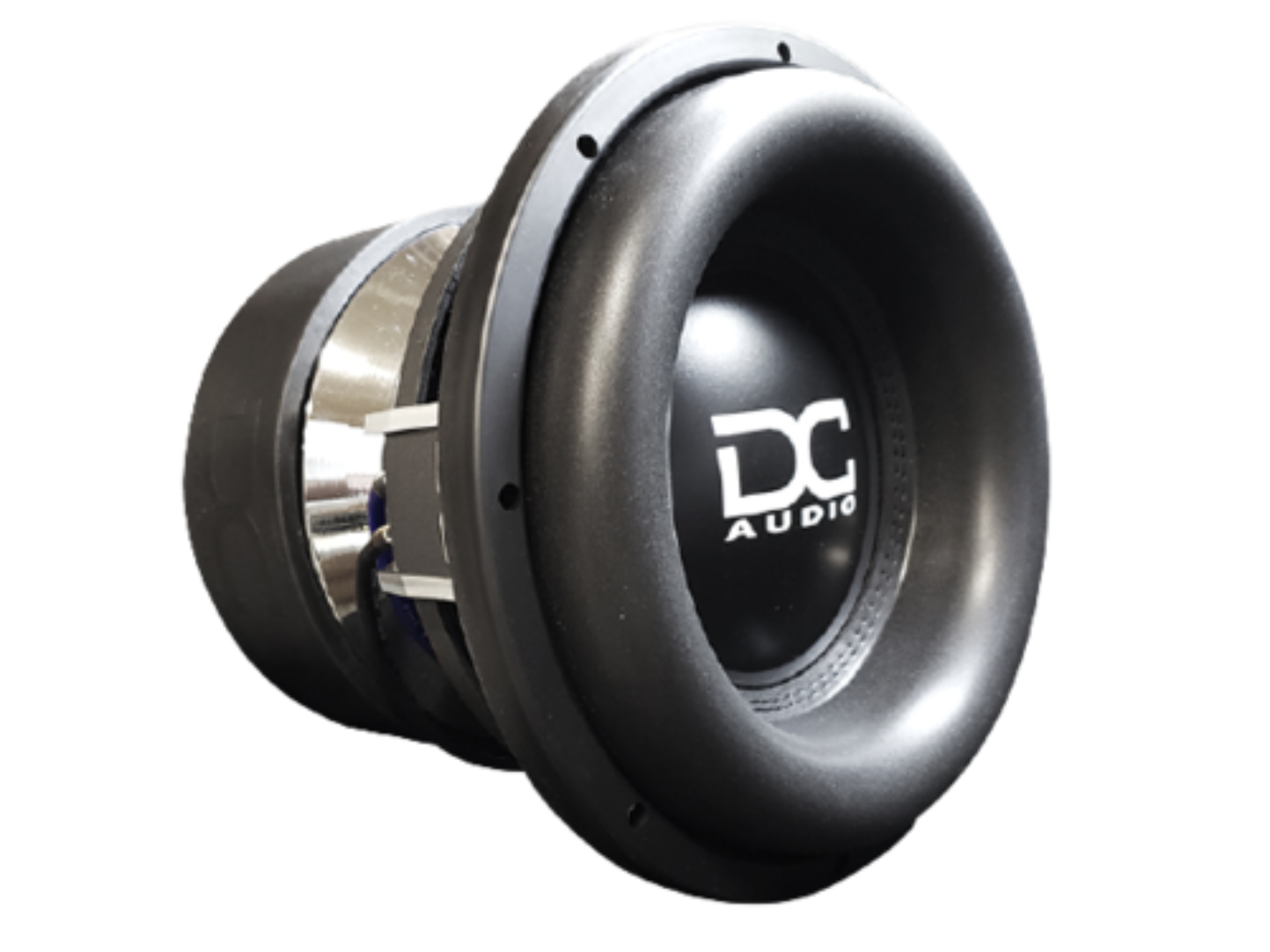

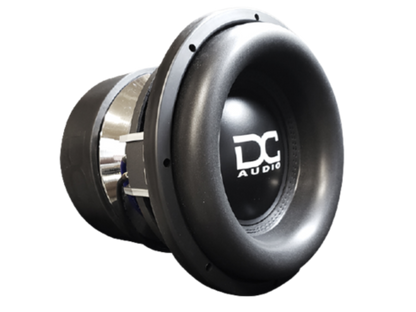

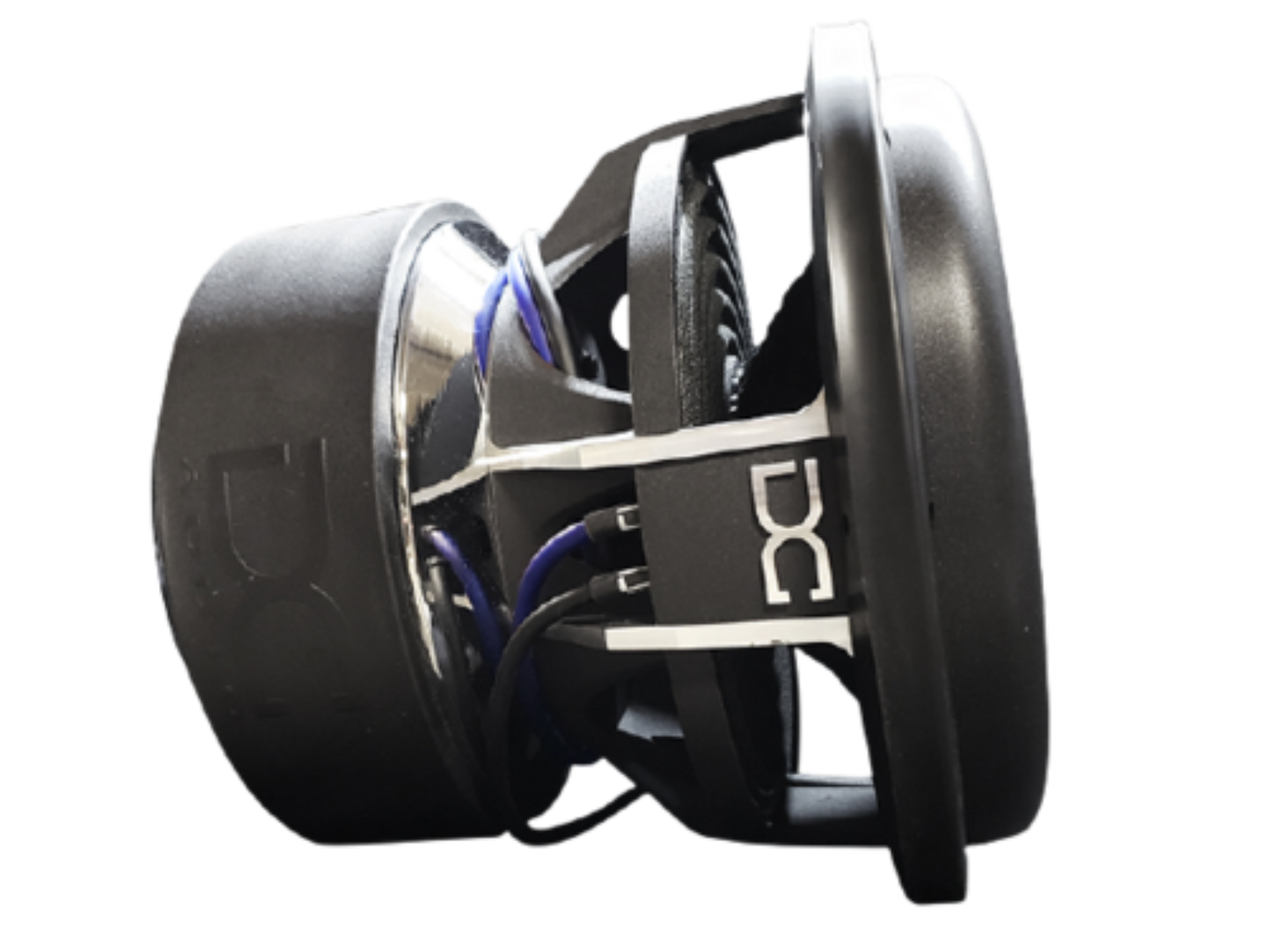

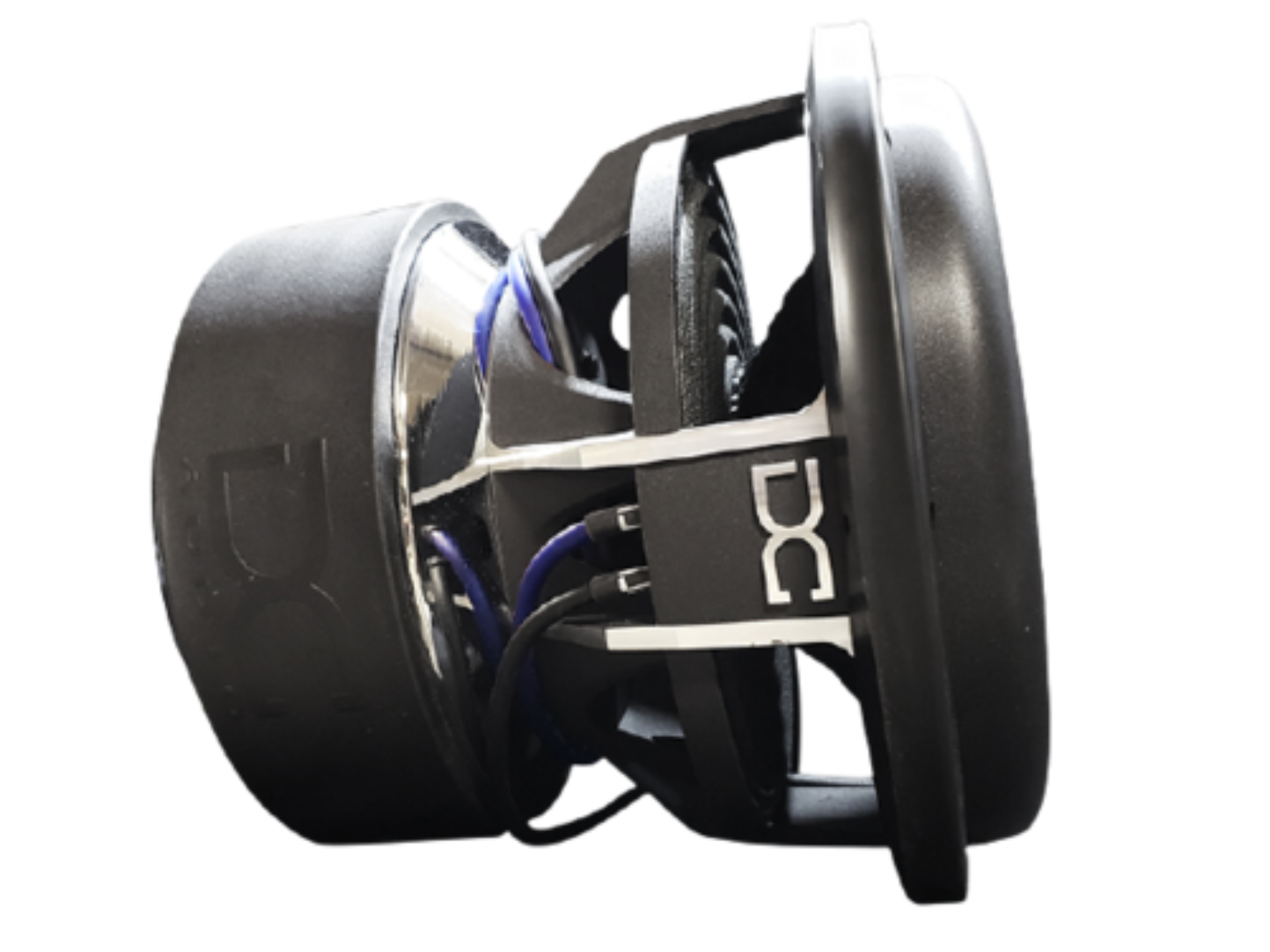

The DC Audio Level 5 12" DCA-LVL5-12-D.7 is a competition-grade high-performance subwoofer engineered for extreme bass output and powerful car audio systems. Designed for SPL builds and serious daily setups, it delivers deep, controlled low-frequency response with a rugged motor assembly, high-temperature voice coil, and reinforced cone construction. Built to handle demanding power levels, this 12-inch subwoofer provides the strength and durability needed for high-output bass applications.

Features

Extremely strong kraft pulp fiber reinforced cone
Wide Long Throw foam surround
Dome propylene dust cover with White DC logo
10” OD Spaced Spiders
Extra heavy duty sewn tinsel lead wire
Cast DC Series aluminum black frame 15”/18”
FEA analyzed and optimized motor assembly – Fully CNC machined
Rubber mounting gasket
Direct Leads
DVC 3.5” 8 Layer Hi-temp Aluminum voice coil wound on a Black Anodized Aluminum voice coil former with high current input strips.

Specifications

Sub Size	12"	15"	18"
Mounting Depth	10.50"	11.75"	12.75"
Mounting Hole Diameter	11.15"	14.25"	16.90"
Outside Driver Diameter	12.50"	15.70"	18.50"
Motor Width	9.84"	9.84"	9.84"
Shipping Weight	89lbs	95lbs	107lbs
VC Diameter	3.50"	3.50"	3.50"
Displacement	.19³ ft	.21³ ft	.26³ ft
Magnet Weight	79.5lbs	79.5lbs	79.5lbs
Power Handling RMS/Peak	3000 / 6000	3500 / 7000	3500 / 7000
Impedance (Ohm)	D.7 / D1 / D1.4 / D2	D.7 / D1 / D1.4 / D2	D.7 / D1 / D1.4 / D2
Sd	494.00 cm²	815.00 cm²	1217.00 cm²
Vas	Coming Soon	Coming Soon	Coming Soon
Cms	Coming Soon	Coming Soon	Coming Soon
Mms	Coming Soon	Coming Soon	Coming Soon
Fs	Coming Soon	Coming Soon	Coming Soon
BL	Coming Soon	Coming Soon	Coming Soon
Re	Coming Soon	Coming Soon	Coming Soon
Le	Coming Soon	Coming Soon	Coming Soon
Qms	Coming Soon	Coming Soon	Coming Soon
Qes	Coming Soon	Coming Soon	Coming Soon
Qts	Coming Soon	Coming Soon	Coming Soon
Xmax	Coming Soon	Coming Soon	Coming Soon
Ref SPL @ 1 watt	Coming Soon	Coming Soon	Coming Soon
Suggested Sealed	N/A	N/A	N/A
Suggested Ported	1.5³ ft	3.0³ ft	5.5³ ft

What Our Experts Think

The DC Audio Level 5 12" (DCA-LVL5-12-D.7) is a competition-grade high-output subwoofer built for extreme bass systems and SPL applications
Handles up to 3500W RMS and 7000W peak power for serious daily and competition-level builds
Features a dual 0.7-ohm voice coil configuration for flexible high-power amplifier matching
Built with a reinforced Kraft pulp cone, wide long-throw foam surround, and 3.5" high-temperature aluminum voice coil for durability under heavy power
CNC-machined motor assembly and heavy-duty components provide strong motor force and reliable performance during extreme use
Recommended for ported enclosures around 1.5 ft³ for optimized low-frequency output and efficiency
Ideal for custom SPL builds, competition vehicles, and high-output daily bass systems

Q&A

Q: How much power does the DC Audio Level 5 12" handle?
A: It handles approximately 3500W RMS and 7000W peak power depending on setup.

Q: What is the voice coil configuration?
A: It uses a dual 0.7-ohm voice coil design.

Q: Is it good for daily use?
A: Yes, when properly installed and tuned, it can be used for powerful daily systems as well as competition builds.

Q: What amplifier works best with it?
A: A high-power amplifier capable of delivering around 3000–3500W RMS at the correct final impedance is recommended.

Q: What enclosure is recommended?
A: A properly tuned ported enclosure is recommended for maximum bass output.
