Samlex Solar Power Inverter Installation Kit Use To - S6ADC3500KIT

Samlex Solar Power Inverter Installation Kit Use To - S6ADC3500KIT

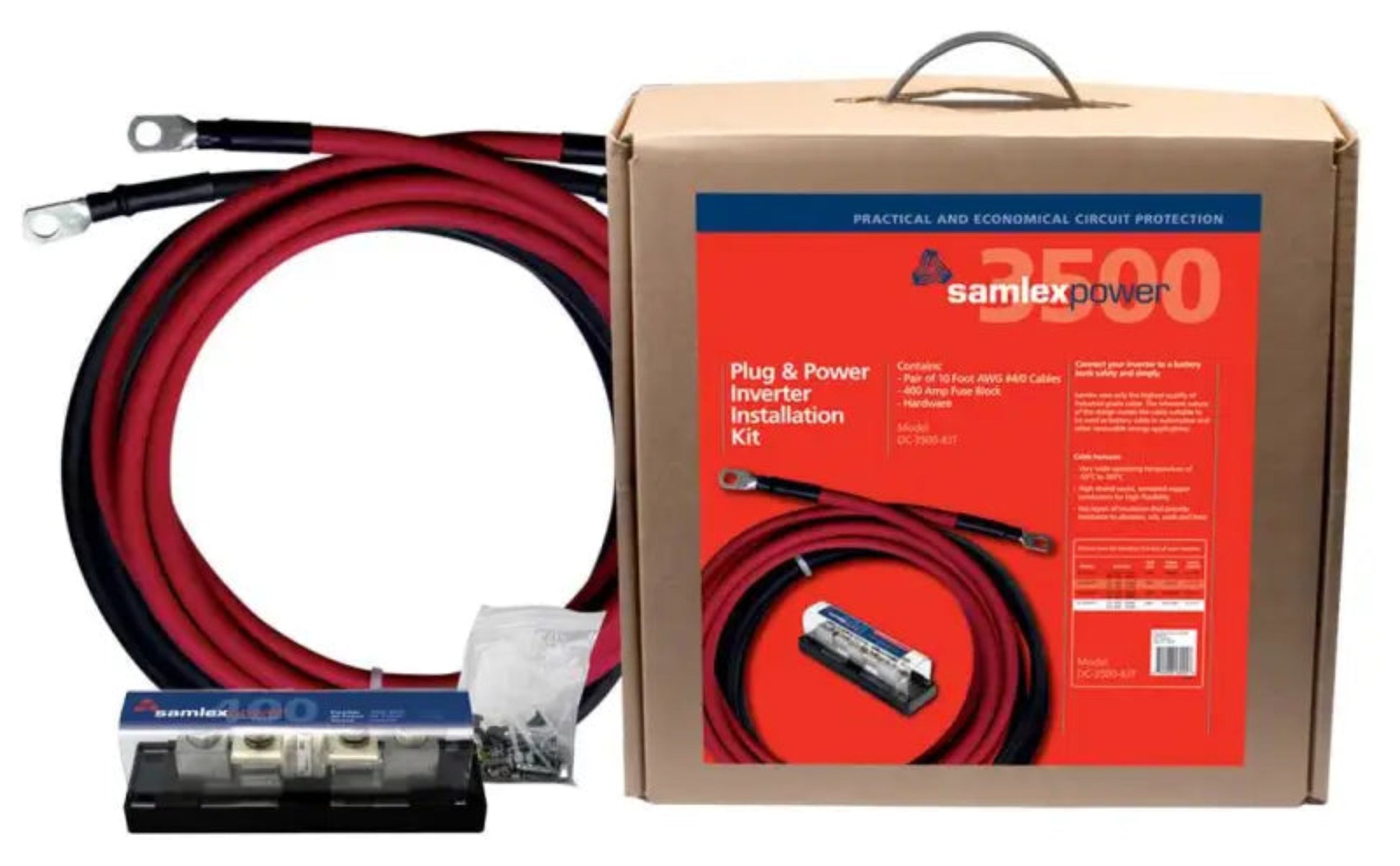

Elevate your solar power setup with the DC-3500-KIT Samlex Solar Power Inverter Installation Kit, specially designed for seamless installation of your inverter system. This comprehensive kit includes everything you need to ensure a reliable and efficient connection between your inverter and battery bank.

Features

• Heavy Duty Cables: Constructed to withstand high loads, these cables are perfect for connecting your inverter directly to the battery bank, ensuring optimal performance.
• Safety Fuse Assembly: Protect your valuable equipment with a built-in fuse that safeguards against potential battery short-circuits, providing peace of mind during operation.
• Plug and Play Connection: Enjoy the convenience of an easy installation process, allowing you to quickly set up your inverter without hassle.
• Versatile Compatibility: Ideal for 12 Volt inverters ranging from 2500 to 3500 Watts and 24 Volt inverters between 5000 to 7000 Watts, making it a versatile choice for various solar power systems.
• Included Hardware: The kit comes complete with all necessary hardware, ensuring you have everything you need right at your fingertips.

What our Experts Think

• Complete high-capacity installation solution – Designed to safely connect a 12V inverter system to a battery bank using heavy-duty cabling, fuse protection, and mounting hardware for reliable power transfer.
• Engineered for high-power inverters – Built to support large inverter setups (typically up to 2500–3500W), making it suitable for RVs, off-grid solar systems, and backup power installations.
• Heavy-duty copper cabling for efficiency – Includes thick, flexible battery cables (commonly AWG #4/0) to minimize voltage drop and maintain stable power delivery under high load conditions.
• Integrated Class T fuse protection – High-interrupt capacity fuse system helps protect against short circuits and overloads, improving overall system safety and compliance.
• Safer, cleaner inverter installation – Pre-matched components reduce wiring guesswork, ensuring correct connections between inverter, battery, and protection system.
• Built for demanding environments – Rugged, automotive-grade materials are designed to withstand heat, vibration, and long-term use in mobile or off-grid applications.
• Time-saving installation kit – Includes essential connectors and hardware to streamline setup and reduce the need for additional parts or fabrication.


Q&A

Q: What is the Samlex S6ADC3500KIT Solar Power Inverter Installation Kit used for?
A: It is a heavy-duty installation kit used to safely connect a high-power 12V DC inverter to a battery bank in solar, RV, marine, or backup power systems.

Q: What does the S6ADC3500KIT do?
A: It provides all essential wiring components (cables, fuse, and hardware) needed to properly install and protect a large inverter system from battery to inverter connection.

Q: What is included in the kit?
A: Typically includes heavy-gauge DC power cables (positive and negative), a high-amp fuse assembly, and installation hardware for secure electrical connections.

Q: What size inverter is it designed for?
A: It is designed for high-power inverters in the ~2500W to 3500W range (12V systems), where large current flow requires very thick, low-resistance cabling.

Q: Why is a fuse included in the kit?
A: The high-amp fuse protects the wiring and battery system by cutting power during a short circuit or overload, reducing fire and equipment damage risk.

Q: What makes this kit “heavy duty”?
A: It uses very thick copper cables (often 4/0 AWG class), industrial insulation, and high-current fuse protection designed for extreme DC loads typical of large inverters.

Q: Where is it commonly used?
A: It is used in solar power systems, off-grid cabins, RVs, boats, and emergency backup systems where a large inverter must be safely connected to batteries.

Q: Is professional installation recommended?
A: Yes. Because it handles very high DC current, installation should typically be done by a qualified technician or electrician to ensure safety and proper torqueing of connections.

Q: What makes it important in a solar system?
A: It ensures safe power transfer, reduced voltage drop, and proper protection, which improves inverter performance and system reliability.


Maintenance Tips

• Connects a 12V high-power inverter (up to ~3500W) to a battery system
• Provides heavy-duty DC cables for safe high-current transfer
• Includes a high-amp fuse (protection against short circuits/overload)
• Used in solar systems, RVs, trucks, cabins, and off-grid setups
• Ensures stable power flow with reduced voltage drop
• Helps prevent overheating and cable damage under heavy load
• Improves overall safety and reliability of inverter installation
