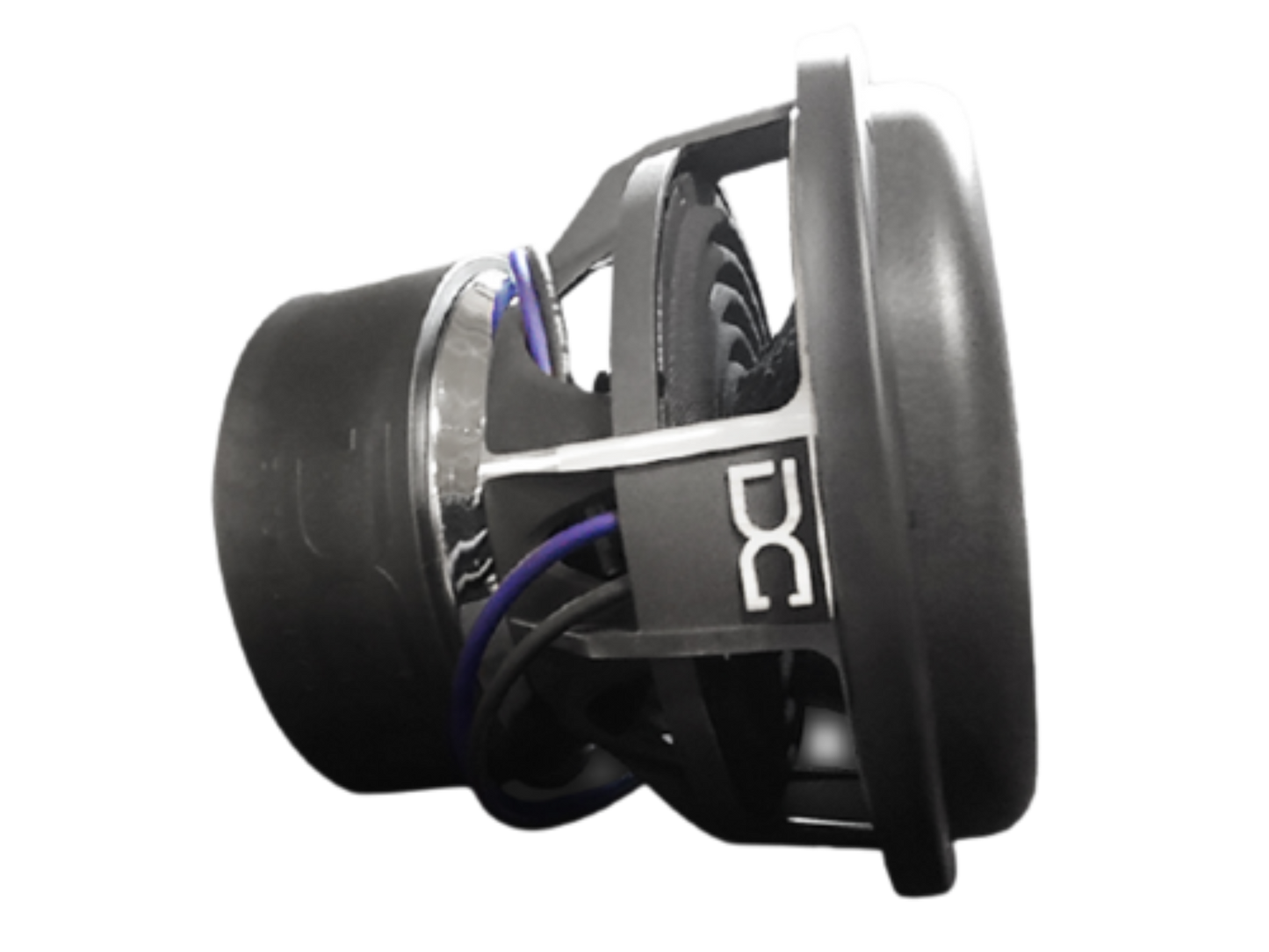

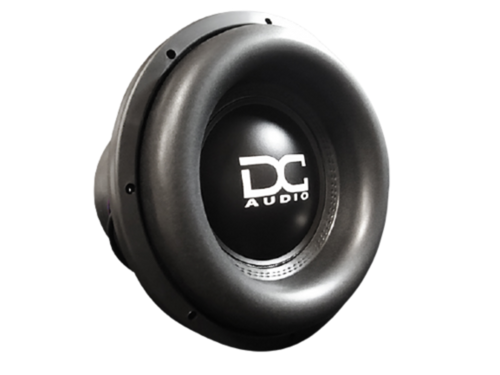

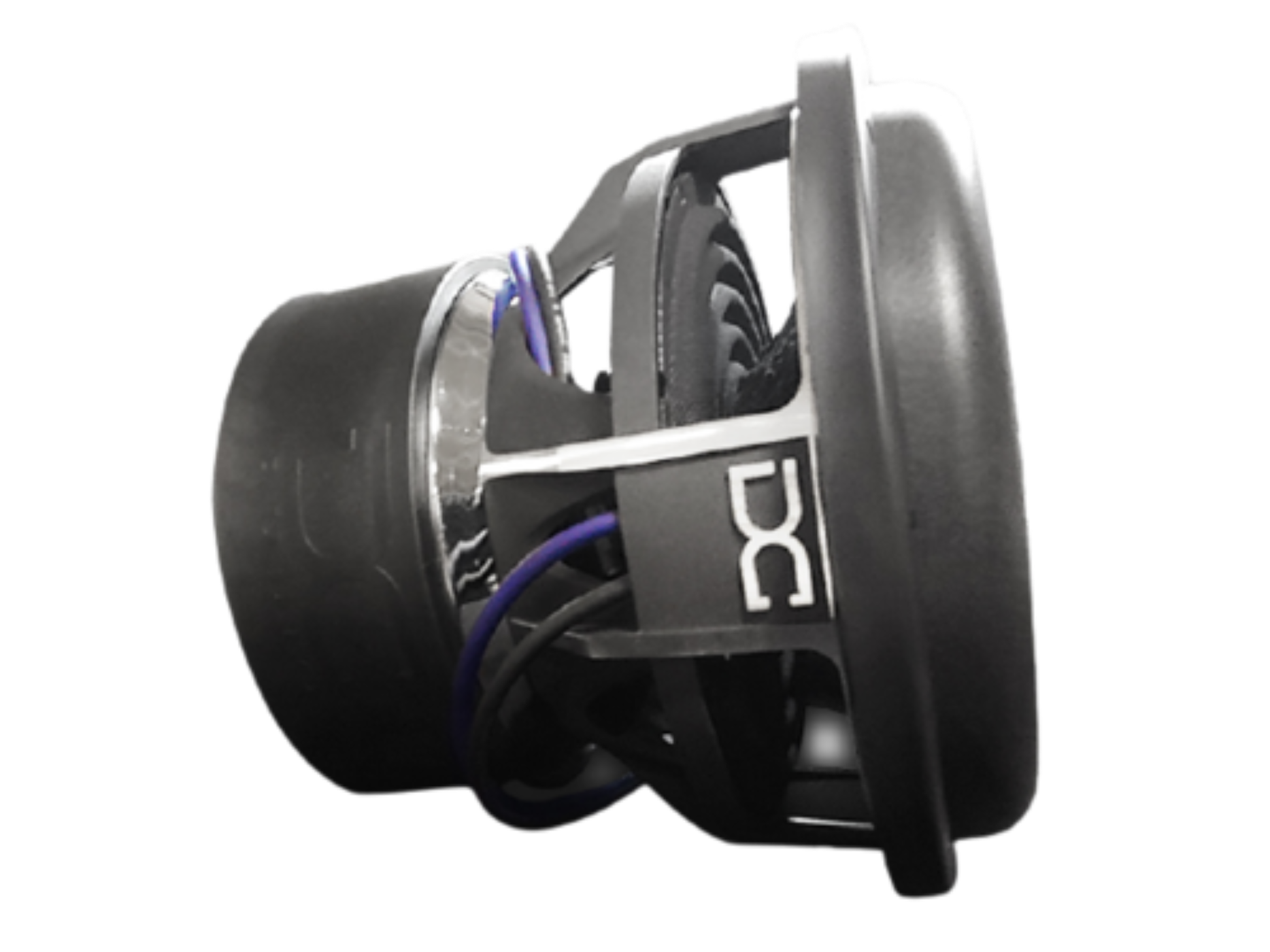

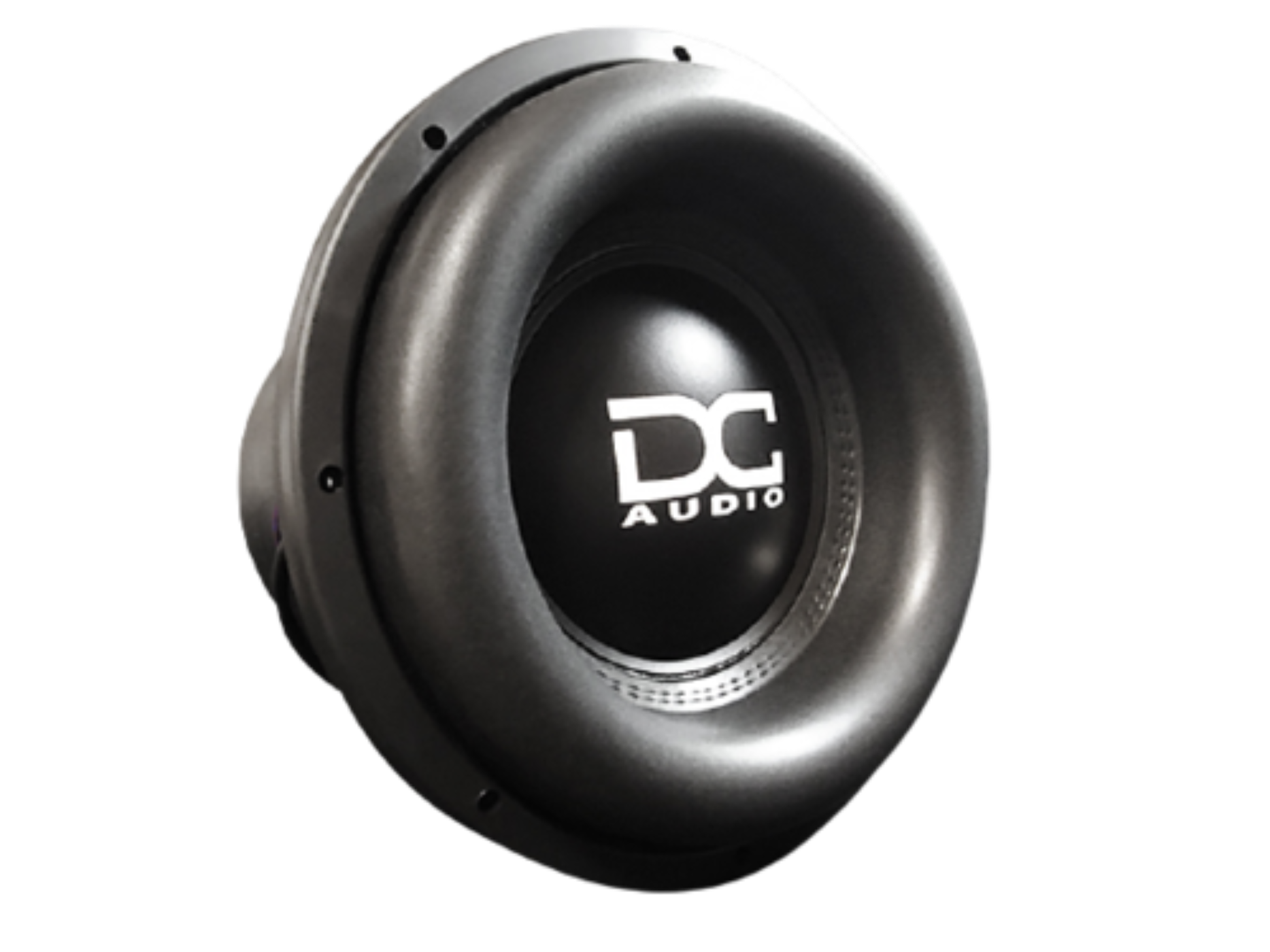

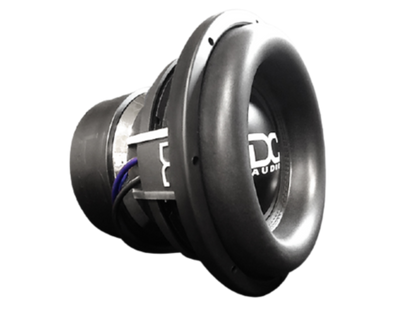

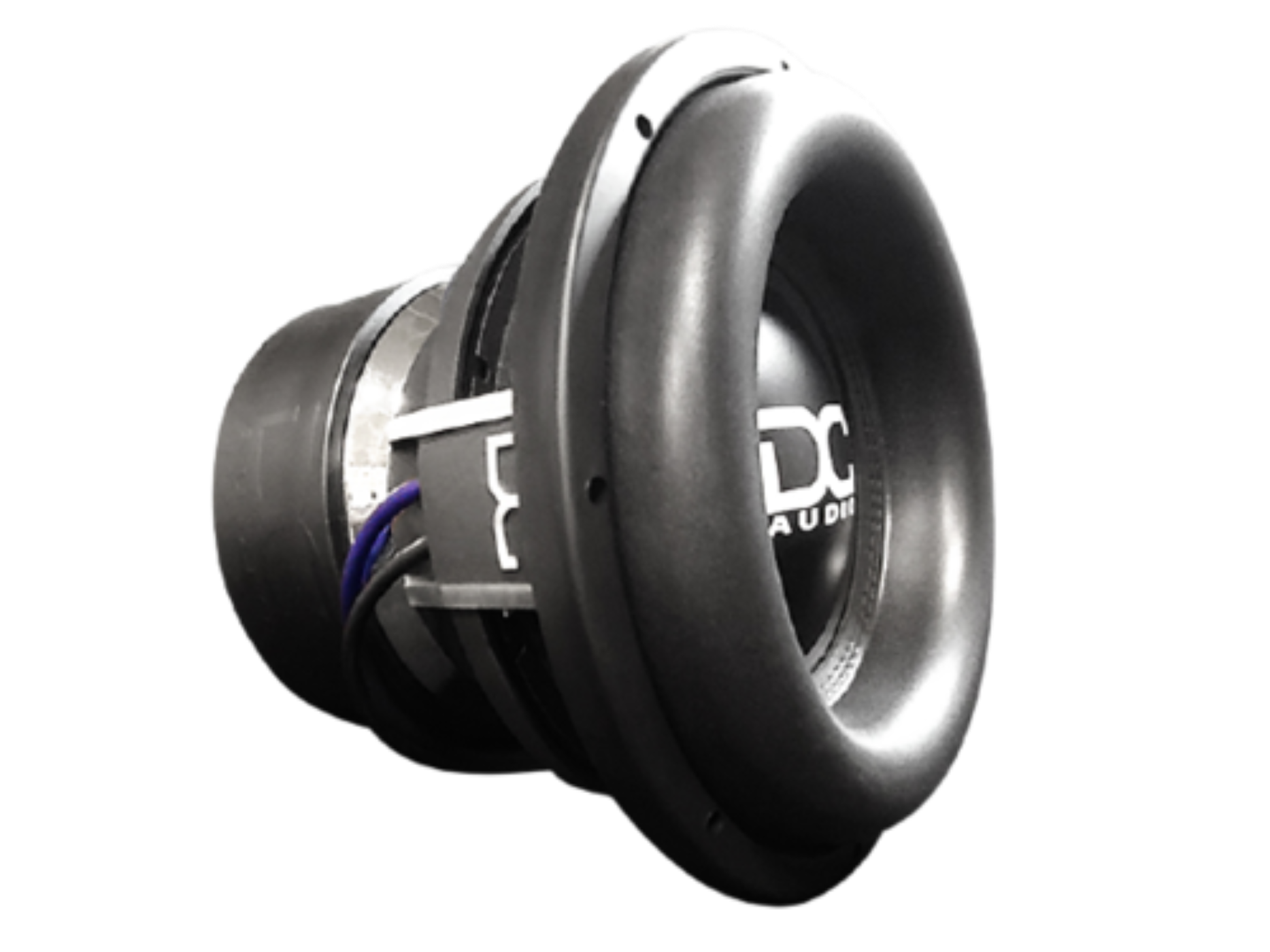

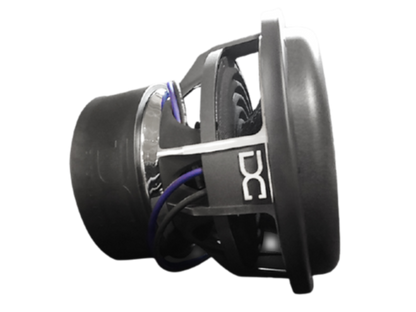

DC Audio XL Elite 15" - DCA-XLE-15-D1

DC Audio XL Elite 15" - DCA-XLE-15-D1

$652.99
$652.99 $869.99
SAVE 24% Sold out
DC Audio XL Elite 15" - DCA-XLE-15-D1

DC Audio XL Elite 15" - DCA-XLE-15-D1

$652.99
$652.99 $869.99
SAVE 24% Sold out

DC Audio XL Elite 15" - DCA-XLE-15-D1

The DC Audio XL Elite 15" DCA-XLE-15-D1 is a high-performance competition subwoofer designed for powerful bass systems and serious car audio builds. Engineered for extreme output, it features a reinforced cone assembly, large motor structure, and high-temperature voice coil technology to deliver deep, accurate, and controlled bass. Built for daily high-power use and SPL applications, this 15-inch subwoofer offers exceptional durability and strong low-frequency performance.

Features
  •  Extremely rigid non-pressed paper cone assembly
  •  Multilayered polymer foam surround
  •  Polypropylene dust cover with DC logo
  •  Quad 10"OD Spiders
  •  Dual Extra heavy duty interweaved tinsel lead wire
  •  Cast Heavy Duty DC Aluminum black & Grind frame

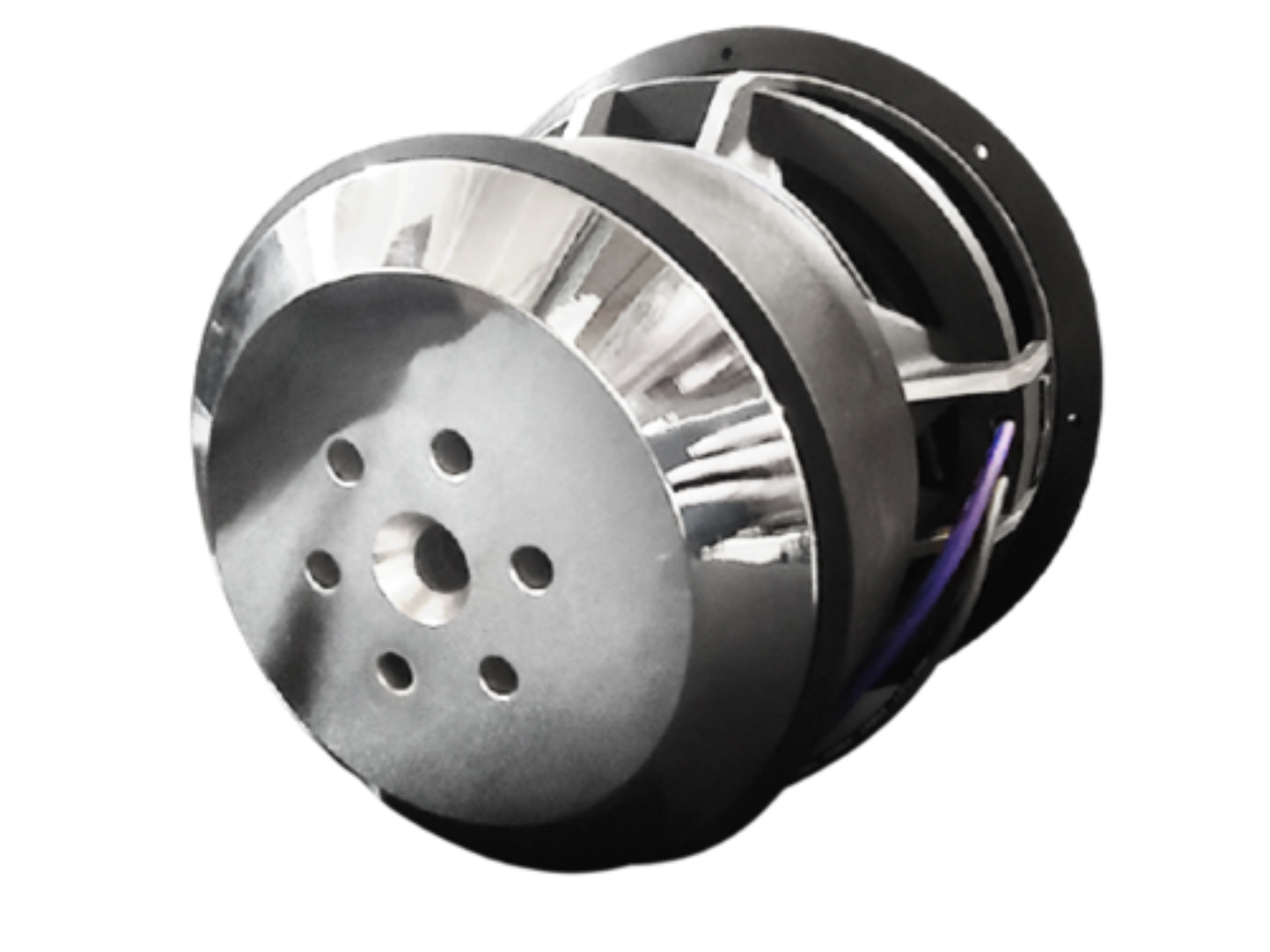

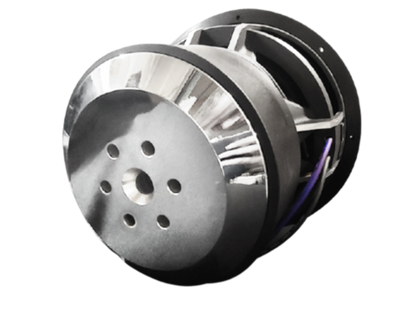

  •  FEA analyzed and optimized motor assembly – Fully CNC machined
  •  Rubber mounting gasket
  •  8 Awg Direct Leads
  •  Dual 0.7, 1.0, 1.4 or 2 ohm 3" 8 Layer Hi-temp Aluminum Stealth Coil
Specifications
Sub Size 12" 15" 18"
Mounting Depth 9.75" 11.00" 12.00"
Mounting Hole Diameter 11.15" 14.25" 16.90"
Outside Driver Diameter 12.50" 15.70" 18.50"
Motor Width 8.75" 8.75" 8.75"
Weight 65lbs 66lbs 67lbs
VC Diameter 3" 3" 3"
Displacement .18³ ft .20³ ft .25³ ft
Magnet Weight 54lbs 54lbs 54lbs
Power Handling RMS/Peak 2200/4400 2200/4400 2200/4400
Impedance (Ohm) D.7/D1/D1.4/D2 D.7/D1/D1.4/D2 D.7/D1/D1.4/D2
Sd 494.00cm² 791.00cm² 1159.00cm²
Vas liters liters liters
Cms mm/N mm/N mm/N
Mms g 367.4 g g
Fs 32.9
BL 22.73 N/A 22.73 N/A 22.73 N/A
Re 3.98 ohm 1.8 ohm 3.98 ohm
Le mH mH mH
Qms 6.31
Qes 0.37
Qts 0.35
Xmax
Ref SPL @ 1 watt dB 90.3 dB dB
Suggested Sealed n/a n/a n/a
Suggested Ported 1.5³ ft 3.5³ ft 5.5³ ft



What Our Experts Think
  • The DC Audio XL Elite 15" (DCA-XLE-15-D1) is a competition-grade 15-inch subwoofer built for extreme bass systems, SPL builds, and powerful daily setups
  • Rated at approximately 2200W RMS / 4400W peak power handling for high-output performance with the right amplifier and enclosure setup
  • Features a dual 1-ohm voice coil configuration, allowing flexible wiring options for high-power amplifier matching
  • Uses a 3-inch 8-layer high-temperature aluminum voice coil, heavy-duty motor assembly, quad 10" spiders, and reinforced cone structure for durability under extreme power
  • CNC-machined motor design and aluminum frame construction provide strong mechanical performance and long-term reliability
  • Recommended for ported enclosures around 3.25 ft³ to maximize low-frequency output and efficiency
  • Ideal for custom bass builds, competition vehicles, and high-output car audio systems
Q&A

Q: How much power does the DC Audio XL Elite 15 handle?
A: It handles approximately 2200W RMS and 4400W peak power.

Q: What is the voice coil configuration?
A: This model uses a dual 1-ohm voice coil setup.

Q: Is it good for daily use?
A: Yes, when properly installed and tuned, it works well for powerful daily systems and SPL applications.

Q: What amplifier should be used?
A: A high-quality amplifier delivering close to the subwoofer’s RMS rating at the correct final impedance is recommended.

Q: What enclosure is recommended?
A: A properly tuned ported enclosure is recommended for maximum bass output.

Maintenance Tips
  • Use a properly tuned amplifier to prevent clipping and overheating
  • Check subwoofer wiring and terminals regularly for secure connections
  • Ensure enclosure seals remain tight for consistent bass performance
  • Avoid exceeding recommended RMS power limits
  • Monitor voltage stability during high-output sessions
  • Allow proper cooling during extended heavy bass use
