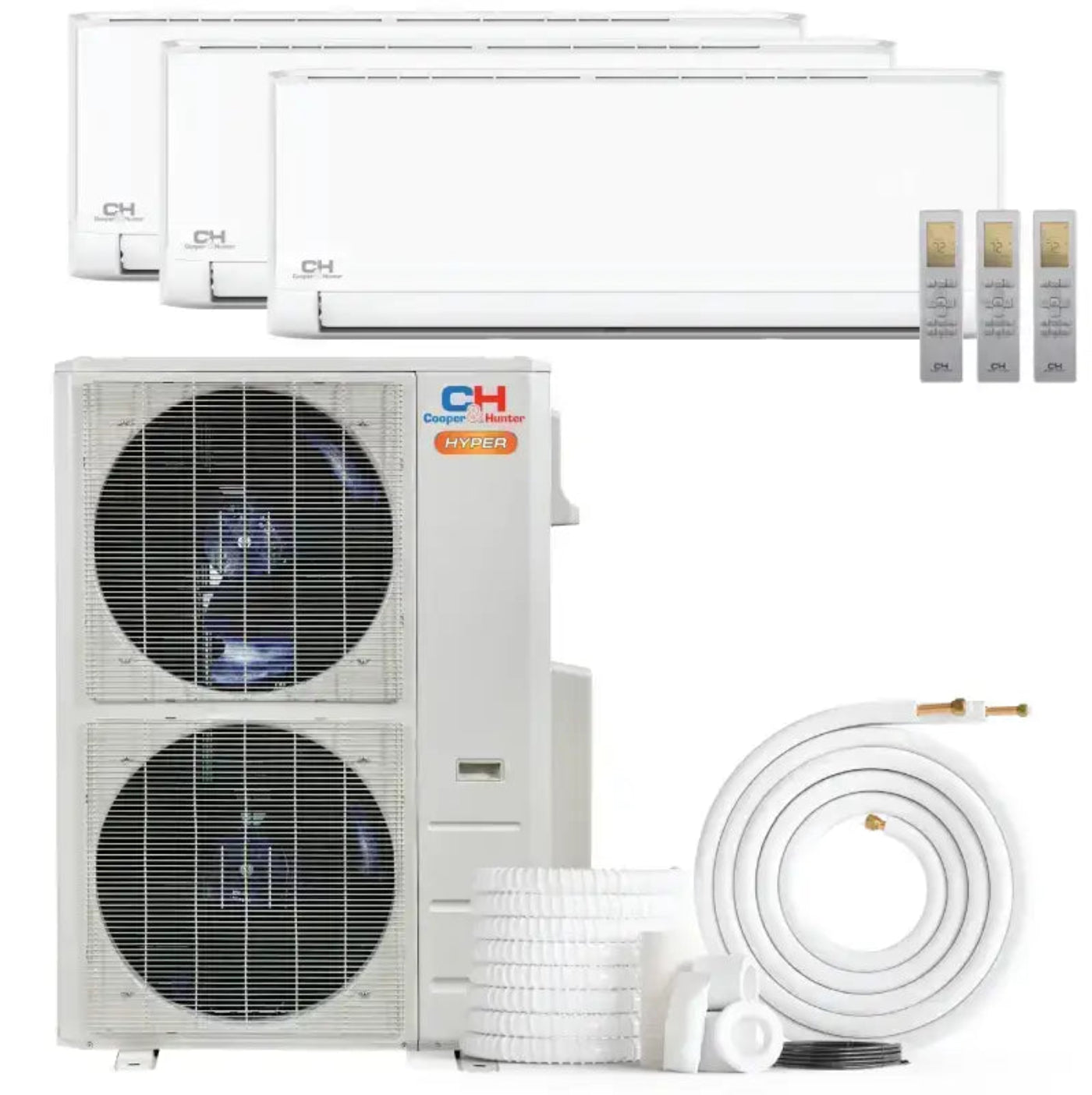

The Cooper & Hunter Hyper Heat 3-Zone Mini Split System features a CH-RHP48M-230VO outdoor unit, delivering 48,000 nominal total BTU across three wall-mount zones with cooling capacities of 9,000, 9,000, and 24,000 BTU respectively, and includes built-in Wi-Fi control. With a SEER2 rating of 23, it operates efficiently down to -22°F ambient temperatures using R454B refrigerant for reliable heating and cooling performance.
Features
- 3-zone system — the CH-RHP48M-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
- 48,000 BTU nominal system capacity across 3 zones, each on its own remote
- 23 SEER2 inverter efficiency — current R454B generation
- Hyper Heat: heats down to -22°F outdoor ambient
- R454B refrigerant, factory pre-charged; built-in Wi-Fi control

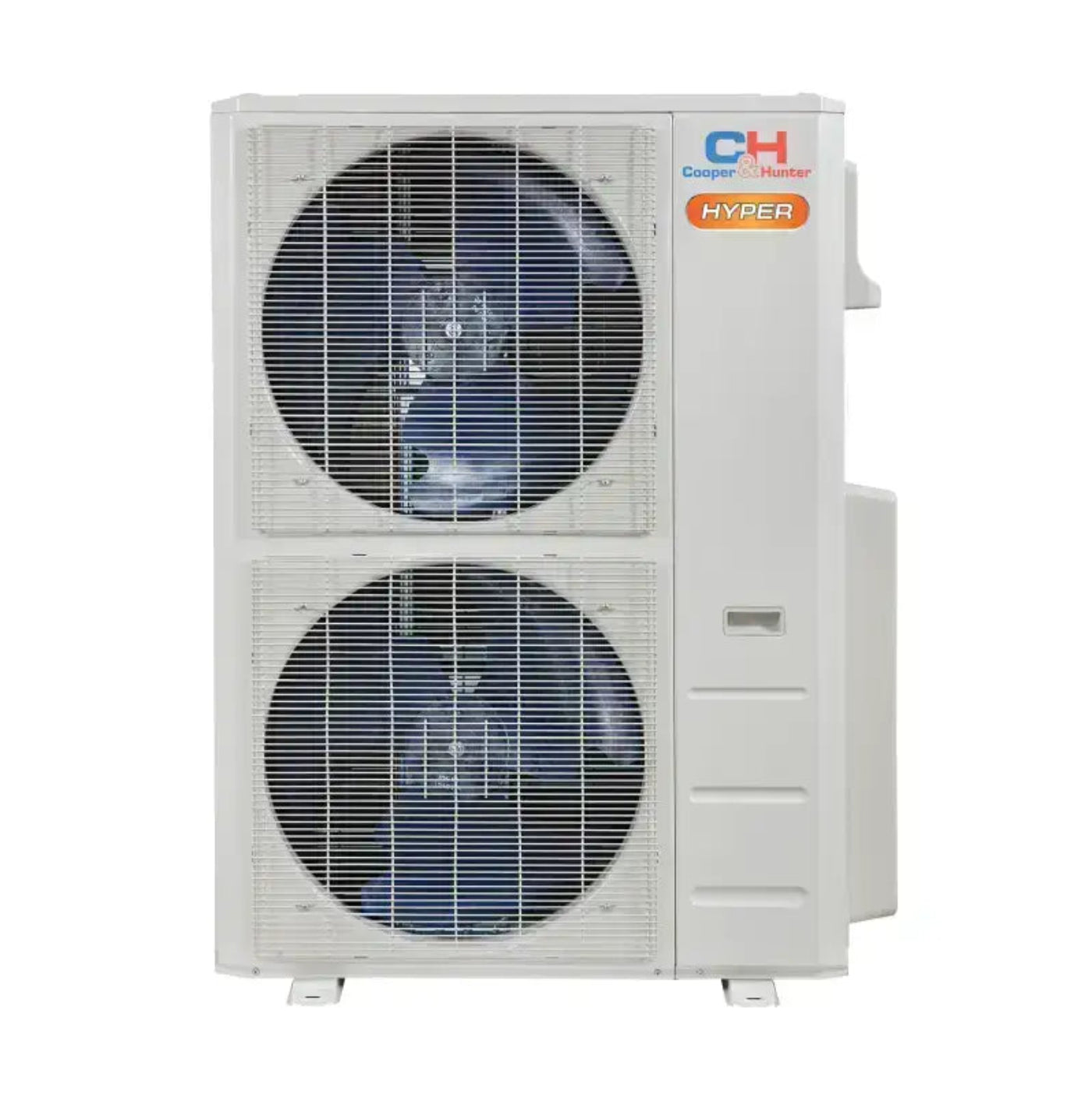

- Outdoor unit (condenser): CH-RHP48M-230VO — 48000 BTU R454B Hyper Heat multi-zone outdoor unit

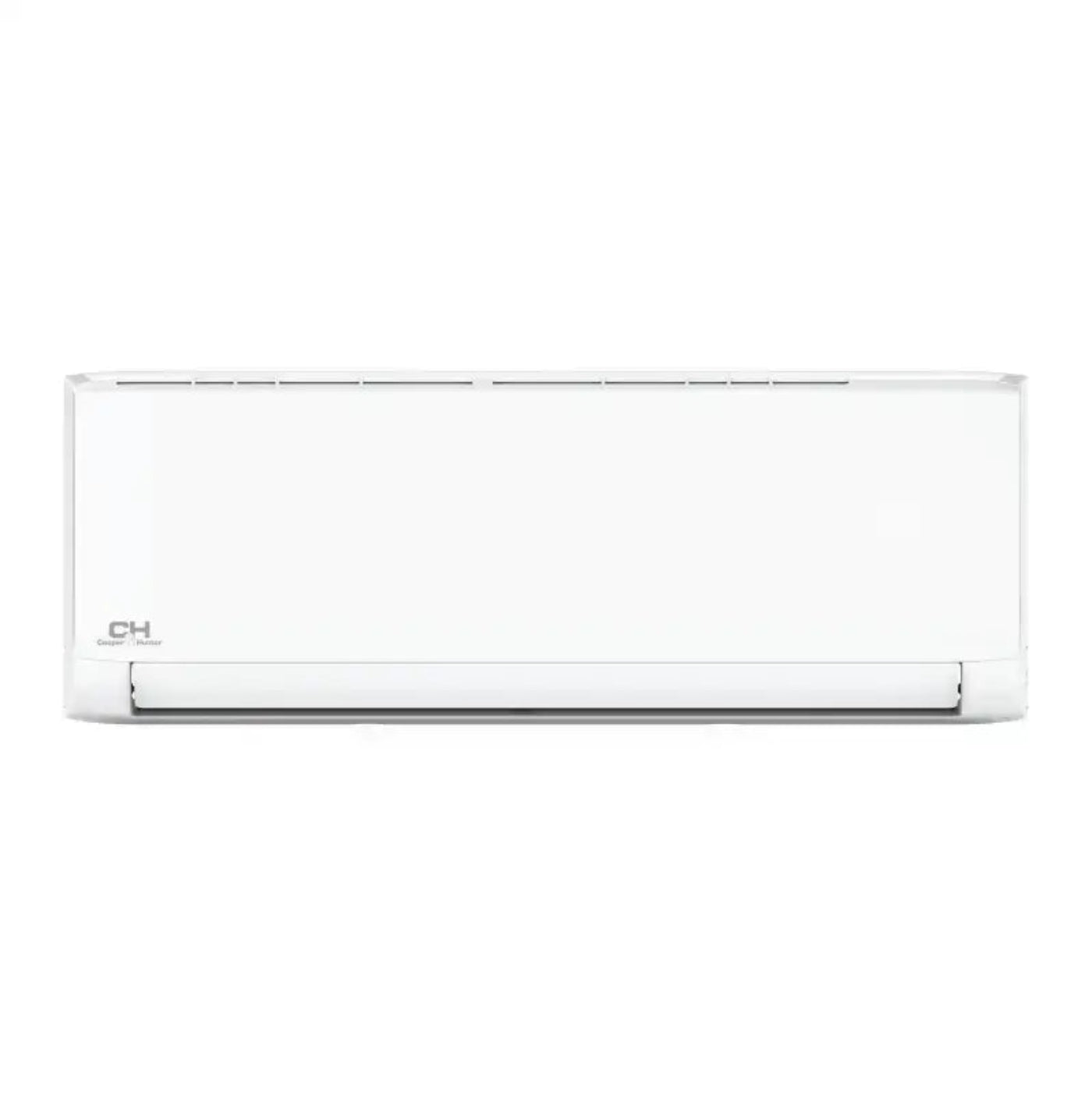

- Zone 1 — Wall Mount: 9,000 Btu/h indoor unit with remote control
- Zone 2 — Wall Mount: 9,000 Btu/h indoor unit with remote control
- Zone 3 — Wall Mount: 24,000 Btu/h indoor unit with remote control
- Line-set kits — choose copper line-set length per zone at checkout (or supply your own)
Specifications
| Power Supply | 208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
|---|---|
| Cooling — Rated Capacity (Range) | 60,000 Btu/h (19,000–62,000) |
| Heating at 47°F — Rated Capacity (Range) | 60,000 Btu/h (20,000–60,000) |
| Rated Heating at 5°F | 39,000 Btu/h |
| SEER2 / EER2 | 22 / 10 |
| HSPF4 / HSPF5 / COP (47°F) | 9.5 / 7.4 / 3.7 |
| Outdoor Unit MCA / Max. Fuse | 36 A / 40 A |
| Max. Connectable Indoor Units | 6 |
| Outdoor Noise Level | 65 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight | 237.88 / 270.28 lbs |
| Refrigerant Type / Charge | R454B / 151.68 oz |
| Pre-charged Line Length | 150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor | 262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) | 49.2 ft / 33 ft |
| Operating Range — Cooling / Heating | -13–122°F / -13–75°F outdoor ambient |
What our Experts Think
- Hyper Heat Performance – This 48,000 BTU Hyper Heat system provides reliable heating and cooling for three zones (9K + 9K + 24K), delivering dependable heating in outdoor temperatures as low as -22°F.
- Independent Room Control – Each indoor unit operates with its own thermostat, allowing personalized comfort and improved energy efficiency across different spaces.
- High-Efficiency Inverter Technology – Variable-speed inverter technology automatically adjusts compressor output for consistent temperatures, quiet operation, and lower energy costs.
- Eco-Friendly R454B Refrigerant – Uses next-generation R454B refrigerant for efficient performance with improved environmental impact.
- Smart & Quiet Comfort – Olivia wall-mounted indoor units offer whisper-quiet performance, Wi-Fi capability, advanced filtration, and multiple comfort modes for everyday convenience.
- Expert Verdict – A premium choice for homes needing powerful climate control in two smaller rooms and one large living area, combining Hyper Heat technology, energy efficiency, and personalized multi-zone comfort.
Q&A
Q: What is included in this multi-zone mini split system?
A: This 48,000 BTU Hyper Heat system includes three wall-mounted indoor units (9K+9K+24K) for efficient heating and cooling in multiple rooms.
Q: Can each zone have its own temperature setting?
A: Yes. Each indoor unit operates independently, allowing customized comfort in every zone.
Q: Does this system provide both heating and cooling?
A: Yes. The Hyper Heat heat pump delivers reliable year-round cooling and enhanced heating performance, even in cold weather.
Q: What refrigerant does this system use?
A: It uses R454B refrigerant, designed for improved energy efficiency and reduced environmental impact.
Q: Is this system energy efficient?
A: Yes. Inverter technology automatically adjusts compressor speed to maintain consistent comfort while reducing energy consumption.
Maintenance Tips
