Cooper & Hunter Olivia Hyper 19,000 BTU 3-Zone 6k+6k+6k Wall Mount, 230V, R454B - Ductless Mini Split AC Heat Pump
The Cooper & Hunter Hyper Heat 3-Zone Mini Split System features an outdoor unit model CH-RHP19M-230VO with a nominal total cooling capacity of 19,000 BTU, three wall-mounted zones each rated for 6,000 BTU of cooling, and a SEER2 efficiency rating of 25. It operates effectively in heating mode down to -22°F ambient temperatures, uses R454B refrigerant, and includes Wi-Fi control for remote management.
Key Features
- 3-zone Hyper Heat system — the CH-RHP19M-230VO outdoor unit supports up to 3 independently controlled indoor units
- 19,000 BTU nominal capacity across 3 zones, each on its own remote
- 25 SEER2 inverter efficiency
- Hyper Heat — heats down to -22°F outdoor ambient, for cold climates
- R454B refrigerant, factory pre-charged; Wi-Fi control

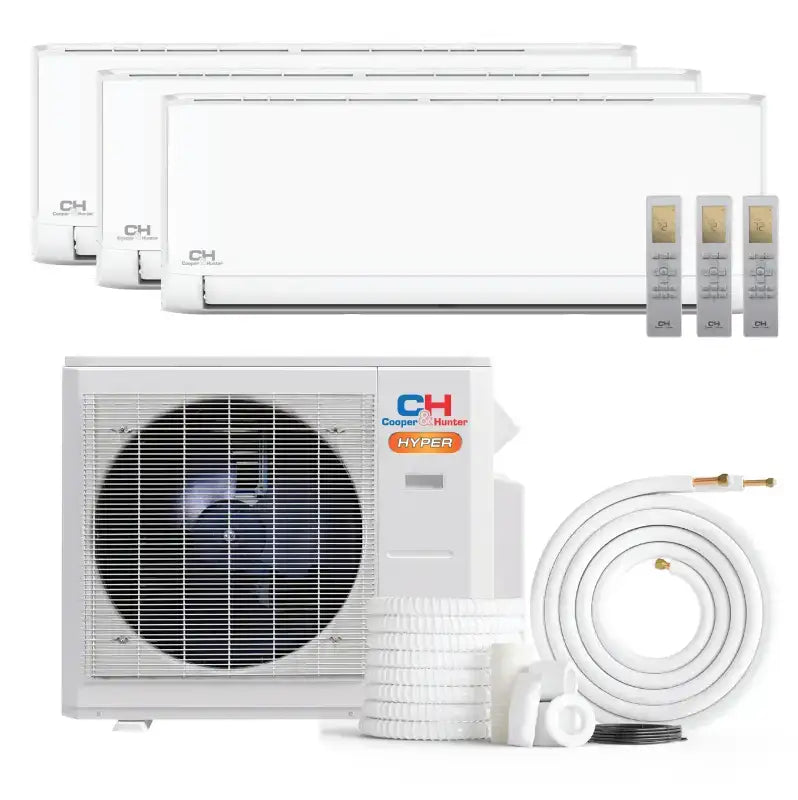

Your System Includes

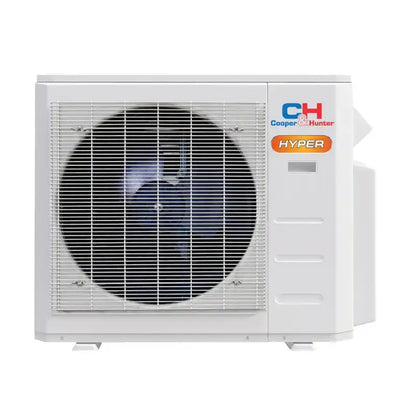

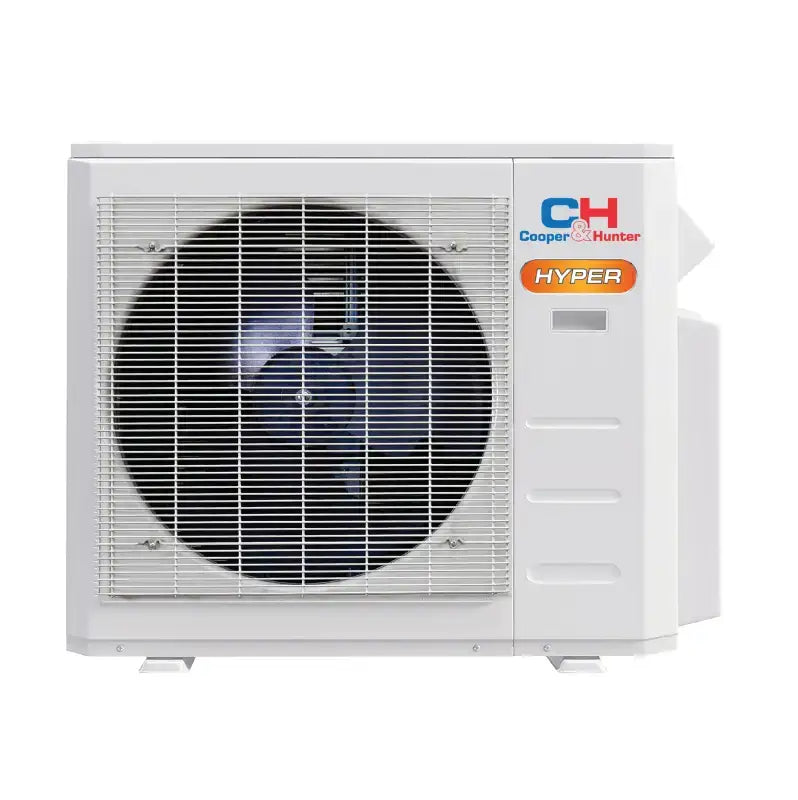

- Outdoor unit (condenser): CH-RHP19M-230VO — R454B Hyper Heat multi-zone outdoor unit

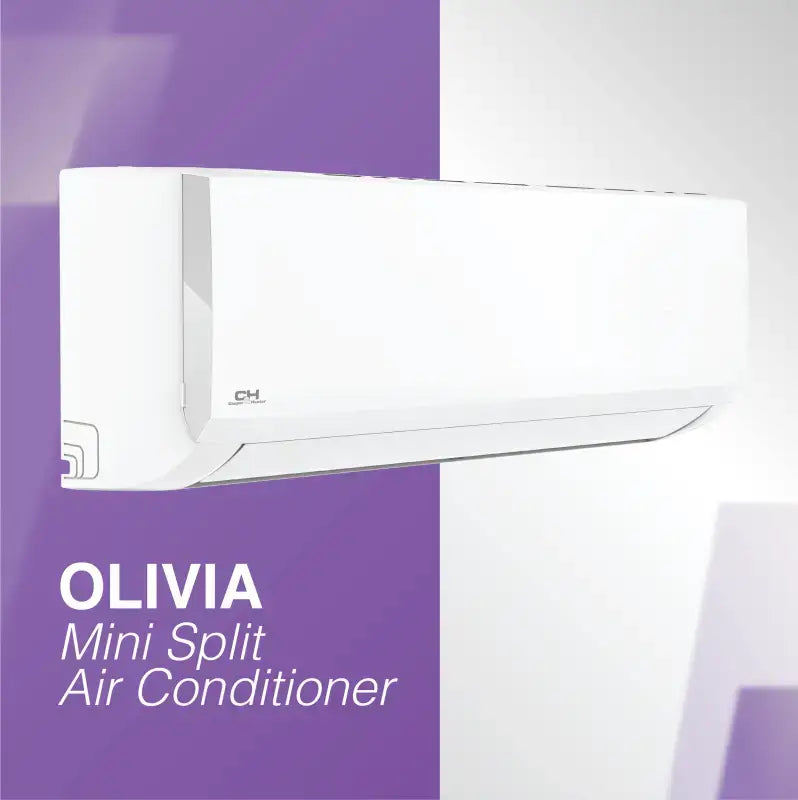

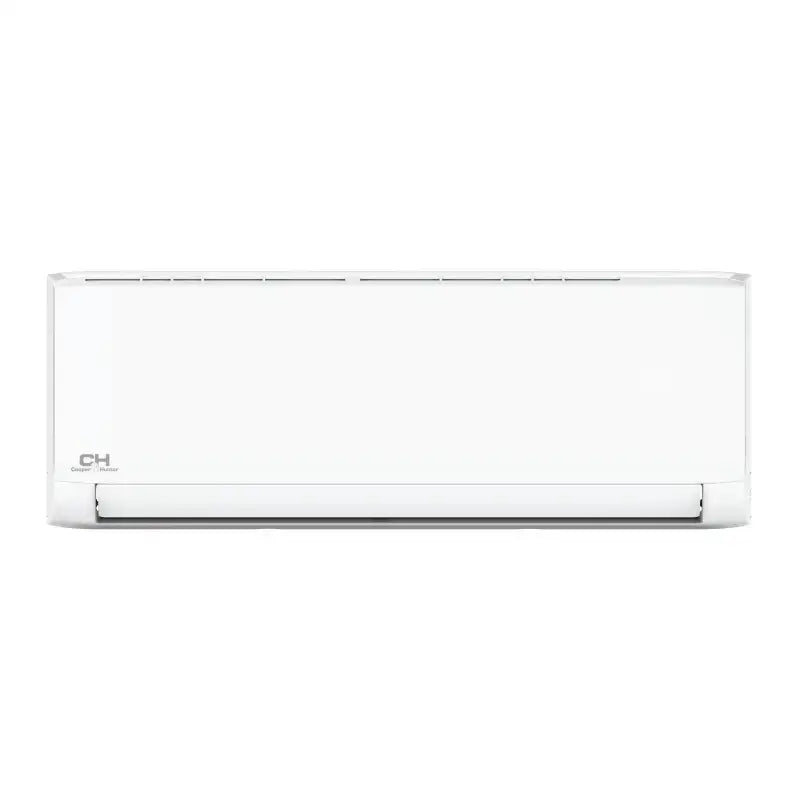

- Zone 1 — Wall Mount: 6,000 Btu/h indoor unit with remote control
- Zone 2 — Wall Mount: 6,000 Btu/h indoor unit with remote control
- Zone 3 — Wall Mount: 6,000 Btu/h indoor unit with remote control
- Line-set kits — choose copper line-set length per zone at checkout (or supply your own)
Specifications — CH-RHP19M-230VO Outdoor Unit
| Power Supply | 208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
| Cooling — Rated Capacity (Range) | 19,000 Btu/h (5,400–28,000) |
| Heating at 47°F — Rated Capacity (Range) | 20,000 Btu/h (5,700–27,000) |
| Rated Heating at 5°F | 19,000 Btu/h |
| SEER2 / EER2 | 25 / 15 |
| HSPF4 / HSPF5 / COP (47°F) | 10.4 / 8.5 / 4 |
| Outdoor Unit MCA / Max. Fuse | 17.5 A / 20 A |
| Max. Connectable Indoor Units | 3 |
| Outdoor Noise Level | 61.5 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 37.24 × 16.14 × 31.89 in |
| Outdoor Unit Net / Gross Weight | 137.35 / 148.15 lbs |
| Refrigerant Type / Charge | R454B / 78.31 oz |
| Pre-charged Line Length | 75 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor | 196.8 ft / 98.4 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) | 49.2 ft / 33 ft |

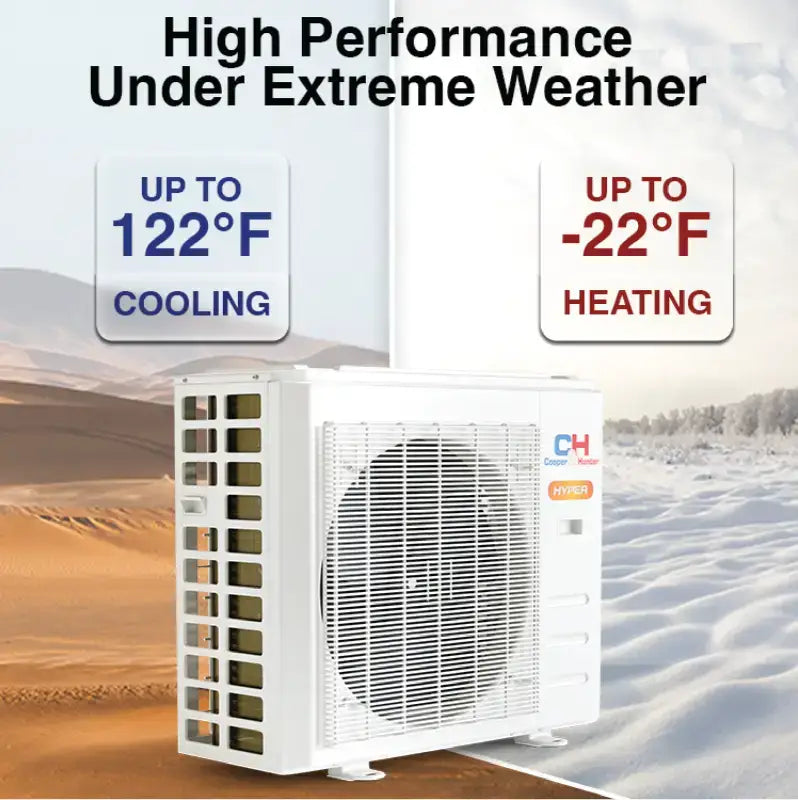

| Operating Range — Cooling / Heating | -22–122°F / -22–75°F outdoor ambient |
Outdoor-unit ratings as printed in the Cooper & Hunter catalog; combined-system capacity varies with the indoor-unit mix.
This System’s Zones
| Zone | Type | Cooling (nominal) |
| 1 | Wall Mount | 6,000 Btu/h |
| 2 | Wall Mount | 6,000 Btu/h |
| 3 | Wall Mount | 6,000 Btu/h |
Frequently Asked Questions
How many rooms can this system heat and cool?

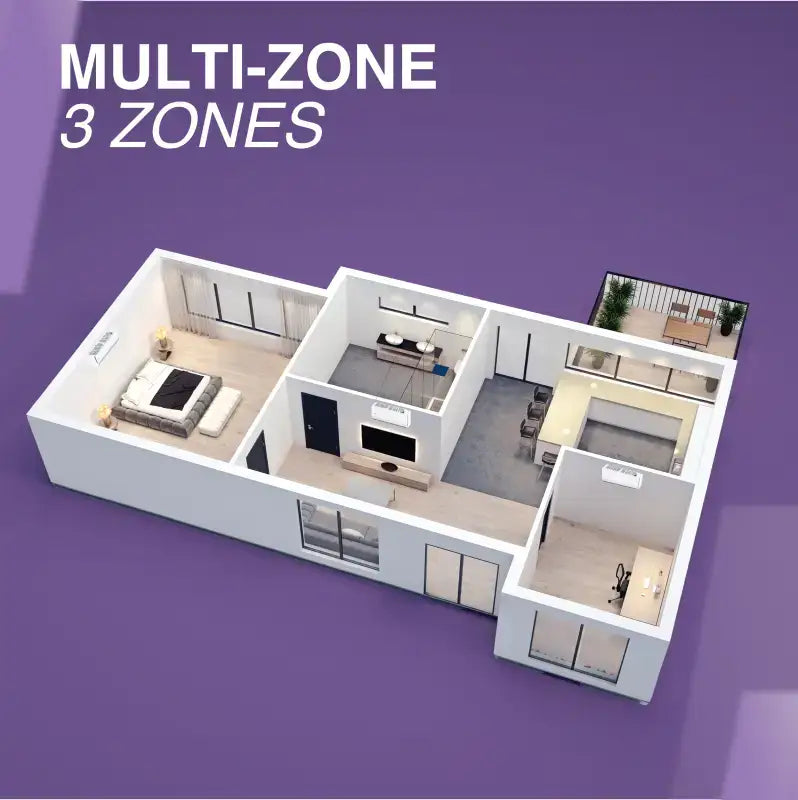

This is a 3-zone Hyper Heat system — the CH-RHP19M-230VO outdoor unit connects to 3 indoor units (6,000 BTU Wall Mount, 6,000 BTU Wall Mount, 6,000 BTU Wall Mount), each controlled independently, so it conditions 3 separate rooms or areas at once.
How well does it heat in cold weather?
It is a Hyper Heat inverter heat pump rated to keep heating down to -22°F outdoor ambient — built for cold-climate winters.
What refrigerant does it use?
R454B — a next-generation lower-GWP (A2L) refrigerant. The system ships factory pre-charged; a licensed installer adjusts the charge for your line length.
Is everything included?
The system includes the outdoor condenser, all indoor units, and their remotes. Choose a copper line-set kit length per zone at checkout, or supply your own.
Who should install it?
A licensed HVAC professional — required for the refrigerant, electrical, and startup work, and to keep the warranty valid.
What warranty does it come with?
Cooper & Hunter backs it with a 7-year compressor and 5-year parts limited warranty; professional installation and registration within 60 days are required to keep coverage valid.
Warranty & Support
Backed by Cooper & Hunter’s 7-year compressor / 5-year parts warranty. Installation by a licensed HVAC professional and product registration within 60 days are required to keep the warranty valid.
