The Cooper & Hunter Olivia 3-Zone Mini Split System features three wall-mounted zones with capacities of 6,000, 12,000, and 36,000 BTU, offering efficient heating and cooling with a SEER2 rating of 24. It includes a built-in Wi-Fi control system and uses R454B refrigerant, with the outdoor unit rated for nominal 48,000 BTU and operation down to -13°F ambient temperatures.
Features
- 3-zone system — the CH-R48MES-230VO outdoor unit supports up to 6 indoor units, each individually controlled; port adapters included, no branch boxes required
- 47,000 Btu/h rated cooling / 48,000 Btu/h rated heating — inverter range 12,000–55,000 cooling, 13,000–53,000 heating (Btu/h)
- 24 SEER2 / 12.5 EER2 / 10.3 HSPF4 — current R454B-generation efficiency
- Heats down to -13°F outdoor ambient — 36,000 Btu/h rated heating at 5°F; cooling operation -13–122°F
- Wi-Fi Smart Kit built in — Cooper & Hunter app control; remote control included with each indoor unit; compatible with C&H 12V wall thermostat (sold separately)
- ETL listed, AHRI certified, Energy Star Cold Climate & NEEP listed

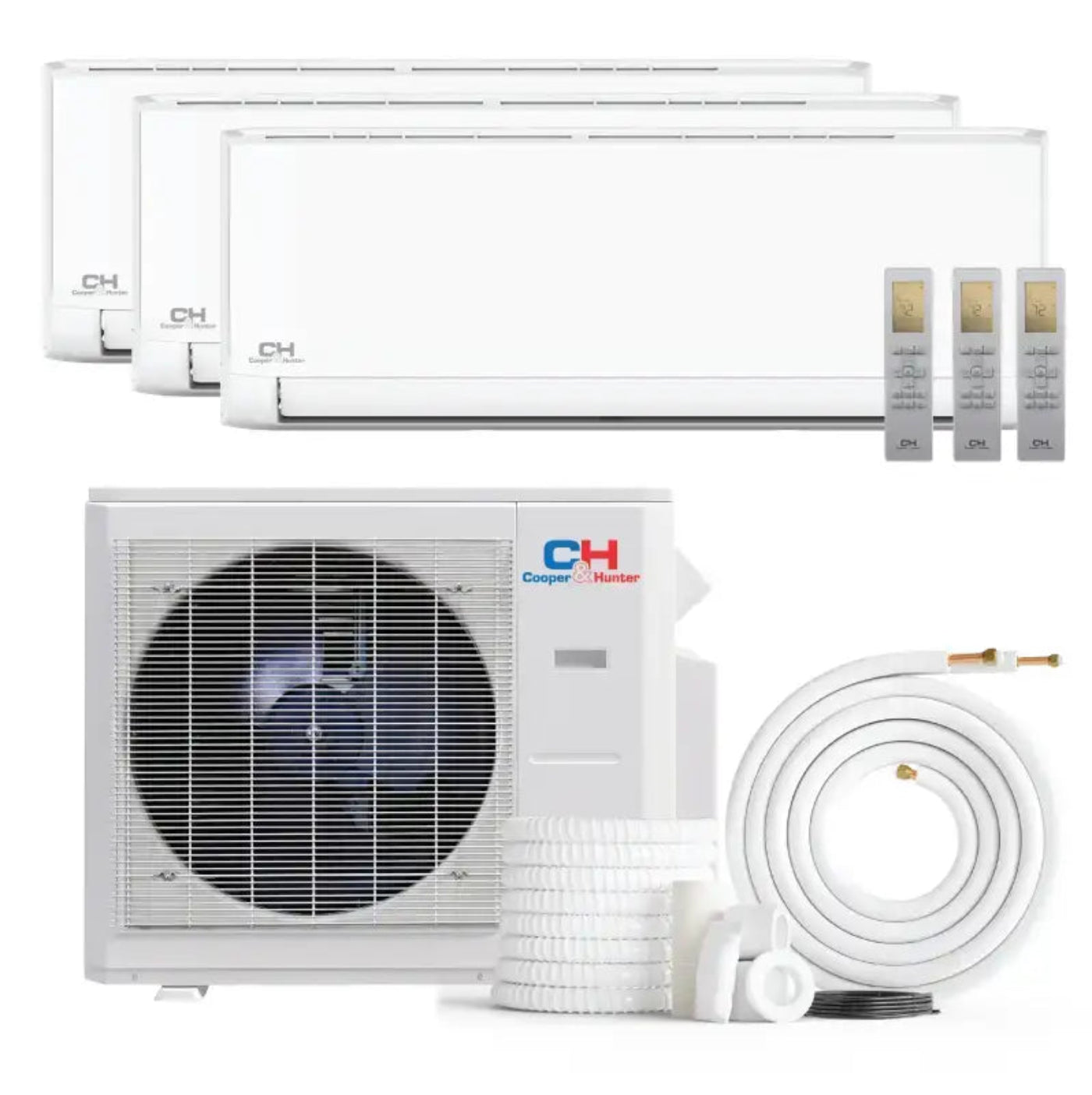

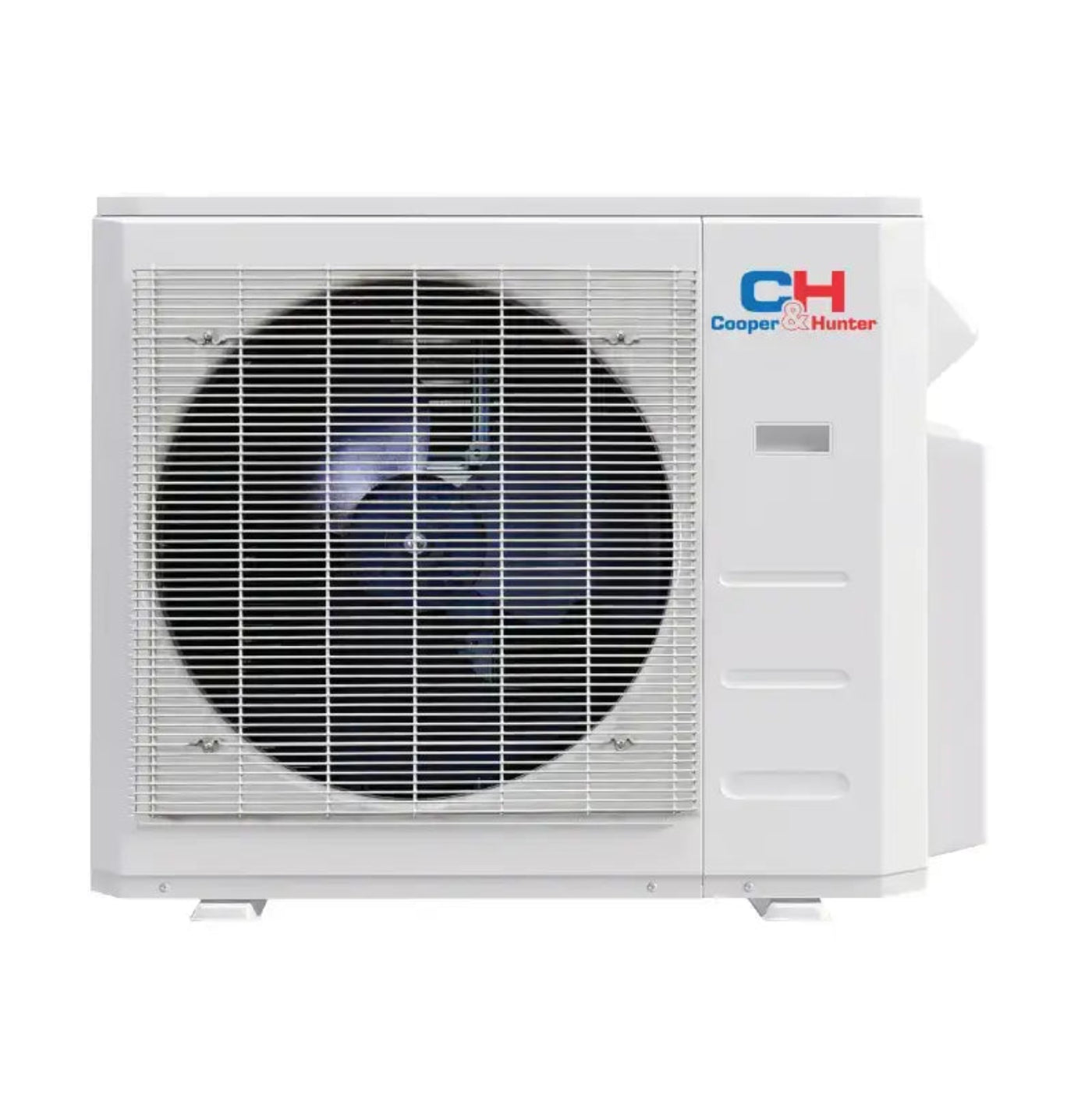

- Outdoor unit (condenser): CH-R48MES-230VO — 48,000 BTU multi-zone R454B outdoor unit, pre-charged for up to 150 ft of line

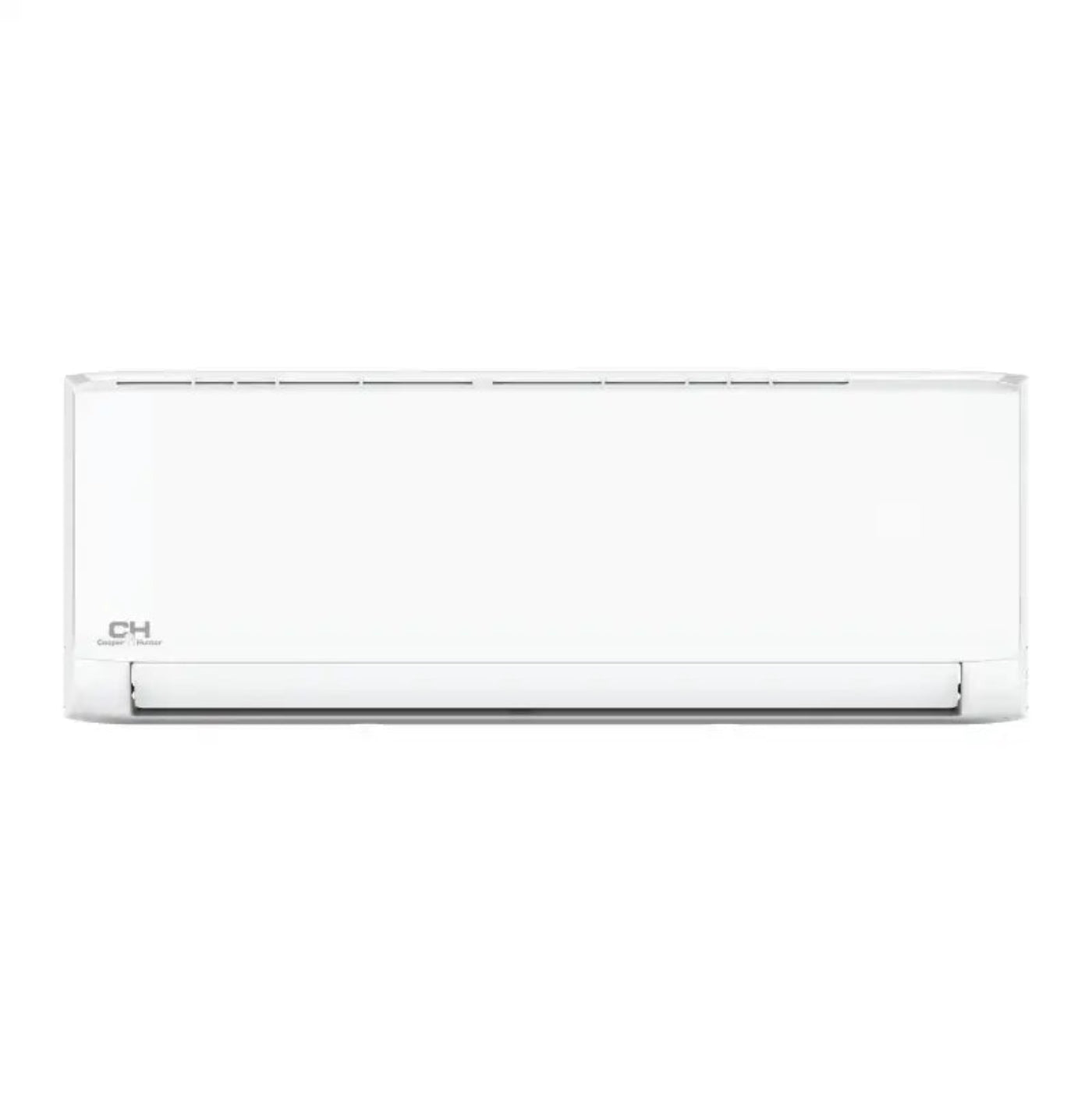

- Zone 1 — Wall Mount (Olivia): CH-R06MOLVWM-230VI (6,000 Btu/h) with remote control
- Zone 2 — Wall Mount (Olivia): CH-R12MOLVWM-230VI (12,000 Btu/h) with remote control
- Zone 3 — Wall Mount (Olivia): CH-R36MELVWM-230VI (36,000 Btu/h) with remote control
- Wi-Fi Smart Kit (built in) for app control
- Installation kits — choose 16 ft, 25 ft, or 50 ft per zone: copper line set, communication cable, and drain line
Specifications
| Power Supply | 208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
|---|---|
| Cooling — Rated Capacity (Range) | 60,000 Btu/h (19,000–62,000) |
| Heating at 47°F — Rated Capacity (Range) | 60,000 Btu/h (20,000–60,000) |
| Rated Heating at 5°F | 39,000 Btu/h |
| SEER2 / EER2 | 22 / 10 |
| HSPF4 / HSPF5 / COP (47°F) | 9.5 / 7.4 / 3.7 |
| Outdoor Unit MCA / Max. Fuse | 36 A / 40 A |
| Max. Connectable Indoor Units | 6 |
| Outdoor Noise Level | 65 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight | 237.88 / 270.28 lbs |
| Refrigerant Type / Charge | R454B / 151.68 oz |
| Pre-charged Line Length | 150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor | 262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) | 49.2 ft / 33 ft |
| Operating Range — Cooling / Heating | -13–122°F / -13–75°F outdoor ambient |
