Cooper & Hunter Olivia 36,000 BTU 3-Zone 6k+6k+6k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump - CH-R36MES-230VO/M06WM+M06WM+M06WM-NO/NO/NO
Cooper & Hunter Olivia 36,000 BTU 3-Zone 6k+6k+6k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump - CH-R36MES-230VO/M06WM+M06WM+M06WM-NO/NO/NO
Couldn't load pickup availability
Cooper & Hunter Olivia 36,000 BTU 3-Zone 6k+6k+6k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump - CH-R36MES-230VO/M06WM+M06WM+M06WM-NO/NO/NO
Cooper & Hunter Olivia 36,000 BTU 3-Zone 6k+6k+6k Wall Mount, 230V, R454B - Ductless Mini Split Air Conditioner Heat Pump - CH-R36MES-230VO/M06WM+M06WM+M06WM-NO/NO/NO

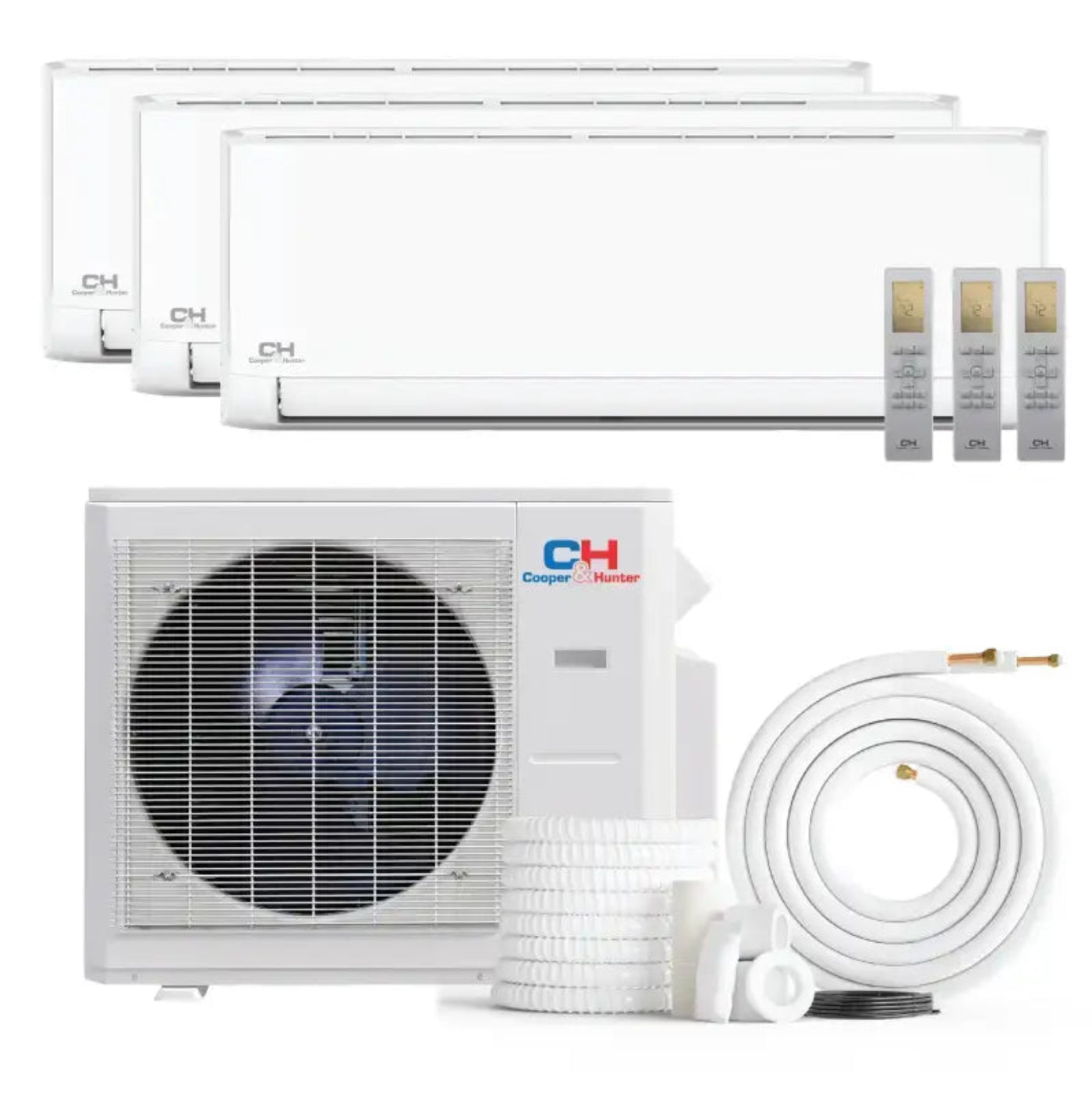

The Cooper & Hunter Olivia 3-Zone Mini Split System features three wall-mounted zones, each with 6,000 BTU capacity, and an outdoor unit rated for 36,000 nominal BTU with a minimum heating ambient of -13°F. It includes built-in Wi-Fi control, operates with R454B refrigerant, and achieves a SEER2 rating of 24.
Features
- 3-zone system — the CH-R36MES-230VO outdoor unit supports up to 5 indoor units, each individually controlled; port adapters included, no branch boxes required
- 36,000 Btu/h rated cooling / 37,000 Btu/h rated heating — inverter range 9,000–42,000 cooling, 10,000–42,500 heating (Btu/h)
- 24 SEER2 / 12 EER2 / 9.5 HSPF4 — current R454B-generation efficiency
- Heats down to -13°F outdoor ambient — 26,000 Btu/h rated heating at 5°F; cooling operation -13–122°F
- Wi-Fi Smart Kit built in — Cooper & Hunter app control; remote control included with each indoor unit; compatible with C&H 12V wall thermostat (sold separately)
- ETL listed, AHRI certified, Energy Star Cold Climate & NEEP listed

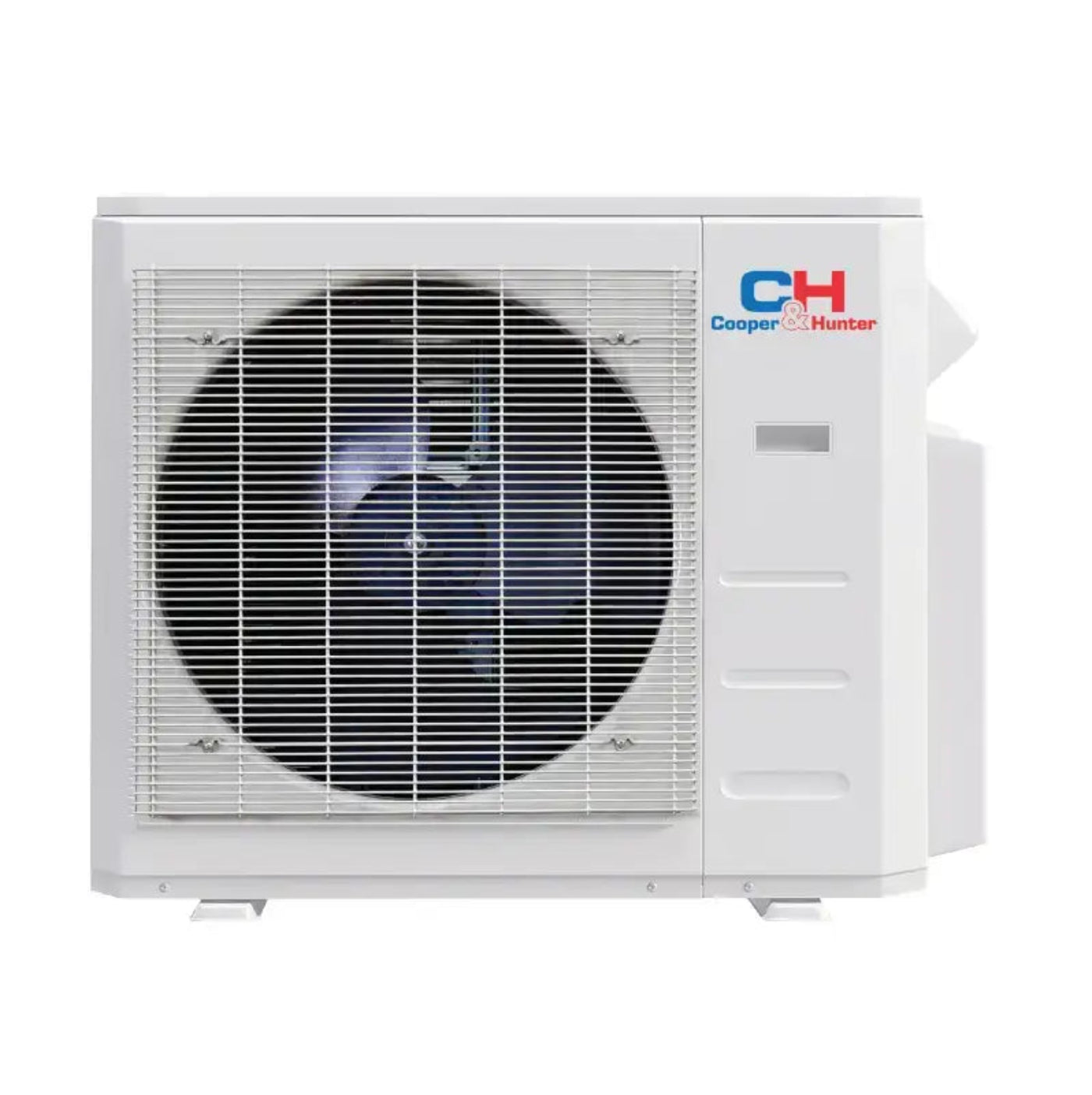

- Outdoor unit (condenser): CH-R36MES-230VO — 36,000 BTU multi-zone R454B outdoor unit, pre-charged for up to 125 ft of line

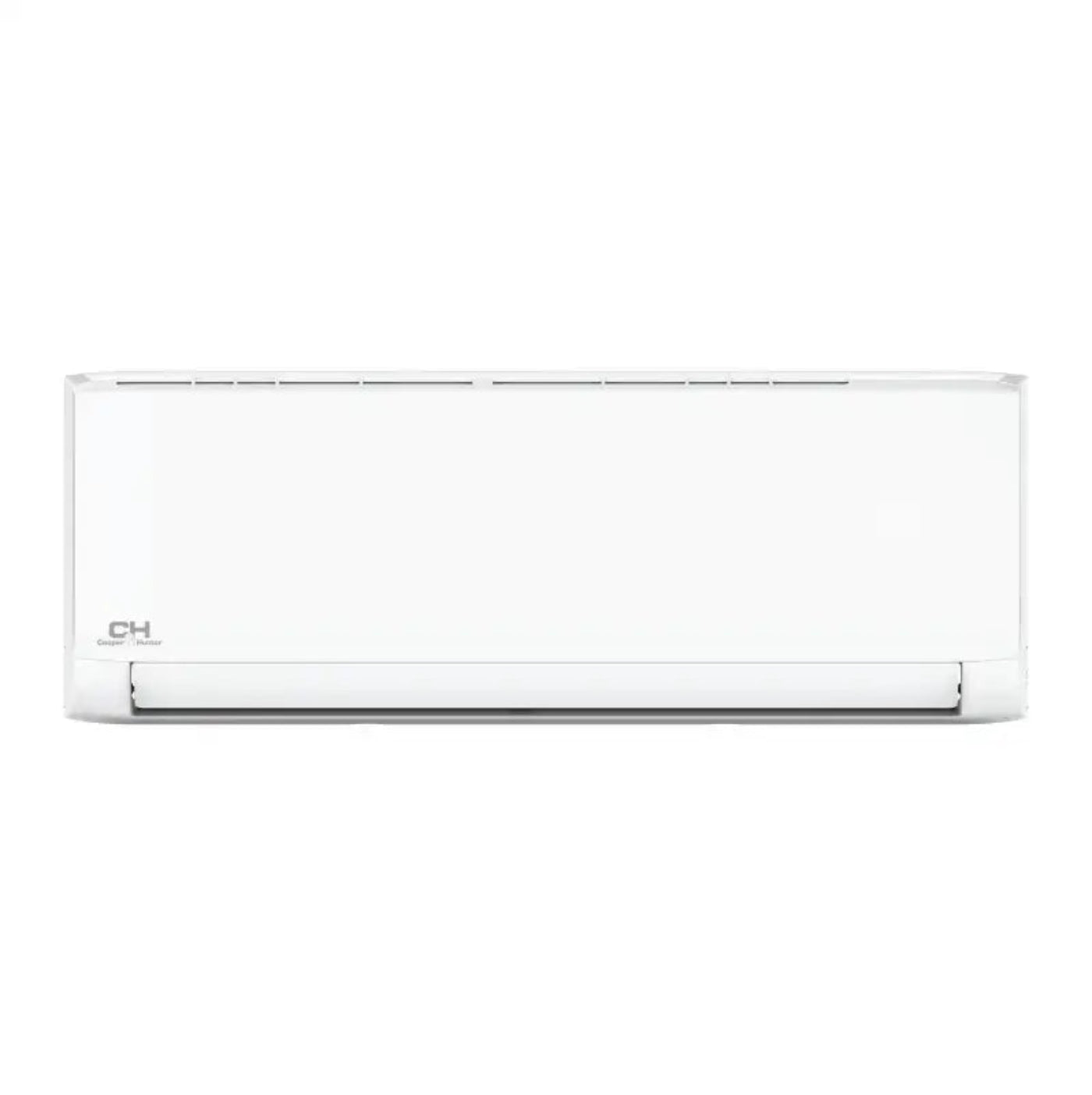

- Zone 1 — Wall Mount (Olivia): CH-R06MOLVWM-230VI (6,000 Btu/h) with remote control
- Zone 2 — Wall Mount (Olivia): CH-R06MOLVWM-230VI (6,000 Btu/h) with remote control
- Zone 3 — Wall Mount (Olivia): CH-R06MOLVWM-230VI (6,000 Btu/h) with remote control
- Wi-Fi Smart Kit (built in) for app control
- Installation kits — choose 16 ft, 25 ft, or 50 ft per zone: copper line set, communication cable, and drain line
Specifications
| Power Supply | 208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
|---|---|
| Cooling — Rated Capacity (Range) | 36,000 Btu/h (9,000–42,000) |
| Heating at 47°F — Rated Capacity (Range) | 37,000 Btu/h (10,000–42,500) |
| Rated Heating at 5°F | 26,000 Btu/h |
| SEER2 / EER2 | 24 / 12 |
| HSPF4 / HSPF5 / COP (47°F) | 9.5 / 7 / 3.5 |
| Outdoor Unit MCA / Max. Fuse | 30.5 A / 35 A |
| Max. Connectable Indoor Units | 5 |
| Outdoor Noise Level | 64.5 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 37.24 × 16.14 × 31.89 in |
| Outdoor Unit Net / Gross Weight | 168.87 / 180.12 lbs |
| Refrigerant Type / Charge | R454B / 120.63 oz |
| Pre-charged Line Length | 125 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor | 262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) | 49.2 ft / 33 ft |
| Operating Range — Cooling / Heating | -13–122°F / -13–75°F outdoor ambient |
What our Experts Think
- Powerful whole-home comfort: The Cooper & Hunter Olivia 36,000 BTU 3-Zone Mini Split delivers efficient heating and cooling for multiple rooms with independent zone control.
- Energy-efficient performance: Advanced inverter technology helps maintain consistent temperatures while reducing energy consumption compared to traditional systems.
- Flexible 3-zone design: Three separate 6,000 BTU wall-mounted indoor units allow personalized comfort settings for bedrooms, offices, and living spaces.
- Eco-friendly refrigerant: Uses R454B refrigerant, a next-generation, lower-GWP option designed for improved environmental performance.
- Quiet and convenient operation: Designed for low-noise comfort with user-friendly controls and reliable year-round performance.
- Built for all seasons: Provides both cooling and heat pump heating, making it a versatile solution for summer and winter comfort.
- Expert recommendation: An excellent choice for homeowners seeking efficient, multi-room climate control without the need for traditional ductwork.
Q&A
Q: What is the cooling capacity of the Cooper & Hunter Olivia 3-Zone Mini Split?
A: This system delivers 36,000 BTU of cooling power with three 6,000 BTU wall-mounted indoor units for multi-room comfort.
Q: Can this mini split provide heating as well as cooling?
A: Yes, it is a heat pump system designed for year-round heating and cooling comfort.
Q: How many zones can this Cooper & Hunter system control?
A: It includes three independent zones, allowing separate comfort control in multiple rooms.
Q: What voltage is required for installation?
A: This unit operates on 208-230V, single-phase, 60Hz power.
Q: Is this system ductless?
A: Yes, the wall-mounted mini split design provides efficient heating and cooling without traditional ductwork.
Q: Is the Cooper & Hunter Olivia 36,000 BTU system suitable for homes?
A: Yes, it is designed for residential multi-room applications requiring flexible zone comfort.
Q: Why choose a 3-zone mini split heat pump?
A: A 3-zone system offers targeted temperature control, energy-efficient operation, and comfort customization for different rooms.
Maintenance Tips
- Clean or replace air filters regularly to maintain airflow and indoor air quality.
- Keep indoor and outdoor units free from dust, dirt, and debris.
- Clean the outdoor condenser coils periodically to support efficient heat transfer.
- Check refrigerant lines and connections for leaks or damage.
- Keep the area around the outdoor unit clear for proper airflow.
- Clean indoor unit louvers and vents to ensure even air distribution.
- Inspect condensate drains and remove clogs to prevent water buildup.
- Avoid blocking indoor units with furniture or curtains for better performance.
- Schedule professional maintenance periodically to improve efficiency and extend system life.
