Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+18K+18K+18K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB18MOLVWMRB18MOLVWMRB18MOLVWM-NO

Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+18K+18K+18K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB18MOLVWMRB18MOLVWMRB18MOLVWM-NO

$5,106.99
$5,106.99 $6,808.32
SAVE 24% Sold out
Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+18K+18K+18K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB18MOLVWMRB18MOLVWMRB18MOLVWM-NO

Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+18K+18K+18K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB18MOLVWMRB18MOLVWMRB18MOLVWM-NO

$5,106.99
$5,106.99 $6,808.32
SAVE 24% Sold out

Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+18K+18K+18K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB18MOLVWMRB18MOLVWMRB18MOLVWM-NO

The Cooper & Hunter 5-Zone Mini Split System offers 60,000 nominal total BTU with a high efficiency SEER2 rating of 22 and built-in Wi-Fi control for seamless temperature management. It features R454B refrigerant and operates effectively in heating conditions as low as -13°F, ensuring reliable performance in cold climates.

Features
  • 5-zone system — the CH-R60MES-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
  • 60,000 BTU nominal system capacity across 5 zones, each on its own remote
  • 22 SEER2 inverter efficiency — current R454B generation
  • Heat pump — heats down to -13°F outdoor ambient
  • R454B refrigerant, factory pre-charged; built-in Wi-Fi control
  • Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console

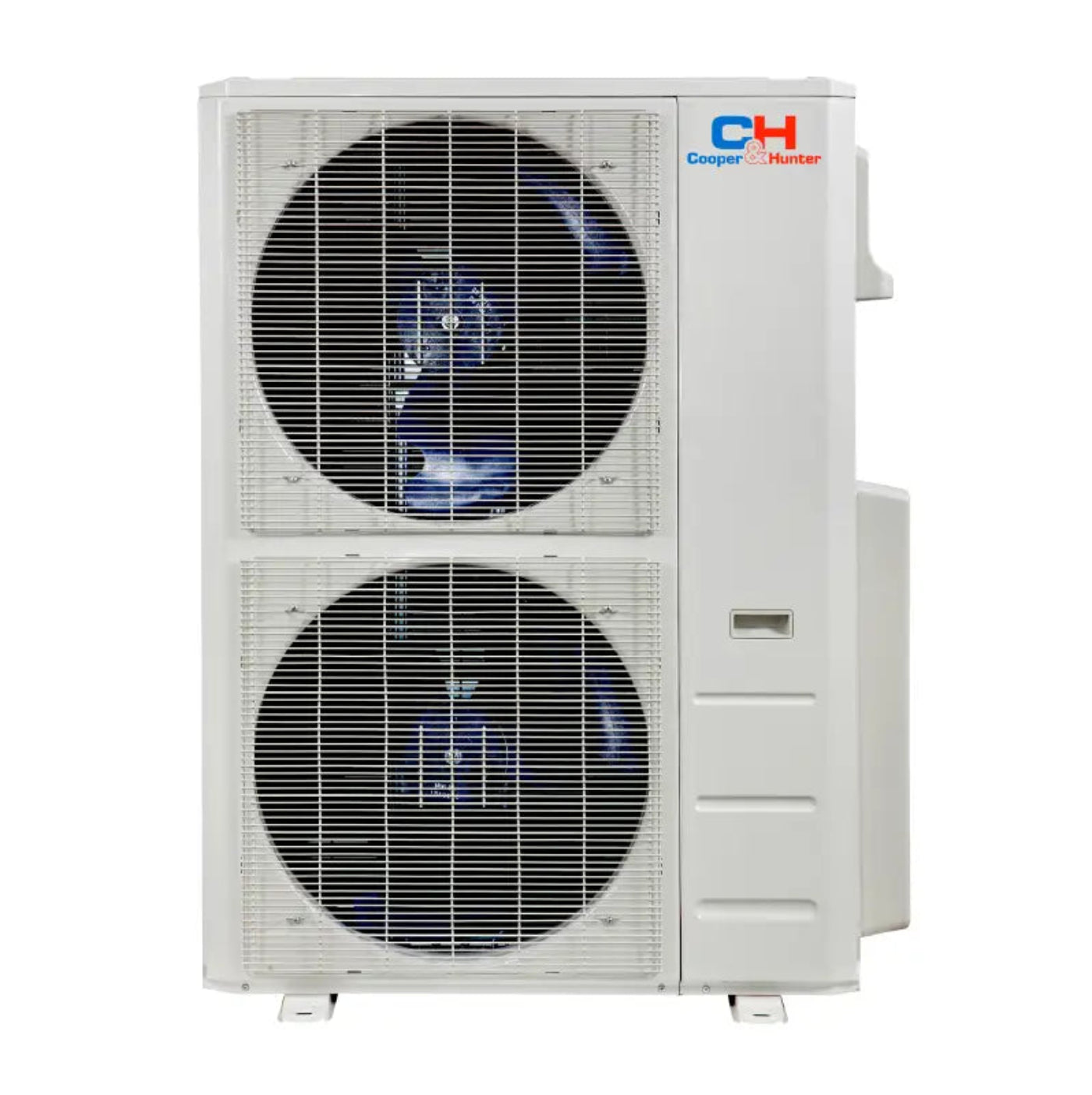

  • Outdoor unit (condenser): CH-R60MES-230VO — 60000 BTU R454B multi-zone outdoor unit
  • Up to 5 indoor units — configured to your selected zones (wall-mount, cassette, slim-duct, or console), each with a remote control
  • Line-set kits — choose copper line-set length per zone at checkout (or supply your own)
Specifications
Power Supply 208/230V, 1 Ph, 60 Hz (voltage range 187-253V)
Cooling — Rated Capacity (Range) 60,000 Btu/h (19,000–62,000)
Heating at 47°F — Rated Capacity (Range) 60,000 Btu/h (20,000–60,000)
Rated Heating at 5°F 39,000 Btu/h
SEER2 / EER2 22 / 10
HSPF4 / HSPF5 / COP (47°F) 9.5 / 7.4 / 3.7
Outdoor Unit MCA / Max. Fuse 36 A / 40 A
Max. Connectable Indoor Units 6
Outdoor Noise Level 65 dB(A)
Outdoor Unit Dimensions (W×D×H) 37.48 × 16.34 × 52.48 in
Outdoor Unit Net / Gross Weight 237.88 / 270.28 lbs
Refrigerant Type / Charge R454B / 151.68 oz
Pre-charged Line Length 150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe)
Max. Total Pipe Length / Max. to One Indoor 262.4 ft / 114.8 ft
Max. Height Difference (Indoor–Outdoor / Between Indoors) 49.2 ft / 33 ft
Operating Range — Cooling / Heating -13–122°F / -13–75°F outdoor ambient
What our Experts Think
  • Powerful Whole-Home Comfort – The 60,000 BTU 5-zone system (9K + 9K + 18K + 18K + 18K) provides flexible heating and cooling for multiple rooms with independent zone control.
  • Energy-Efficient Inverter Technology – Variable-speed inverter operation adjusts output automatically to maintain comfort while improving energy efficiency.
  • Advanced R454B Refrigerant – Uses next-generation R454B refrigerant for efficient performance with reduced environmental impact.
  • Reliable Heating & Cooling All Year – Heat pump technology delivers dependable comfort in both warm and cold seasons, with operation down to approximately -13°F.
  • Smart Multi-Zone Control – Five indoor units allow personalized temperature settings for bedrooms, living areas, offices, and larger spaces.
  • Expert Verdict – A strong choice for large homes and multi-room applications, combining high capacity, efficient operation, and customized comfort in one system.

Q&A

Q: What is the total capacity of this mini split system?
A: This 60,000 BTU multi-zone system includes five indoor units (9K+9K+18K+18K+18K) to provide efficient heating and cooling for multiple areas.

Q: Can each zone be controlled separately?
A: Yes. Each indoor unit offers independent temperature control for personalized comfort in every room.

Q: Does this system provide heating and cooling?
A: Yes. The heat pump system provides reliable cooling and heating for year-round climate control.

Q: What refrigerant does this system use?
A: It uses R454B refrigerant, offering improved efficiency and reduced environmental impact compared with older refrigerants.

Q: Is this system energy efficient?
A: Yes. Inverter technology adjusts compressor output to help maintain comfort while reducing energy use.


Maintenance Tips
  • Clean the air filters every 2–4 weeks to maintain strong airflow, efficient cooling, and heating performance.
  • Keep indoor units and the outdoor condenser clean by removing dust, leaves, and debris to support reliable operation.
  • Clean the indoor unit surfaces and louvers with a soft, damp cloth; avoid abrasive cleaners.
  • Inspect condensate drain lines regularly to help prevent clogs, leaks, and moisture issues.
  • Schedule professional maintenance annually for refrigerant checks, electrical inspection, and overall system efficiency.
