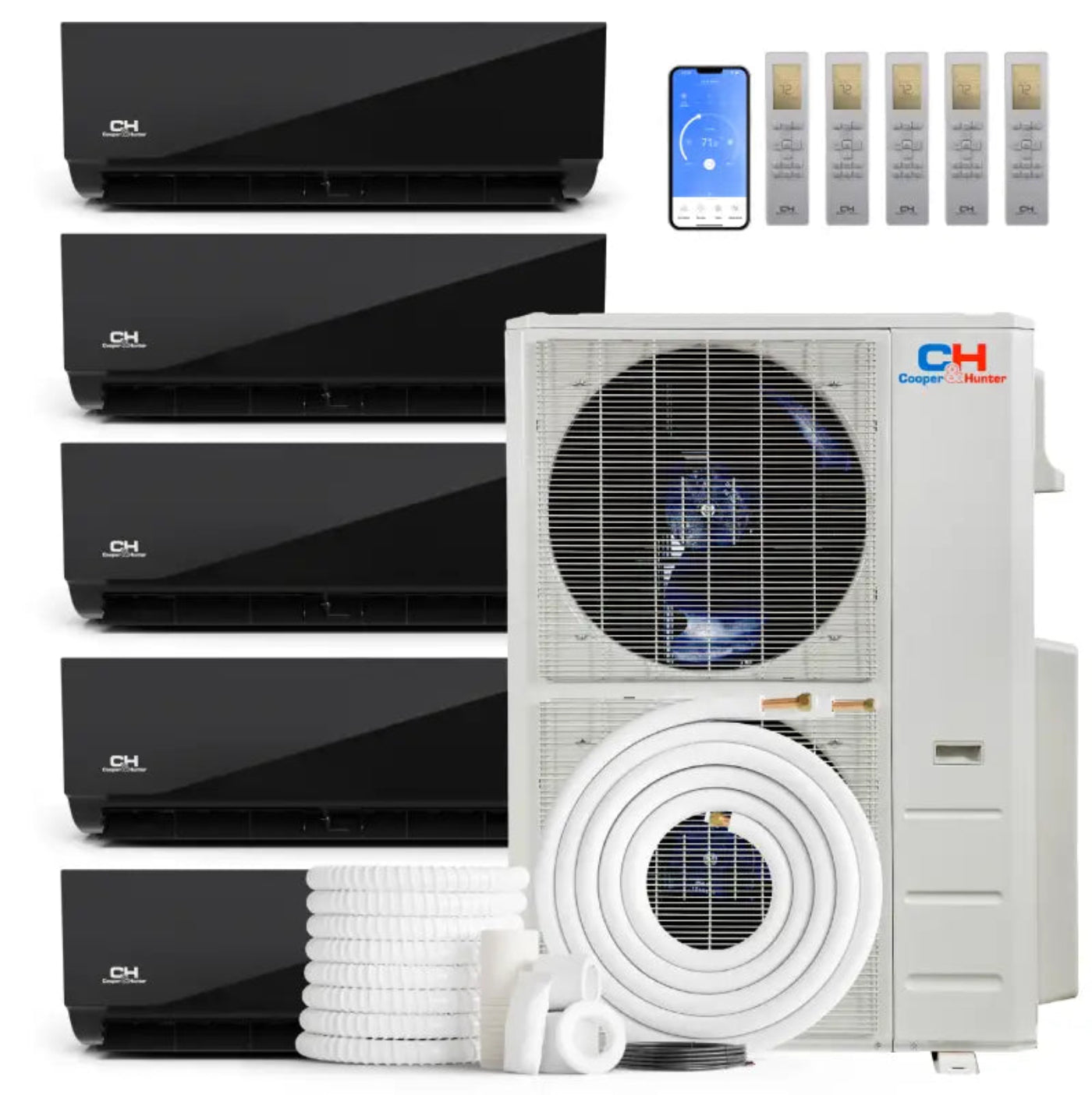

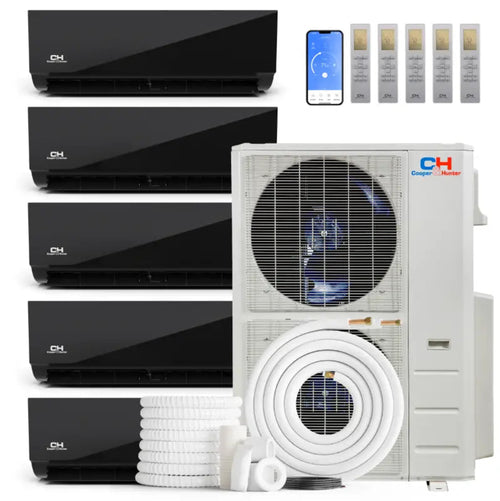

Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+12K+18K+18K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB12MOLVWMRB18MOLVWMRB18MOLVWM-NO
Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+12K+18K+18K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB12MOLVWMRB18MOLVWMRB18MOLVWM-NO
Couldn't load pickup availability
Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+12K+18K+18K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB12MOLVWMRB18MOLVWMRB18MOLVWM-NO
Cooper & Hunter 5 Zone 60,000 BTU Wall Mounted Mini Split AC R454B Midnight 9K+9K+12K+18K+18K - CH-R60MES-230VORB09MOLVWMRB09MOLVWMRB12MOLVWMRB18MOLVWMRB18MOLVWM-NO
The Cooper & Hunter 5-Zone Mini Split System offers 60,000 nominal total BTU with a high efficiency SEER2 rating of 22 and built-in Wi-Fi control for seamless temperature management. It features R454B refrigerant and operates effectively in heating conditions as low as -13°F, ensuring reliable performance in cold climates.
Features
- 5-zone system — the CH-R60MES-230VO outdoor unit supports up to 6 independently controlled indoor units; port adapters included, no branch boxes required
- 60,000 BTU nominal system capacity across 5 zones, each on its own remote
- 22 SEER2 inverter efficiency — current R454B generation
- Heat pump — heats down to -13°F outdoor ambient
- R454B refrigerant, factory pre-charged; built-in Wi-Fi control
- Mix any Cooper & Hunter head types — wall mount, ceiling cassette, slim duct, floor/ceiling console

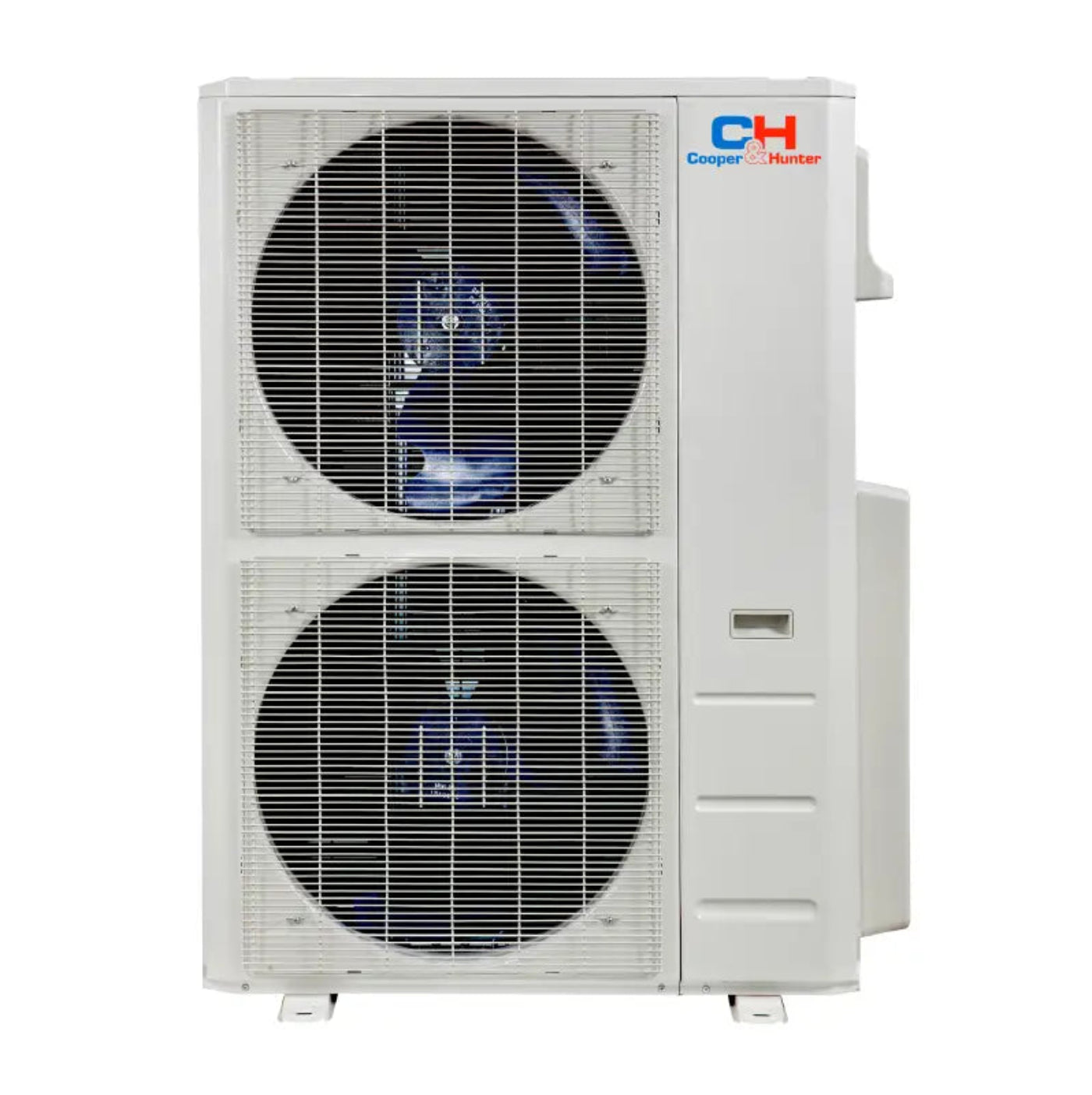

- Outdoor unit (condenser): CH-R60MES-230VO — 60000 BTU R454B multi-zone outdoor unit

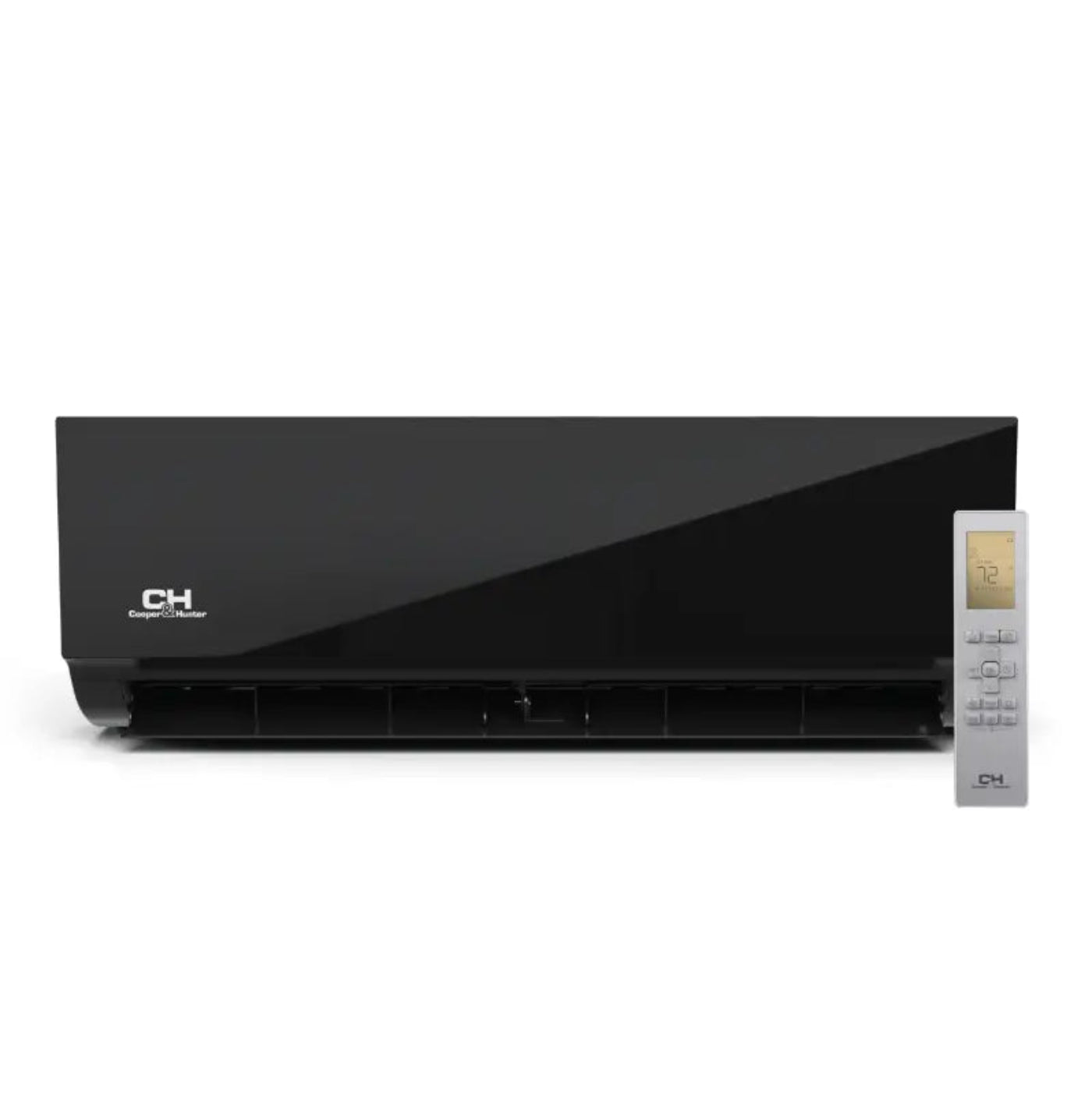

- Up to 5 indoor units — configured to your selected zones (wall-mount, cassette, slim-duct, or console), each with a remote control
- Line-set kits — choose copper line-set length per zone at checkout (or supply your own)
Specifications
| Power Supply | 208/230V, 1 Ph, 60 Hz (voltage range 187-253V) |
|---|---|
| Cooling — Rated Capacity (Range) | 60,000 Btu/h (19,000–62,000) |
| Heating at 47°F — Rated Capacity (Range) | 60,000 Btu/h (20,000–60,000) |
| Rated Heating at 5°F | 39,000 Btu/h |
| SEER2 / EER2 | 22 / 10 |
| HSPF4 / HSPF5 / COP (47°F) | 9.5 / 7.4 / 3.7 |
| Outdoor Unit MCA / Max. Fuse | 36 A / 40 A |
| Max. Connectable Indoor Units | 6 |
| Outdoor Noise Level | 65 dB(A) |
| Outdoor Unit Dimensions (W×D×H) | 37.48 × 16.34 × 52.48 in |
| Outdoor Unit Net / Gross Weight | 237.88 / 270.28 lbs |
| Refrigerant Type / Charge | R454B / 151.68 oz |
| Pre-charged Line Length | 150 ft (add 0.16 oz/ft for 1/4 in liquid pipe / 0.32 oz/ft for 3/8 in liquid pipe) |
| Max. Total Pipe Length / Max. to One Indoor | 262.4 ft / 114.8 ft |
| Max. Height Difference (Indoor–Outdoor / Between Indoors) | 49.2 ft / 33 ft |
| Operating Range — Cooling / Heating | -13–122°F / -13–75°F outdoor ambient |
What our Experts Think
- Whole-home comfort powerhouse: The Cooper & Hunter Olivia Midnight 60,000 BTU 5-Zone Mini Split delivers high-capacity heating and cooling for large homes, offices, and multi-room applications.
- Customizable 5-zone control: The 9K + 9K + 12K + 18K + 18K BTU wall-mounted configuration allows independent temperature control in different areas for personalized comfort.
- High-performance inverter technology: Variable-speed inverter operation helps maintain stable temperatures while improving energy efficiency and reducing unnecessary power consumption.
- Eco-friendly R454B refrigerant: Uses next-generation R454B refrigerant designed to provide improved environmental performance with lower global warming potential.
- Large-space heating and cooling: With a 60,000 BTU outdoor unit, this system is engineered for demanding residential and light commercial comfort needs.
- Quiet, stylish indoor units: The Midnight series combines a sleek dark finish with convenient features designed for comfortable, discreet operation.
- Ductless installation advantage: Ideal for homes without existing ductwork, additions, renovations, and spaces requiring separate climate zones.
- Expert recommendation: A premium choice for customers who need powerful, flexible, and energy-conscious multi-zone climate control with modern inverter heat pump technology.
Q&A
Q: What is the cooling capacity of the Cooper & Hunter Midnight 5-Zone Mini Split System?
A: This system delivers 60,000 BTU of cooling capacity with five wall-mounted indoor units for efficient multi-room climate control.
Q: What are the indoor unit sizes included in this 5-zone system?
A: It includes 9K+9K+12K+18K+18K BTU wall-mounted indoor units, allowing customized comfort across five separate zones.
Q: Does this mini split provide both heating and cooling?
A: Yes, it is an inverter heat pump system designed for year-round air conditioning and heating.
Q: What refrigerant does this Cooper & Hunter mini split use?
A: It uses R454B refrigerant, a next-generation refrigerant designed for improved environmental performance.
Q: What voltage is required for this system?
A: The system operates on 208-230V, single-phase, 60Hz power.
Q: Is this a ductless mini split air conditioner?
A: Yes, the wall-mounted ductless design provides flexible installation without traditional ductwork.
Q: Can each zone be controlled separately?
A: Yes, the 5-zone configuration allows independent temperature control for different rooms or areas.
Q: Is WiFi control included with this system?
A: Yes, compatible Cooper & Hunter Midnight series systems include smart control features with WiFi capability.
