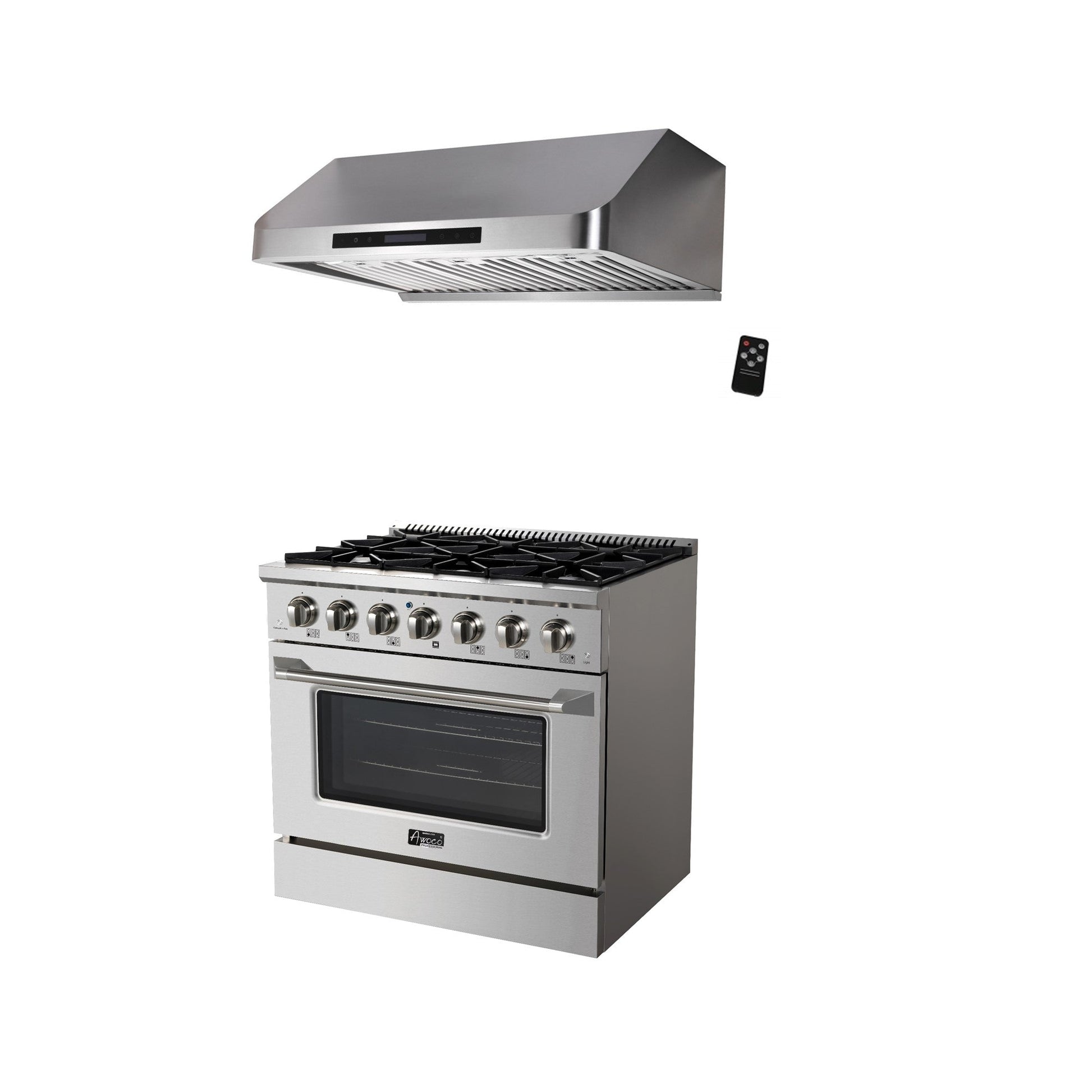

Combo Awoco 36” Freestanding 6 Burners Range with 36'' RH-S10-36E Under Cabinet Range Hood - JK36A1-T-NG+RH-S10-36E
-

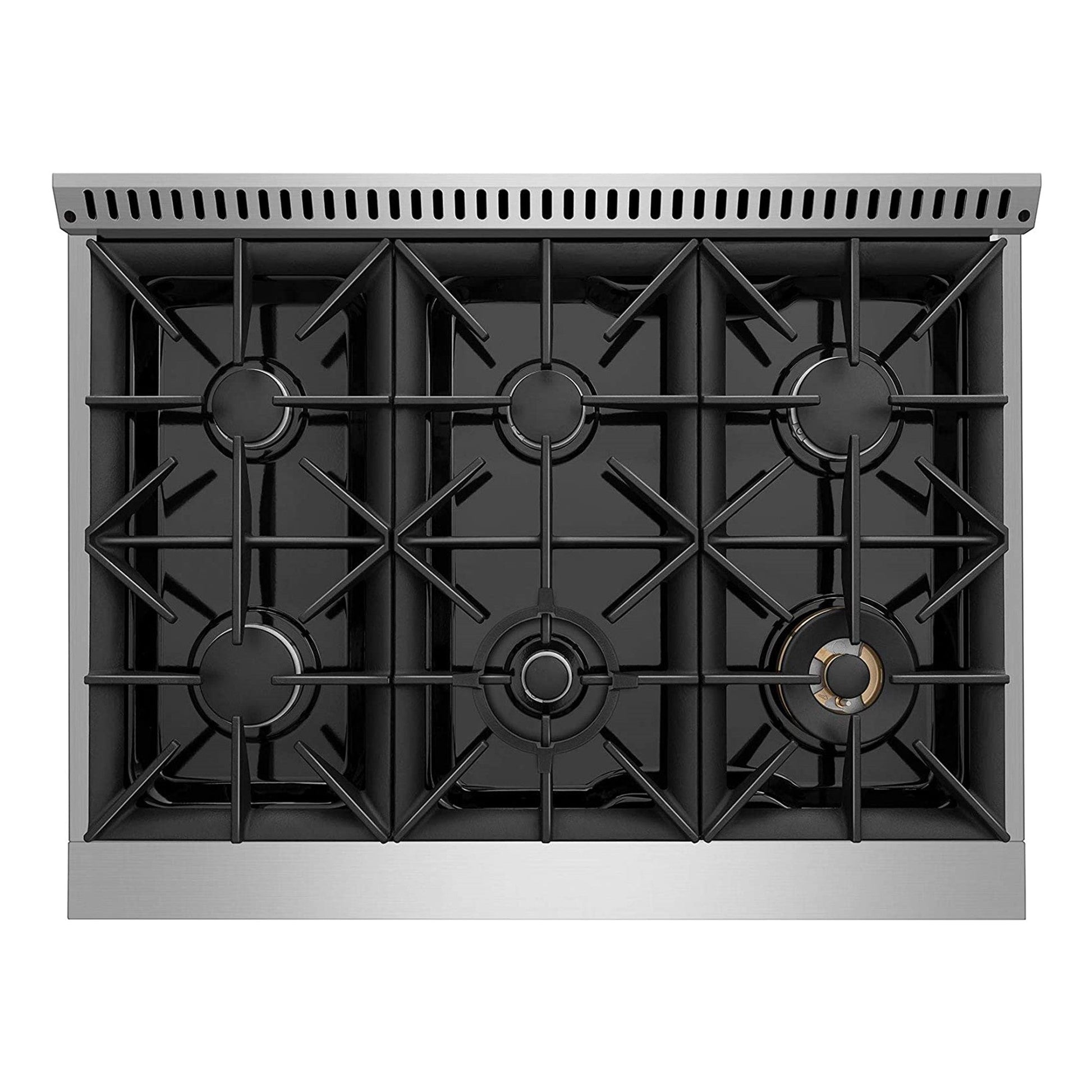

High BTU 6 Burners - High-performance gas burners which allow you to cook from a high heat for boiling, frying, or searing to a low simmer for delicate sauces. Includes two 15,000 BTU rapid burners, one 12,000 BTU and two 9,000 BTU semi-rapid burners with one 6,000 BTU axillary burner.
-

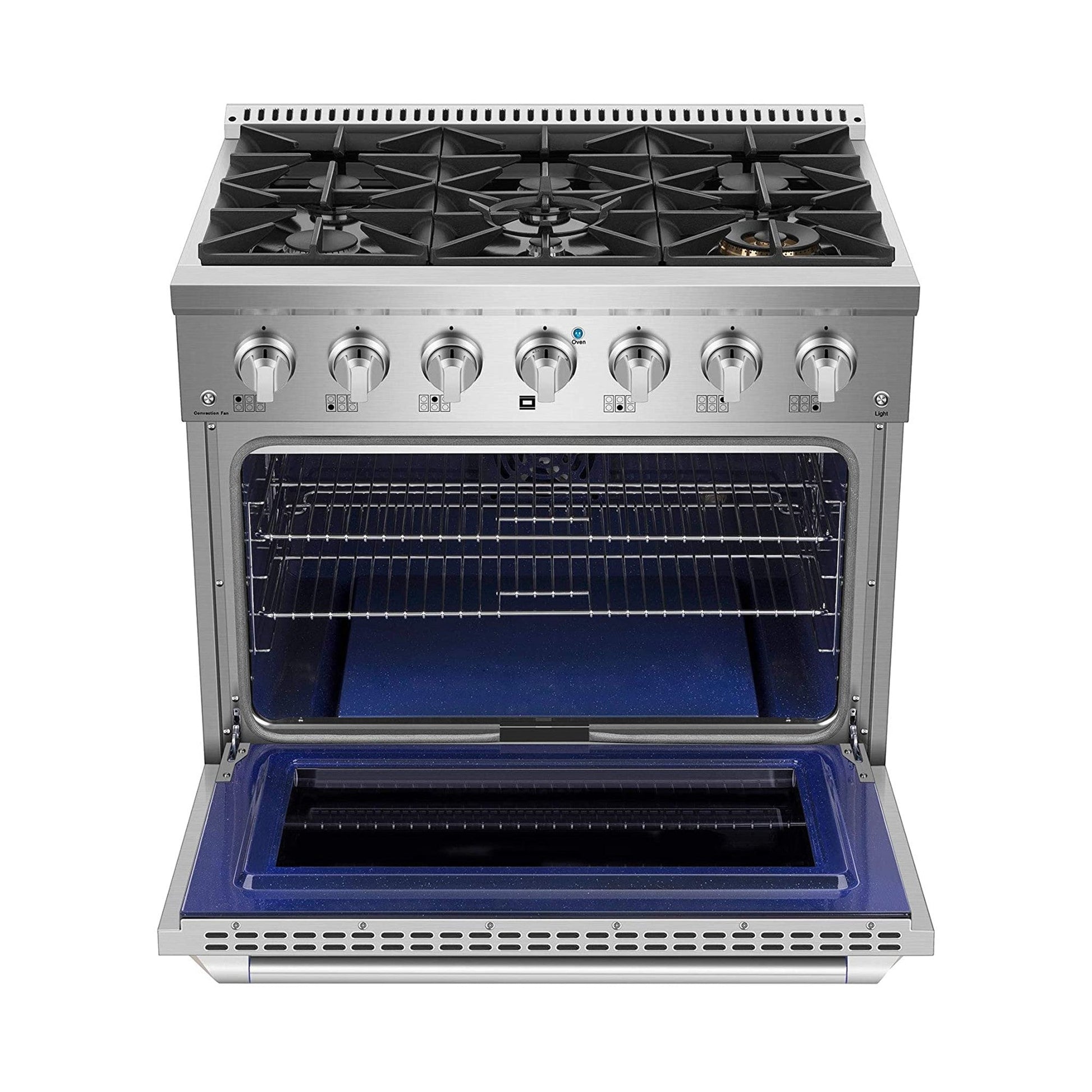

Convection Oven - Cook and bake like a pro with the 4.5 cu ft. extra-large convection oven with 2 racks and an extra-large oven window. Oven broiler: 10,000 BTU. U shape stove burner: 22,000 BTU.
-

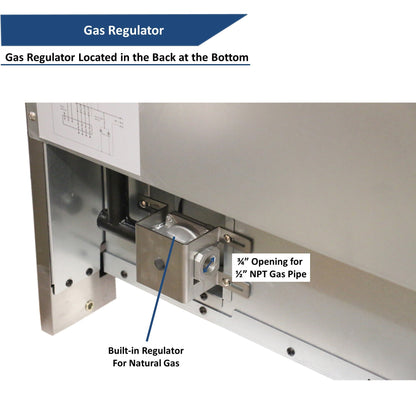

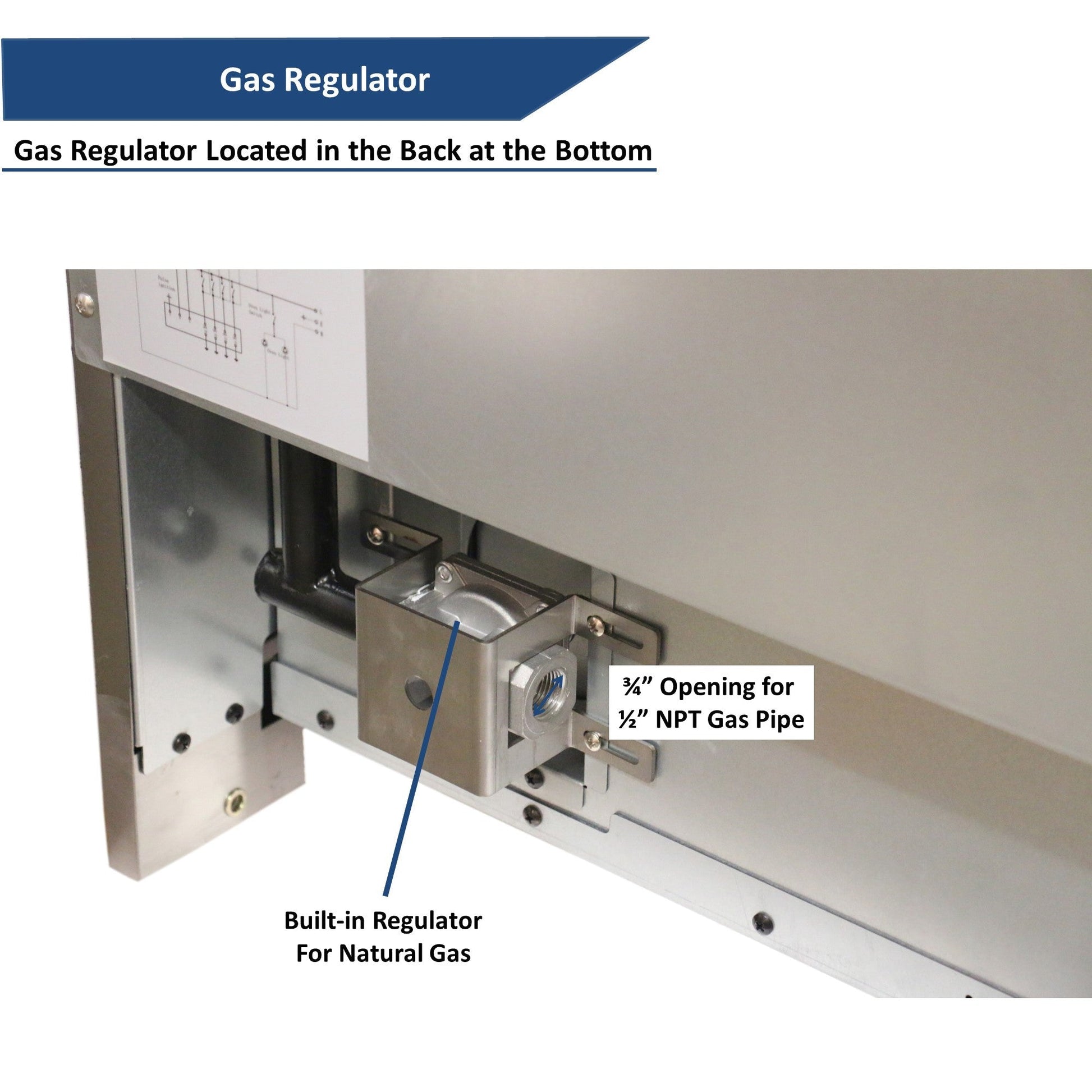

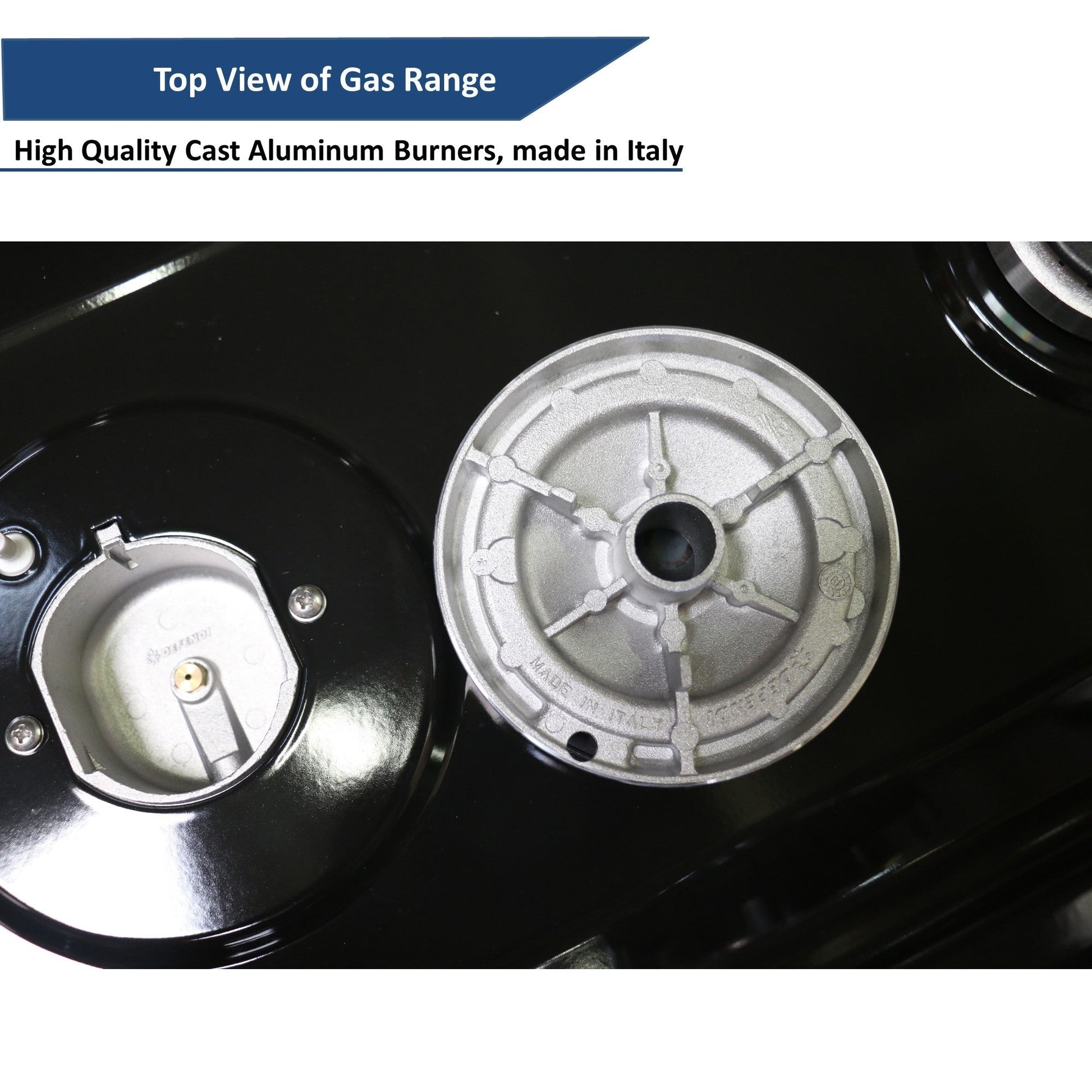

Heavy Duty Construction - Constructed of stainless steel, heavy duty cast iron grates for heat retention and distribution. High quality cast aluminum burners, made in Italy. Gas regulator is included.
-
[Safety Bracket] - The range will not tip during normal use, however the range can tip if you apply too much force or weight to the open door. The anti-tip bracket prevents the range from tipping over.
-
[2 Years Limited Parts Warranty] - Overall Dimensions: 36”W x 28-¾”D x 40”H. 297 lbs. Interior Oven: 30”W x 18”D x 16”H. Depth with Door Open: 44”. Voltage: 120V.

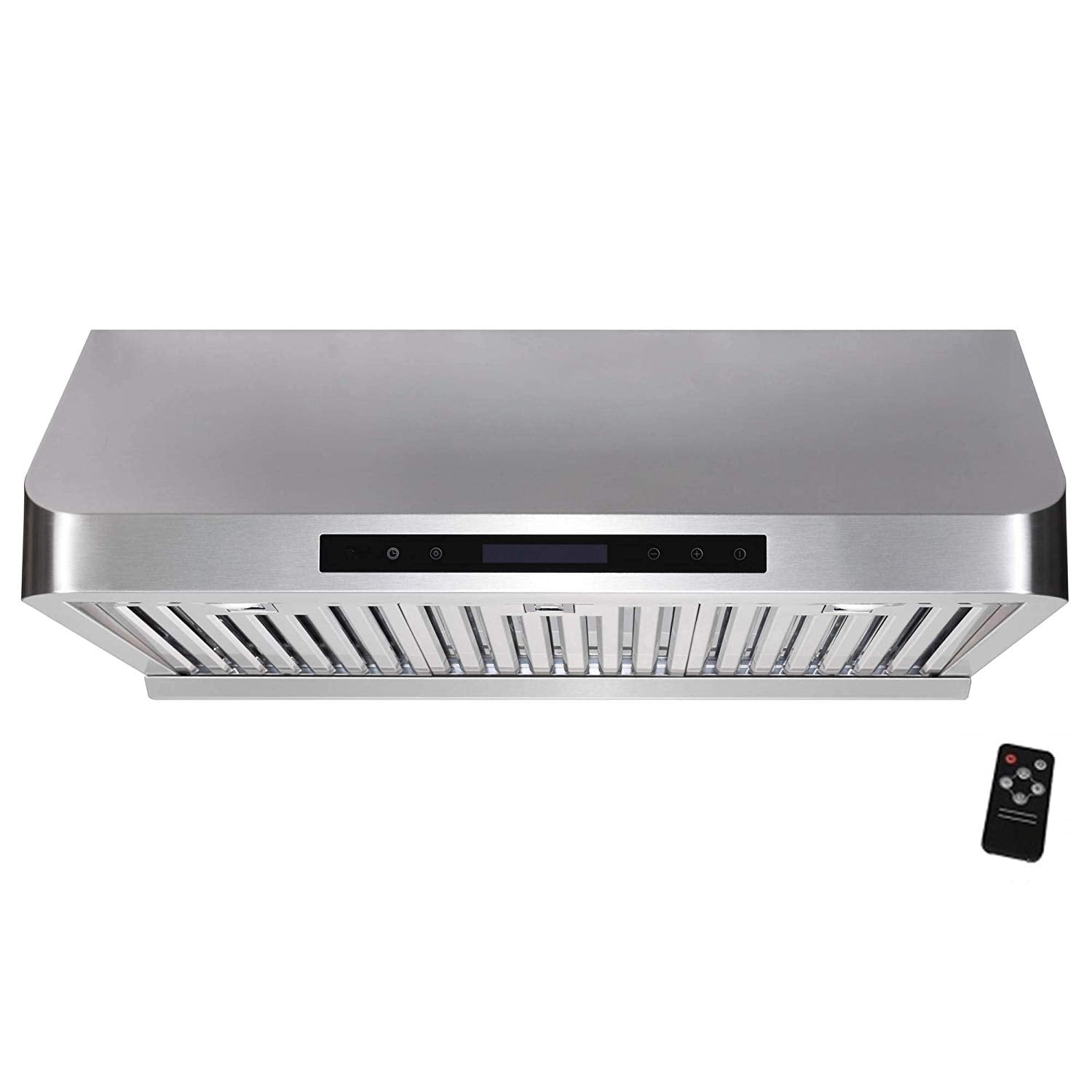

- SUPREME SERIES 10” HIGH, 8” ROUND TOP VENT, 1mm THICK - under cabinet, high quality 1 mm thick stainless steel with brush finishing. Recommended installation height of the range hood is 27”, minimum should be 24” and the maximum should be no more than 30”.

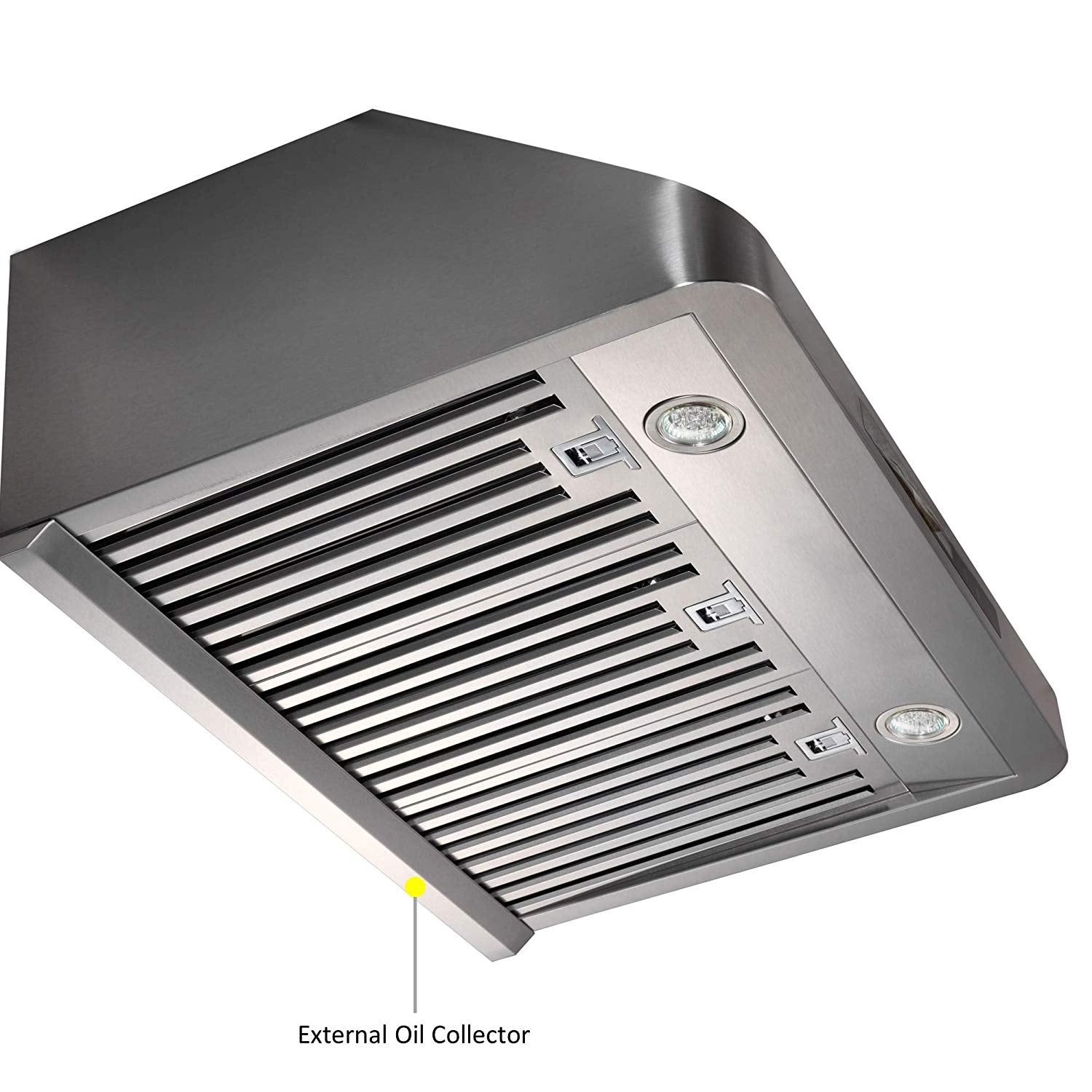

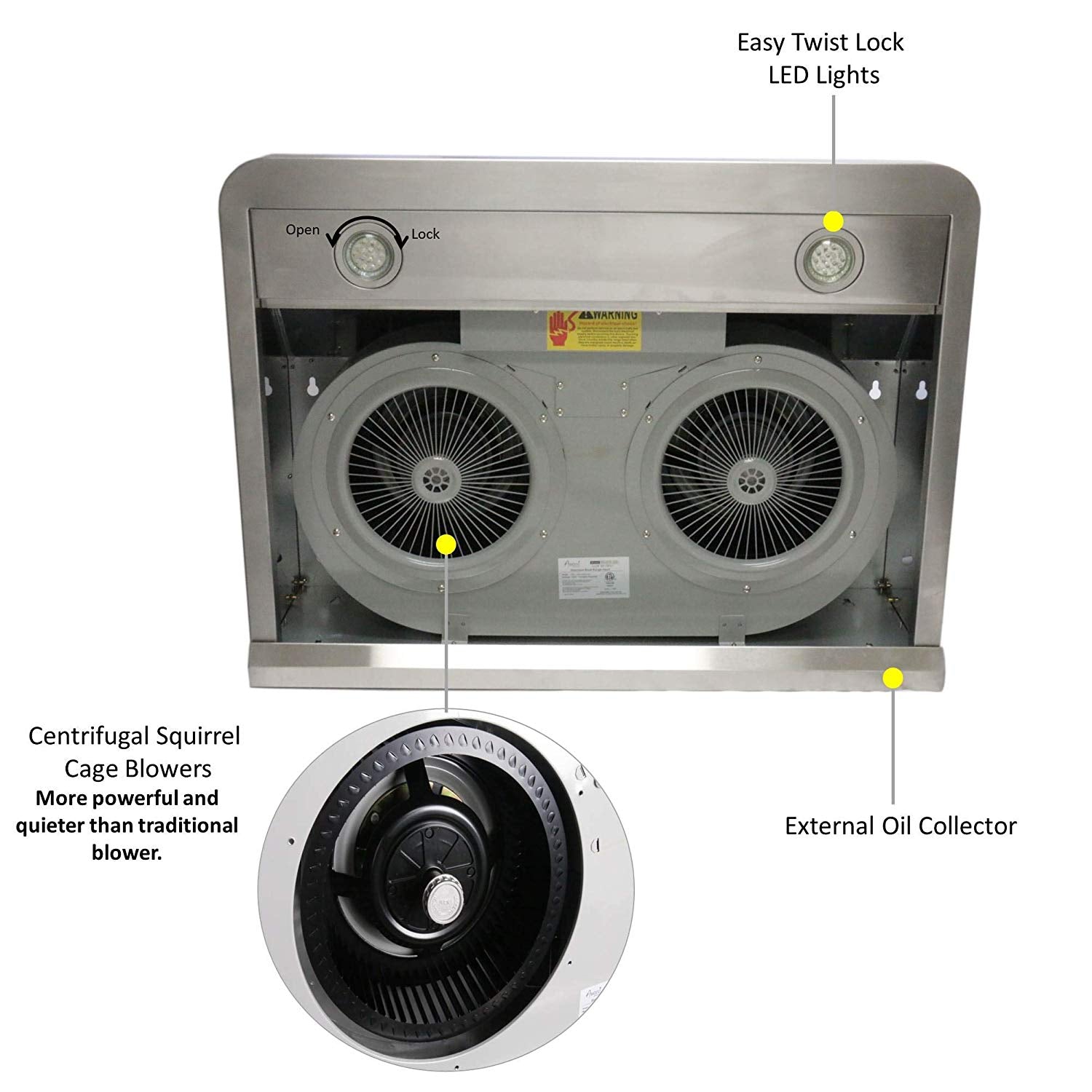

- EXTERNAL OIL COLLECTOR & TWIST LOCK LED LIGHTS - Comes with easily removable external oil collector located in the bottom of the hood. 1 air damper is included on the top. 2 of 3W twist lock removable energy saving cold bright LED lights. Light button operates independently from the power button. It works even when the range hood is not turned on. LED light indicator will illuminate in the LCD display once the lamps are turned on.

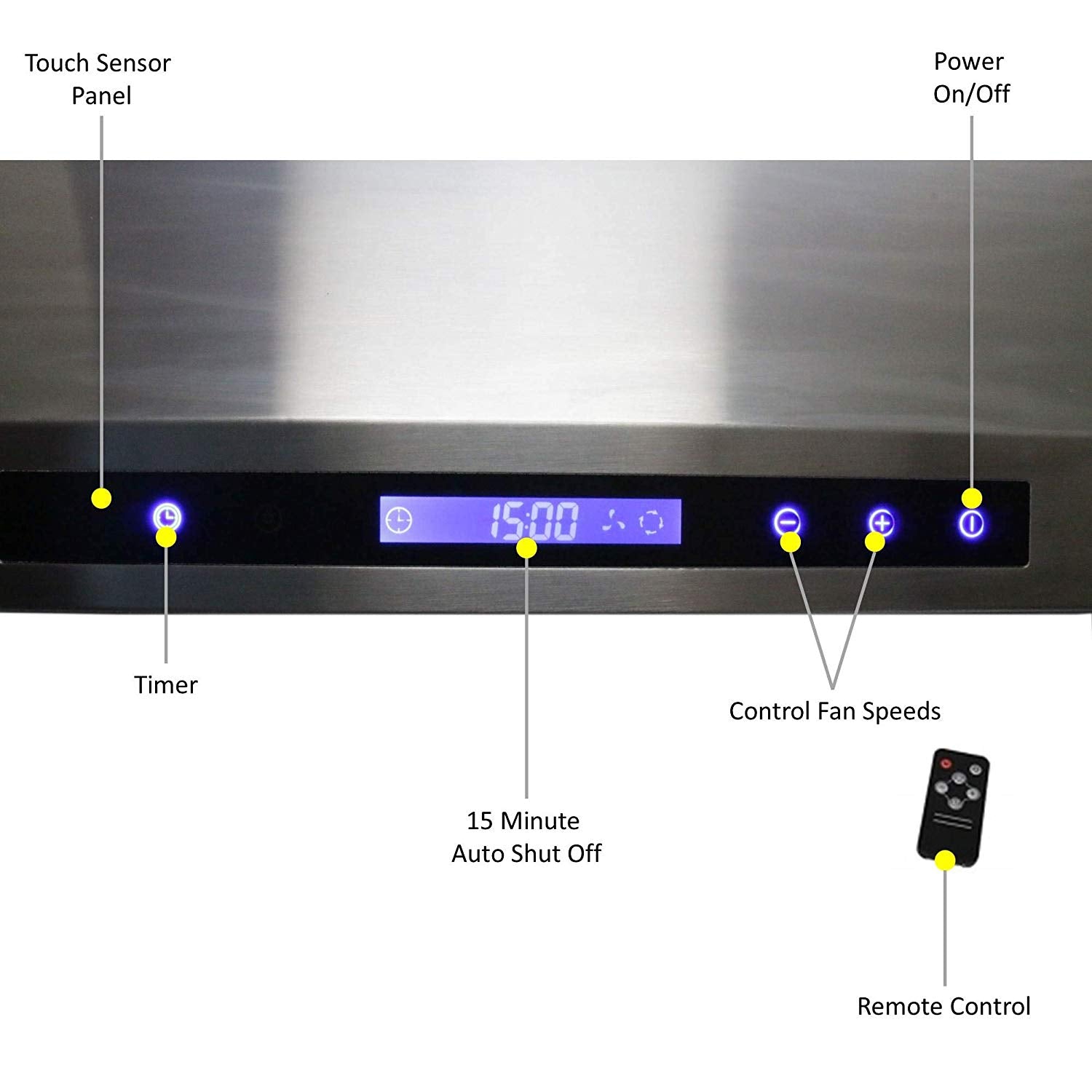

- 4 SPEEDS POWERFUL OPERATION WITH REMOTE CONTROL - 4 speeds (385/590/815/1000 CFM), touch sensor panel with remote control sensor receives infrared signal from the remote. 2 Motors, Centrifugal Squirrel Cage Blowers. More powerful and quieter than traditional blower. Power rating: 120V/60Hz, 200W Min. 246W Max. Power cord with plug is included. Noise level at low: 46 dB, 4.0 sones. Noise level at high: 64 dB, 12.0 sones.

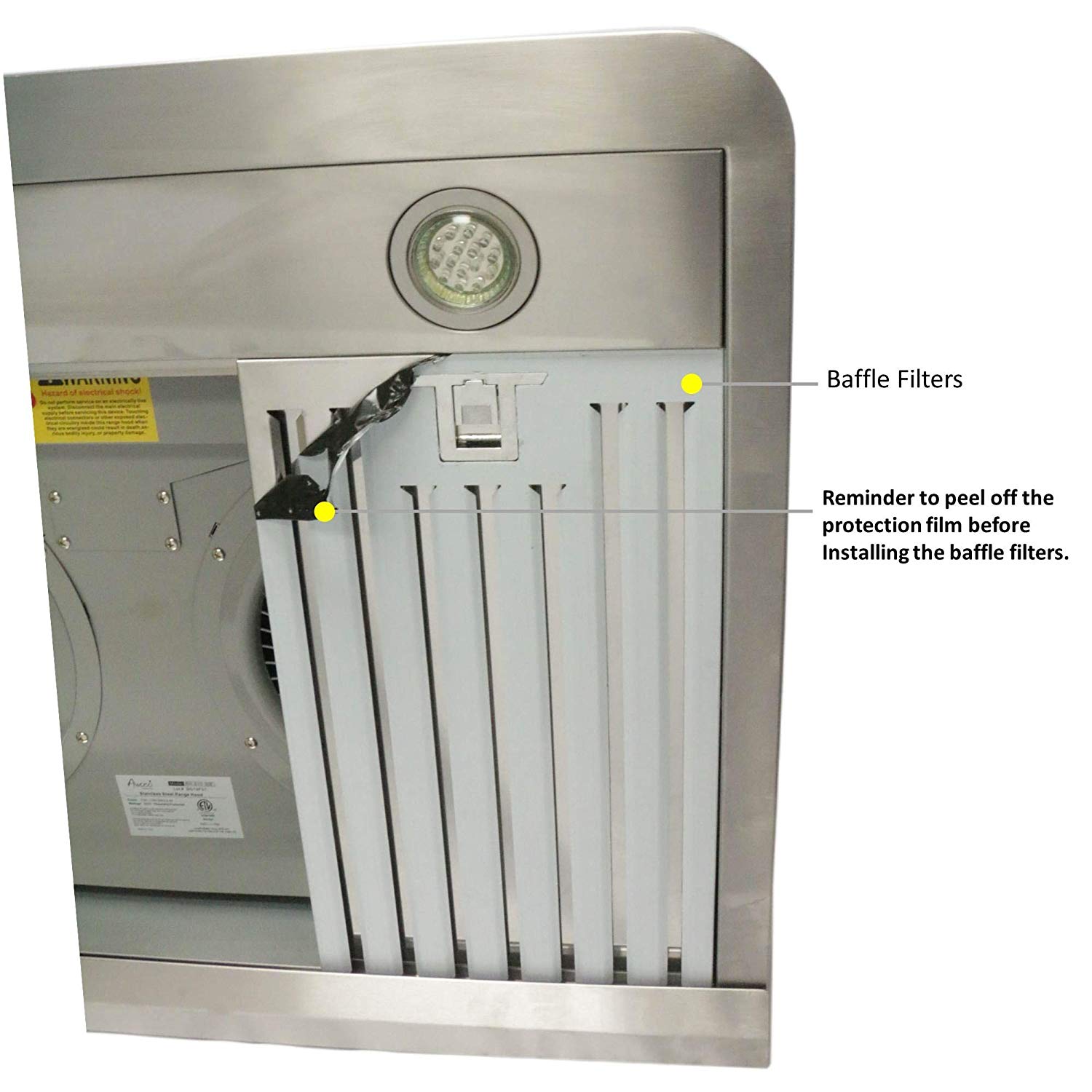

- 3 DISHWASHER SAFE BAFFLE FILTERS, 1-15 MINUTES AUTO SHUT OFF - Dishwasher safe easily removable commercial style stainless steel baffle air filters. The oil is contained in the baffle filters and the external oil collector. Up to 15 minutes timer delayed auto shut off to vent the leftover smoke after done cooking.

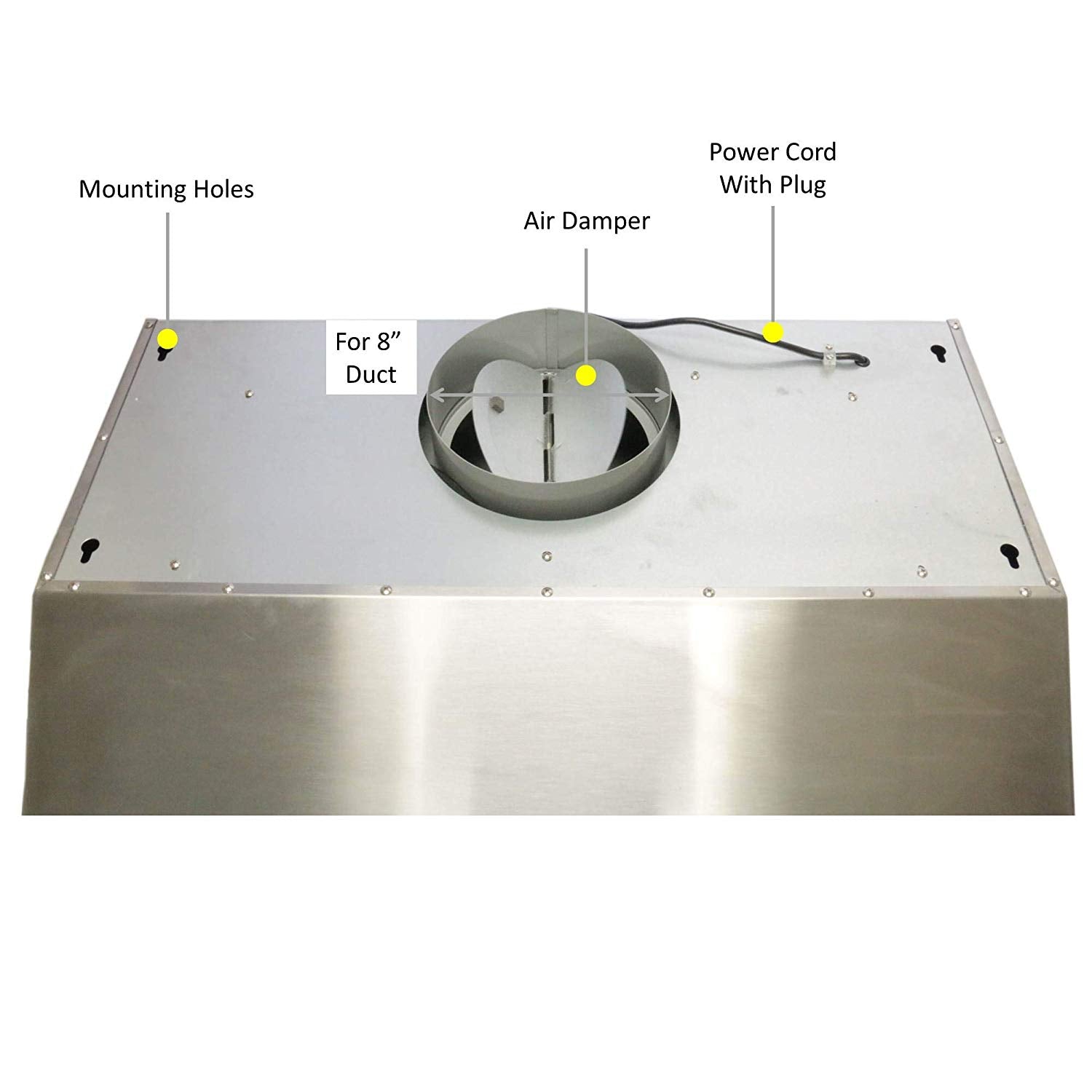

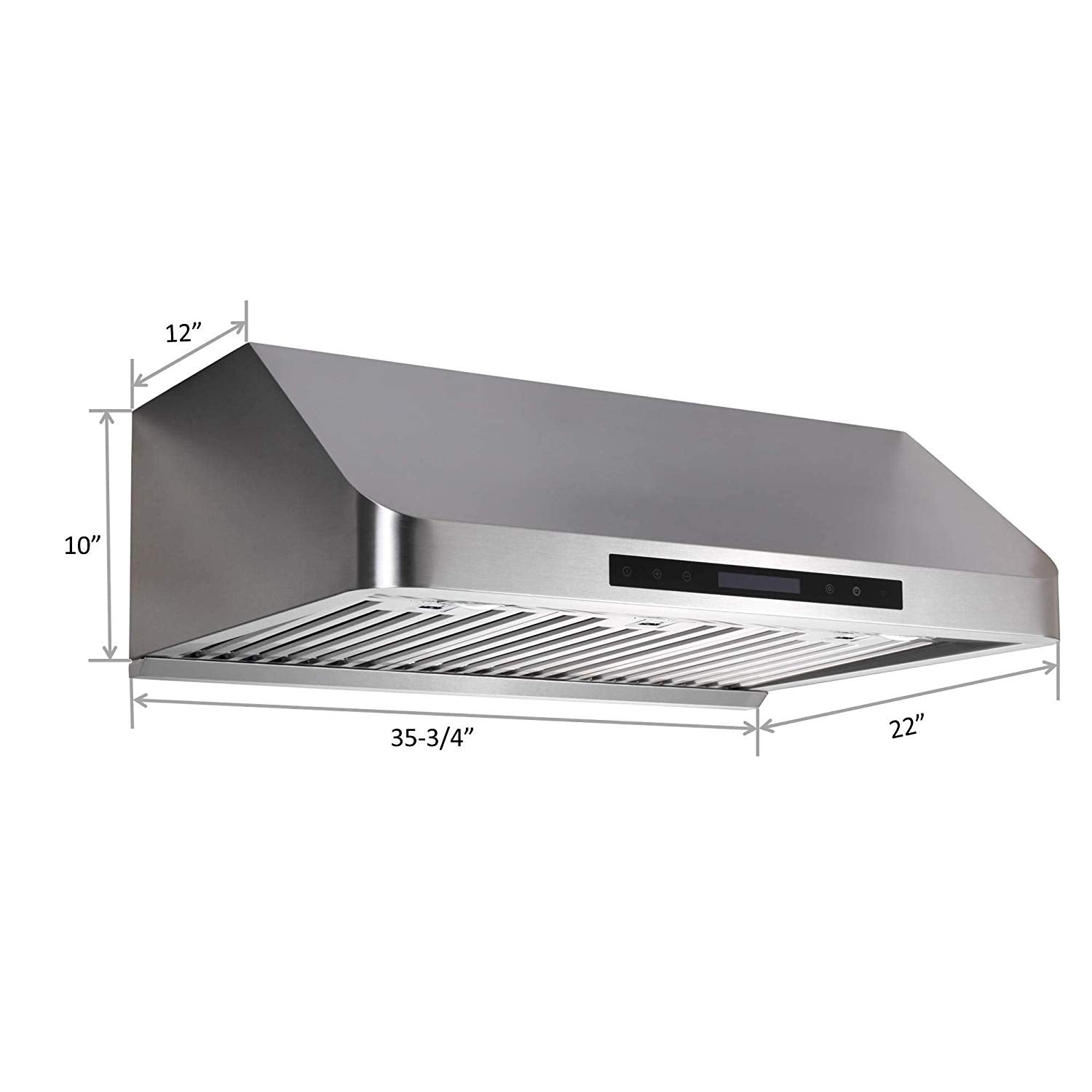

- 1 YEAR LIMITED WARRANTY - ETL Certified. Free parts, repair or exchange within 1 year. Awoco high quality product reputation and supreme customer service is a guarantee. Dimensions: 35-1/2"W x 22"D x 10"H. For your convivence the 8 inches diameter x 5 feet long flexible aluminum foil duct is included.
Specifications
Product Type: Freestanding
Number of Burners: 6
Cleaning Type: Manual Clean
Cooktop Surface: Deep Recessed
Convection Oven: Yes
Number of Ovens: Single Oven
Overall Oven Capacity: 4.5 Cubic Feet

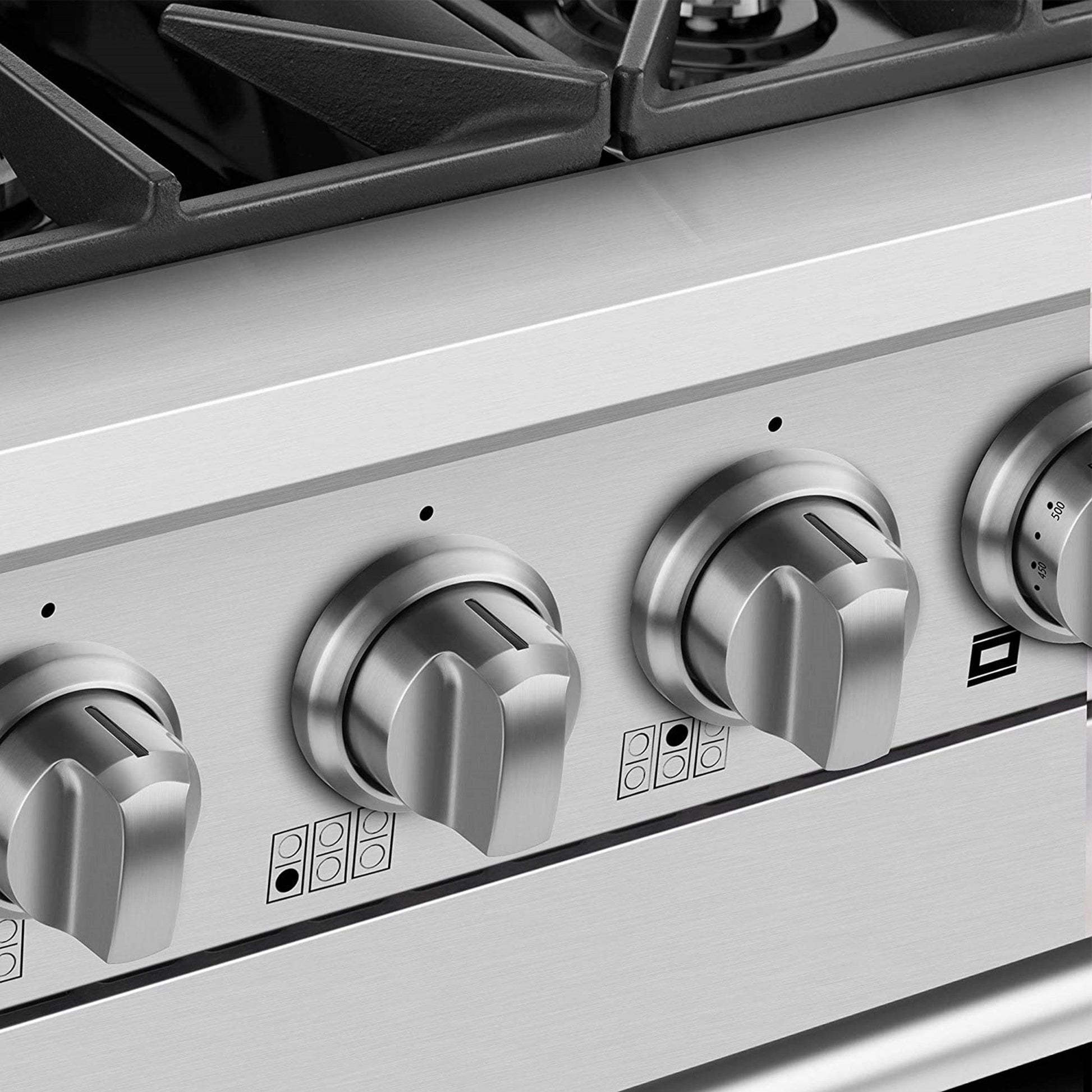

Control Type: Knobs
Control Location: Front
Primary Material: Stainless Steel
LED Display: No
Number of Racks: 2
Broiler: Yes
Bake Element: Yes
Dual Cooktop Elements: Yes
Griddle Included: No
Interior Oven Light: Yes
Downdraft Exhaust: No
Power Cord Included: Yes
Supplier Intended and Approved Use: Residential Use
Soft Close Door: Yes
Country of Origin: Made in China
Product Manual
VIEW / DOWNLOAD
Videos
VIEW / DOWNLOAD
What Our Experts Think
-
Efficient Ventilation – High CFM airflow removes smoke, grease, and odors effectively.
-
Under-Cabinet Design – Compact yet powerful, fitting seamlessly into kitchen spaces.
-
Bright LED Lights – Improves cooktop visibility while saving energy.
-
Baffle Filters – Dishwasher-safe, ensuring easy maintenance and long-lasting performance.
Q&A
Q: What is the airflow capacity?
A: It features a high-performance motor with multiple speed settings for effective smoke and odor removal.
Q: What type of filters does it use?
A: It comes with stainless steel baffle filters that are dishwasher-safe for easy maintenance.
Q: Does it include lighting?
A: Yes, it has LED lights to improve cooking visibility.
Q: What type of ventilation does it support?
A: It requires a 6-inch round duct for venting outside.
Q: Is installation easy?
A: Yes, it’s designed for under-cabinet installation with all necessary mounting hardware included.
Maintenance Tips
-
Wash Baffle Filters – Clean every 3–4 weeks in warm soapy water or dishwasher to maintain airflow.
-
Wipe Down Stainless Steel – Use a microfiber cloth and stainless steel cleaner to prevent stains.
-
Check & Clean Blower – Inspect for grease buildup every 2–3 months to ensure efficient suction.
-
Test LED Lights – Replace with compatible LEDs if dim or flickering.
-
Ensure Proper Venting – Keep the duct system free of grease and obstructions.
-
Use Correct Speed Settings – Lower speeds for light cooking, higher speeds for heavy grease and smoke.
-
Run After Cooking – Let the hood run for 5–10 minutes to clear lingering odors and moisture.
