Closeout Durston 1196 Power Drawbench 1800-110V 72" (Usable 54") - 999.127212P

Closeout Durston 1196 Power Drawbench 1800-110V 72" (Usable 54") - 999.127212P

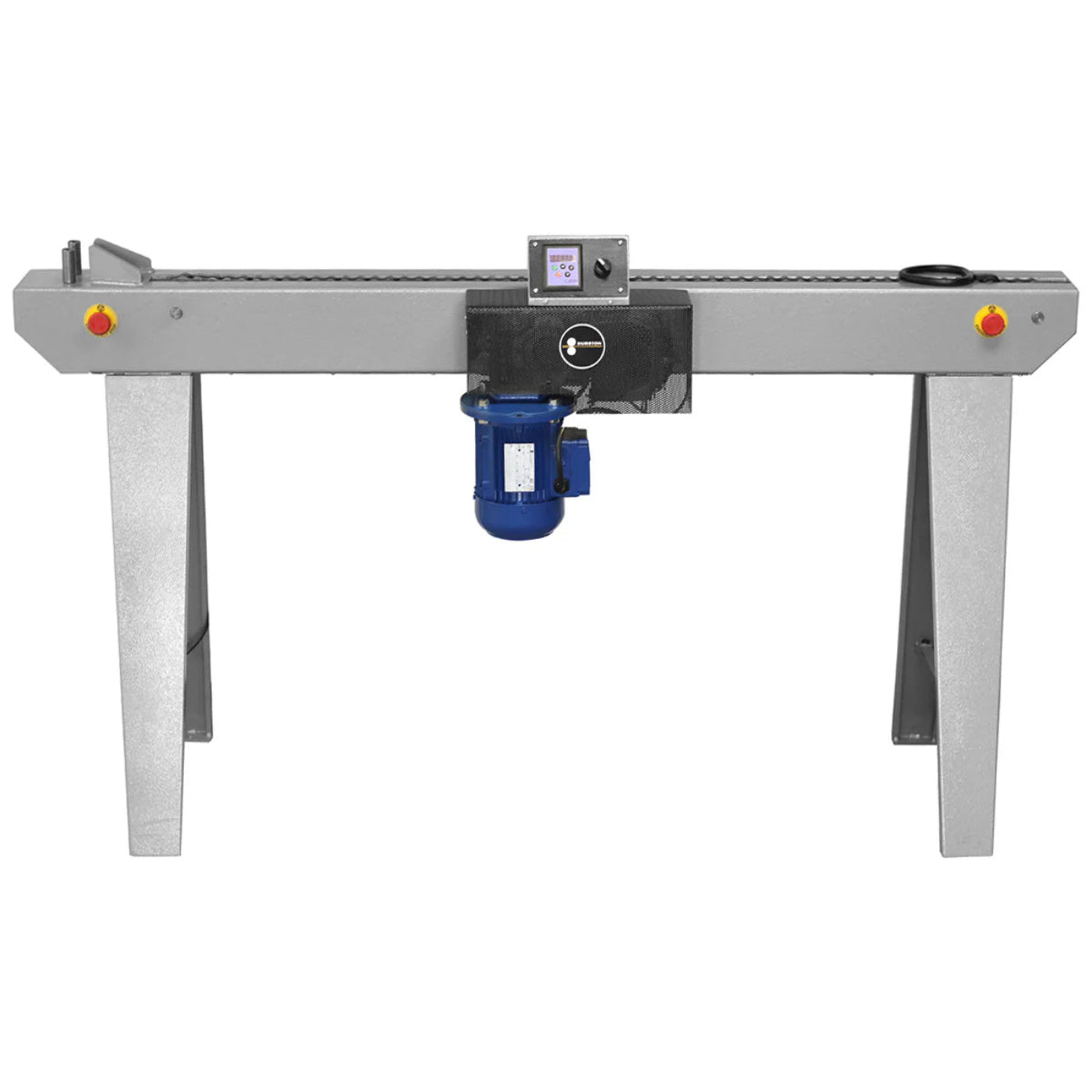

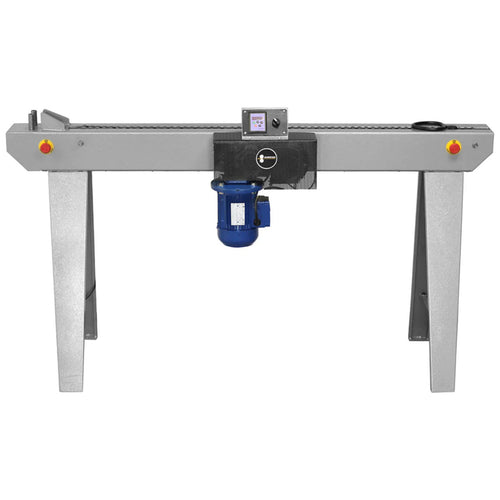

The Durston 1196 Power Drawbench brings the proven engineering of Durston's manual 1800 drawbench series into the powered realm — fitted with a 0.75 kW 110V motor for demanding studio and production wire-drawing work. Made in England, the 1196 is built around a heavy-duty cast iron gearbox and delivers near-silent, variable-speed pulling with both forward and reverse operation across a generous 1350 mm (53⅛") working length.

This unit is a closeout — a practically brand-new return in virtually new condition, inspected and verified to be in full working order. Sold as-is. Only 1 available. The bench is also available for pick-up at our Oakland, California warehouse by appointment only — contact customer service at 1-800-772-3456 to arrange.

Features

• Powered by a 0.75 kW 110V motor — same frame and specifications as the Durston manual 1800 drawbench
• Forward and reverse operation
• Variable speed control
• Heavy-duty cast iron gearbox
• Near-silent operation
• Pulls up to 10 mm wire diameter
• 1350 mm (53⅛") usable working length

Specifications

What our Experts Think

• Industrial-Grade Wire Drawing Power
  The Durston 1196 brings professional powered wire drawing capability to high-output jewellery and metal workshops, reducing manual effort while improving consistency.
• Long 72" Frame with 54" Usable Stroke
  Designed for extended wire pulls, giving smooth, controlled reduction over long lengths—ideal for production-level chain makers and goldsmiths.
• Power-Driven Precision Control
  Equipped with a 0.75kW motor, forward/reverse control, and variable speed, allowing precise tension control for consistent wire sizing.
• Heavy Cast Iron Gearbox Construction
  Built for stability under load, ensuring vibration-free operation and long-term durability in continuous workshop use.
• High Capacity Wire Handling
  Capable of drawing up to 10mm wire diameter, making it suitable for both fine jewellery work and heavier metal forming tasks.
• Workshop Efficiency Upgrade
  Replaces manual pulling effort with controlled mechanical power, significantly improving speed, repeatability, and operator comfort.
• Professional Studio Standard Tool
  Best suited for manufacturing environments where consistent wire quality and production throughput are essential.

Q&A

Maintenance Tips

• Clean draw path after every use
  Remove wire dust, metal filings, and lubricant residue from the draw bench bed, rollers, and guide rails to prevent scratching and uneven pulling.
• Keep draw tongs in top condition
  Inspect jaws regularly for wear or slippage. Clean gripping surfaces so they maintain strong, non-slip hold on wire during high-tension pulls.
• Lubricate gearbox & moving drive parts
  Apply light machine grease periodically to the cast-iron gearbox and drive system to ensure smooth forward/reverse operation and reduce motor strain.
• Check motor ventilation (0.75kW system)
  Keep vents dust-free and ensure airflow is not blocked during long runs to prevent overheating and preserve motor life.
• Inspect emergency stops & safety systems
  Test both end-stop switches regularly to ensure immediate shutdown in case of wire snag or operator emergency.
• Maintain draw plates & ring guides
  Clean and lightly wax draw plates to reduce friction and prevent galling of wire during repeated passes.
• Avoid overloading wire capacity
  Do not exceed recommended draw limits (up to ~10mm input wire). Step reductions gradually instead of forcing heavy pulls.
• Keep bed aligned & rigid
  Ensure the bench remains level and securely anchored to prevent vibration, which can cause uneven wire diameter or strain on the gearbox.
• Rust prevention
  Lightly oil exposed steel parts when idle, especially in humid environments, but always clean before use to avoid contaminating wire.
• Routine bolt & frame checks
  Re-tighten mounting points periodically due to vibration from motorized operation.
