Carvera 4th Axis Module Harmonic Drive - C1-4TH-HD

Carvera 4th Axis Module Harmonic Drive - C1-4TH-HD

$449.99
$449.99 $599.00
SAVE 24% Sold out
Carvera 4th Axis Module Harmonic Drive - C1-4TH-HD

Carvera 4th Axis Module Harmonic Drive - C1-4TH-HD

$449.99
$449.99 $599.00
SAVE 24% Sold out

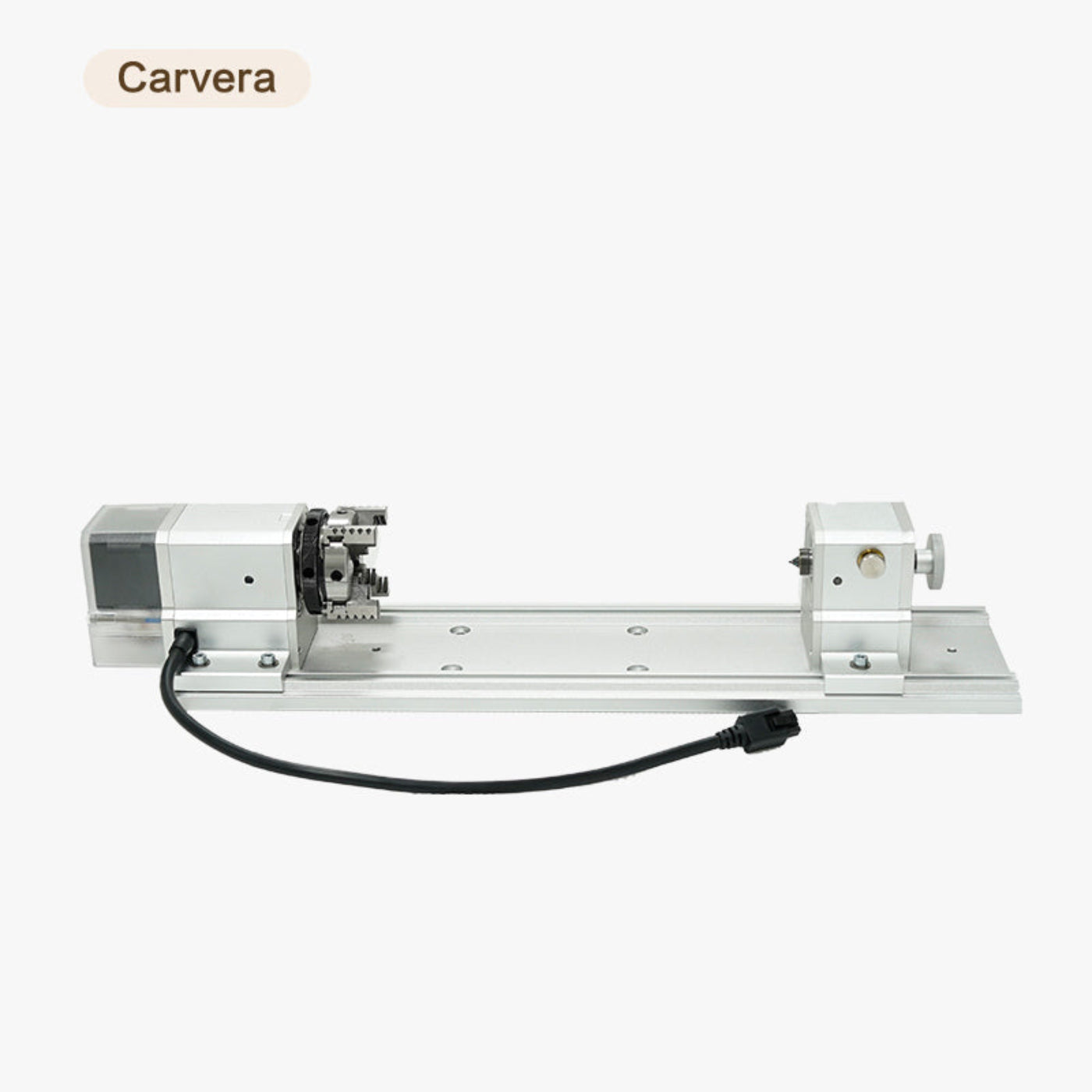

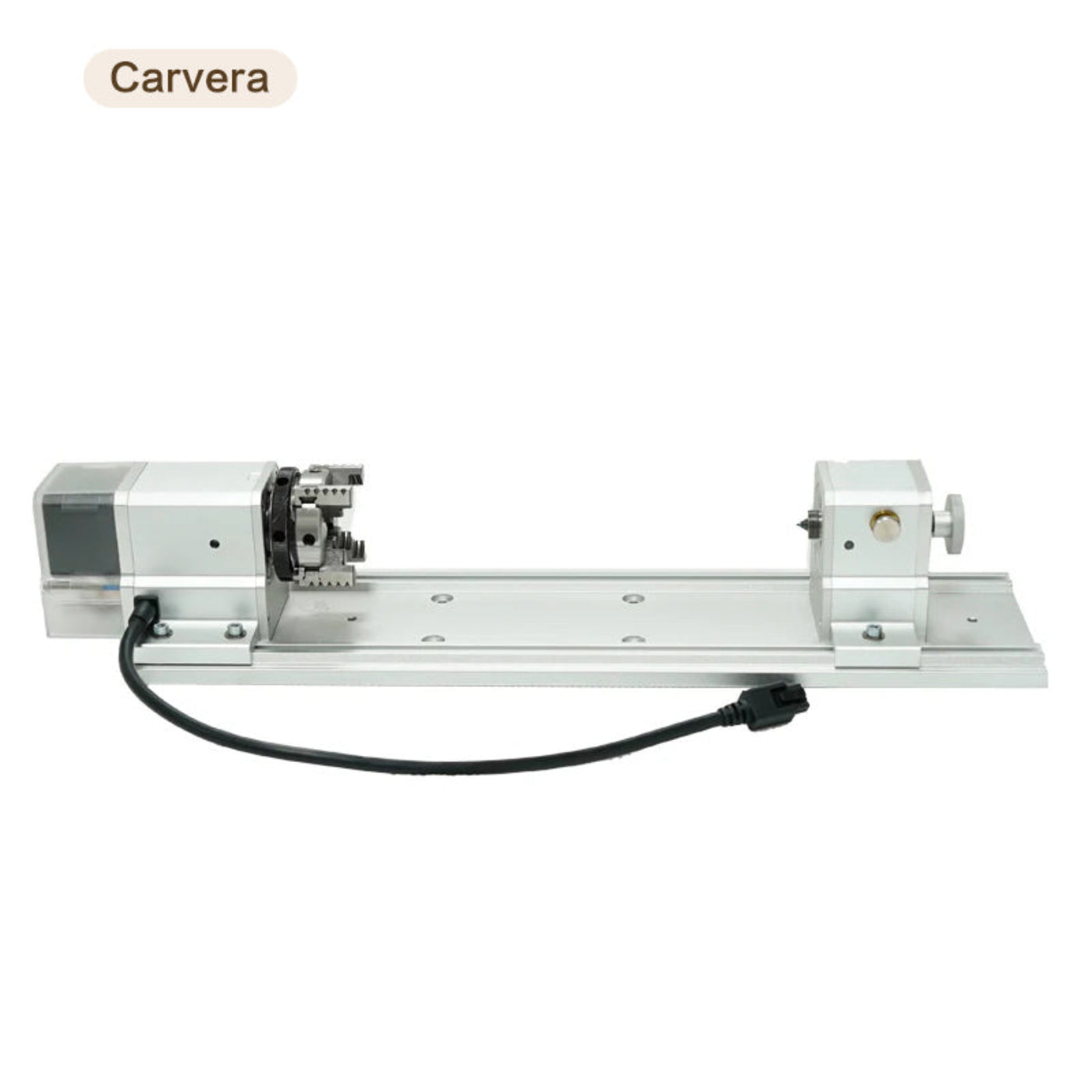

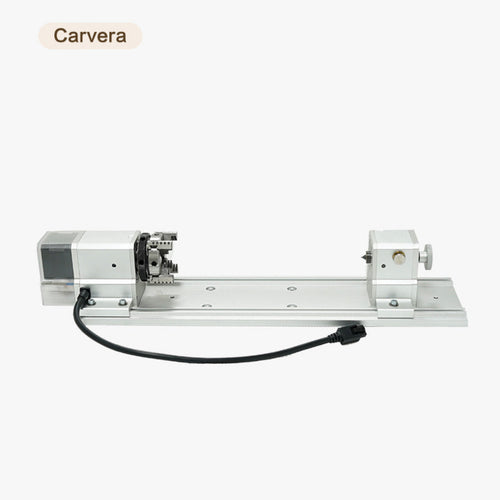

Carvera 4th Axis Module Harmonic Drive - C1-4TH-HD

One More Axis, Much More Possibilities. With Carvera's 4 axis module (Harmonic Drive Version), you can machine cylindrical items, double-sided objects, and 3D shapes. This time, you are not limited by materials like 3D printers anymore, plastic, wood, or even metal, you can make beautiful yet realistic crafts.

Features

  • Enables true 4-axis simultaneous CNC machining for advanced rotary projects.

  • Machines cylindrical parts, double-sided components, and complex 3D shapes with precision.

  • Harmonic Drive system delivers ultra-low backlash for exceptional accuracy and repeatability.

  • High rotary precision of 0.01° for detailed engraving and intricate machining.

  • Supports rotation speeds up to 2400° per minute for efficient production.

  • Compatible with wood, plastics, and non-ferrous metals including aluminum and brass.

  • Generous work area of 92 mm × 240 mm accommodates a wide range of workpiece sizes.

  • Supports 4th-axis homing and work coordinate setting for improved workflow and setup accuracy.

  • Designed for seamless integration with Carvera and Carvera Air CNC machines.

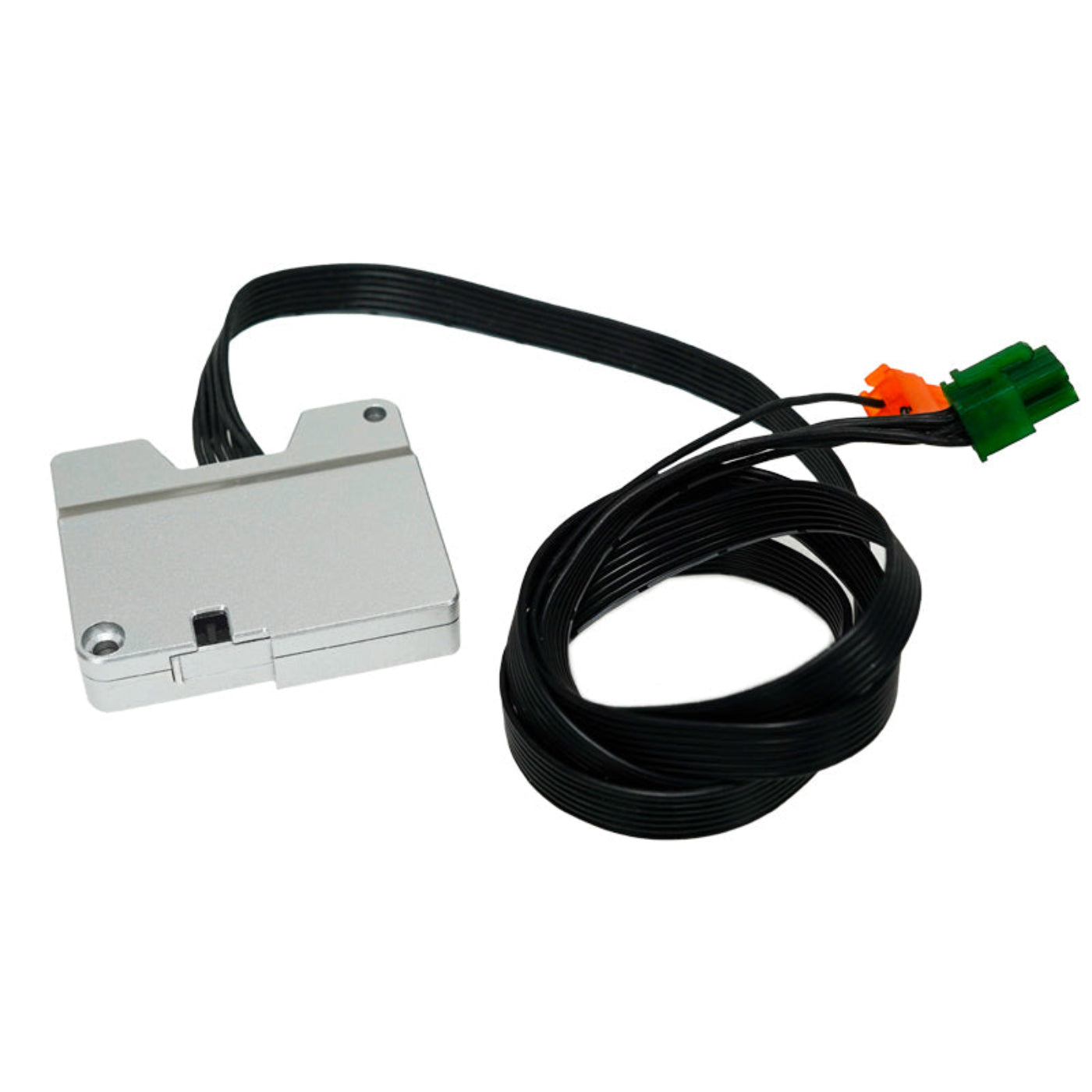

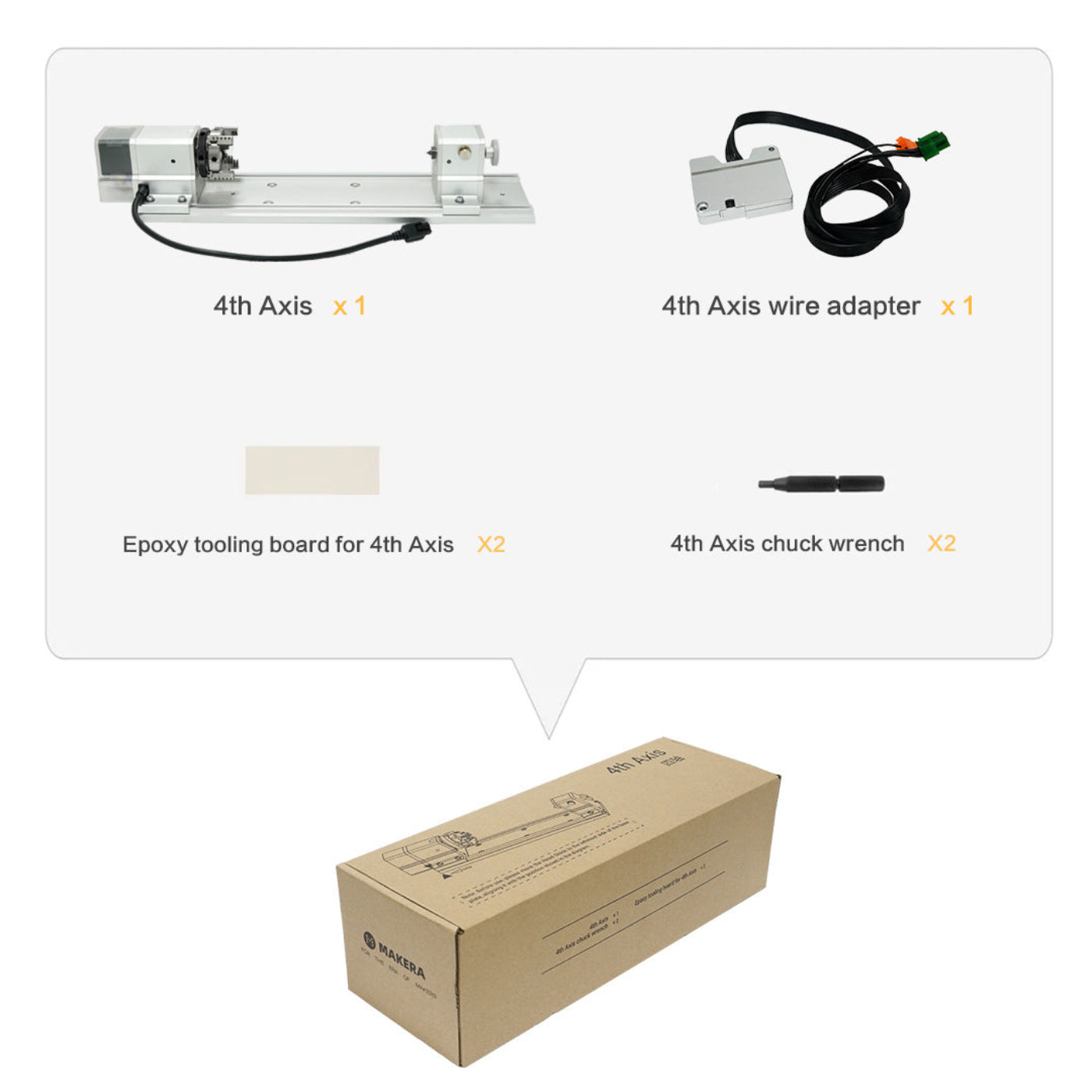

  • Includes required adapters and installation accessories for straightforward setup.

What Our Experts Think

  • Adds true rotary machining capability to the Carvera CNC platform

  • Harmonic Drive system delivers ultra-low backlash and exceptional precision

  • Ideal for machining cylindrical parts, double-sided projects, and complex 3D geometries

  • Supports wood, plastics, and non-ferrous metals with high accuracy

  • A must-have upgrade for advanced prototyping, engraving, and production work

Q&A

  • Q: What does the 4th Axis Module do?

    A: It enables rotary machining for cylindrical, multi-sided, and complex 3D parts.

  • Q: What is the benefit of the Harmonic Drive system?

    A: It provides extremely low backlash and highly accurate positioning.

  • Q: Which machines is it compatible with?

    A: Designed for Makera Carvera CNC machines and compatible configurations.

  • Q: What materials can it machine?

    A: Wood, plastics, and non-ferrous metals such as aluminum and brass.

Maintenance Tips

  • Keep the rotary axis free from dust and chips

  • Inspect mounting hardware before operation

  • Clean the chuck and clamping surfaces regularly

  • Check alignment periodically for maximum accuracy

  • Store in a clean, dry environment when not in use
