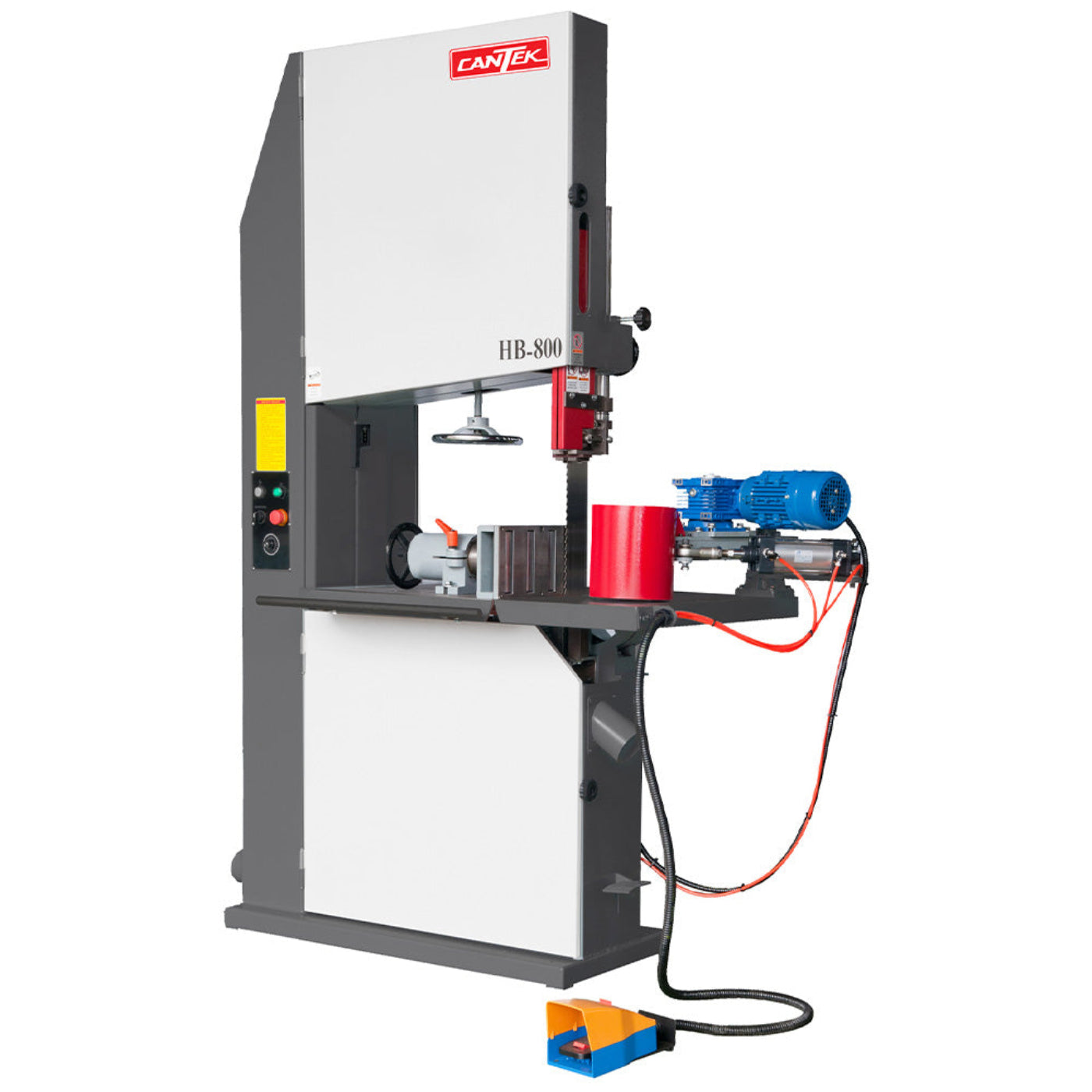

SCM 32" Band Resaw w/ HF150A Feeder - HB800

SCM 32" Band Resaw w/ HF150A Feeder - HB800

$14,332.99
$14,332.99 $19,110.00
SAVE 24% Sold out
SCM 32" Band Resaw w/ HF150A Feeder - HB800

SCM 32" Band Resaw w/ HF150A Feeder - HB800

$14,332.99
$14,332.99 $19,110.00
SAVE 24% Sold out

SCM 32" Band Resaw w/ HF150A Feeder - HB800

The Cantek HB800 32″ Band Resaw with Feeder is built to last.  A 4” wide blade is driven by a powerful 20HP motor for precision straight resawing.  Equipped with a 1HP power variable speed feed unit which is pneumatically actuated to provide consistent feeding of the workpiece.  The feed speed can be variably adjusted from 3 to 56 FPM in accordance with the material type and thickness.

Features
  • Cast iron upper and lower saw wheels are precision machined and dynamically balanced
  • Powerful 20HP saw motor
  • 4” wide resaw blade for precise straight resaw cutting
  • Specially designed Bakelite guide blocks provide rigid side blade support for straight cutting
  • 1HP infinitely variable speed feeder with feed speeds from 3~56 FPM ensures consistent feeding of work pieces during resawing operations
  • Feeder is pneumatically actuated by a foot pedal for operator convenience
  • Adjustable roller infeed fence to facilitate with feeding of the workpiece
  • Upper and lower Bakelite guides ensure blade stability for optimum cutting results
  • Heavy fabricated steel machine frame
  • Large cast iron worktable is precision ground and can tilt to a maximum of 45o
  • Convenient spring blade tension adjustment by means of a handwheel and gauge
  • Foot brake for braking wheels and blade
  • Rack & pinion blade guide adjustment
  • Band wheel is crowned for proper blade tracking and added stability of the blade
  • Blade lubrication system and reservoir for lubricant keeps blades cool
  • Auto Start-Delta control for main motor with emergency stop switch
  • Feed pressure is adjustable
  • Feed roller opening and closing is controlled by a foot switch for operator convenience
  • Knurled steel feed roller for maximum grip
What our Experts Think
  • Large 32" Resaw Capacity – Designed to process wide boards and thick lumber efficiently, making it ideal for veneer production, lumber recovery, and high-volume woodworking applications.
  • Integrated HF150A Power Feeder – Provides smooth, consistent material feeding for improved cut quality, greater productivity, and reduced operator effort.
  • Precision Resawing Performance – Produces accurate, straight cuts that help maximize material yield and minimize waste from valuable wood stock.
  • Built for Production Efficiency – Combines automated feeding and high-capacity cutting to streamline workflows in furniture, millwork, and lumber processing operations.
  • Heavy-Duty Industrial Construction – Engineered for continuous commercial use with the durability and stability required for demanding manufacturing environments.
Q&A

Q: What is the SCM HB800 Band Resaw used for?
A: The HB800 is designed for high-precision resawing of lumber, allowing thick boards to be cut into thinner, uniform pieces while maximizing material yield.

Q: What are the benefits of a 32-inch band resaw?
A: The 32-inch capacity enables efficient processing of large boards and wide stock, making it ideal for demanding production environments.

Q: What is the advantage of the HF150A feeder?
A: The HF150A feeder provides consistent, controlled material feeding, improving cutting accuracy, throughput, and operator safety.

Q: Is the HB800 suitable for industrial woodworking operations?
A: Yes. It is built for sawmills, furniture manufacturers, flooring producers, millwork facilities, and high-volume woodworking operations.

Q: Can it help maximize lumber recovery?
A: Yes. The thin-kerf band saw design minimizes waste and helps recover more usable material from each board.

Q: What materials can be processed with the HB800?
A: It is suitable for hardwoods, softwoods, and other solid wood materials commonly used in woodworking and lumber processing.

Q: Does it improve cutting consistency and production efficiency?
A: Yes. The combination of precision resawing and automated feeding helps deliver repeatable cuts and increased productivity.

Q: Who is this machine best suited for?
A: Sawmills, furniture manufacturers, flooring companies, millwork operations, and industrial woodworking facilities seeking high-capacity, high-accuracy resawing performance.

Maintenance Tips
  • Clean the resaw blade, feed system, wheels, and table surfaces daily to remove sawdust and resin buildup.
  • Check blade tension and tracking regularly for accurate cutting and longer blade life.
  • Inspect the resaw blade for dullness, cracks, or damaged teeth and replace or sharpen as needed.
  • Lubricate bearings, guide assemblies, and moving components according to the maintenance schedule.
  • Verify blade guide and fence alignment to maintain straight, consistent cuts.
  • Inspect the HF150A feeder rollers for wear and ensure proper feeding pressure and alignment.
  • Keep dust collection ports and extraction systems clean for optimal performance and safety.
  • Check drive belts, chains, and feeder components for proper tension and wear.
  • Test safety guards, controls, and emergency stop functions before operation.
  • Tighten loose fasteners, feeder components, and machine fittings during routine inspections
