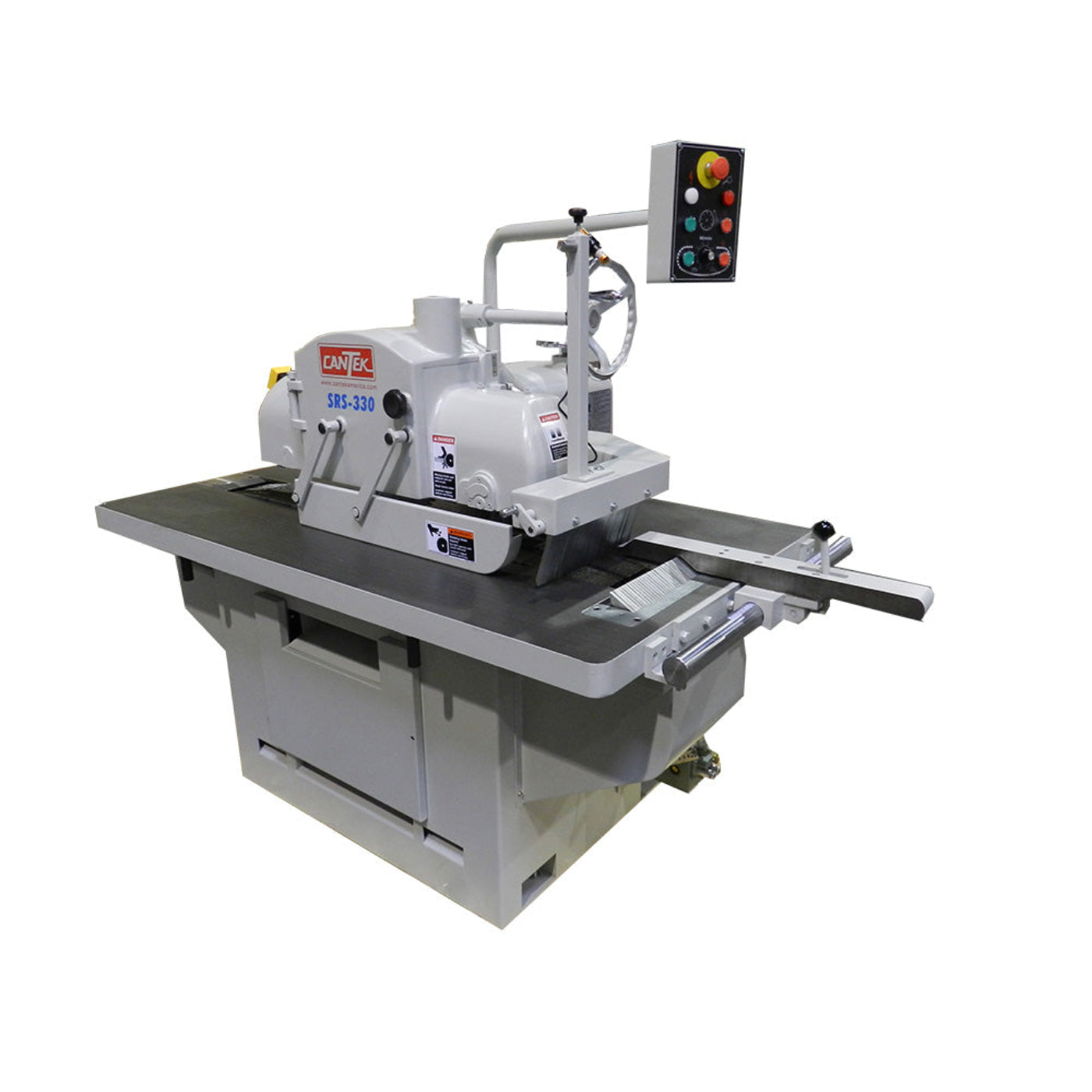

SCM 13" Glue Line Ripsaw - SRS330 (230V/460V)

SCM  13" Glue Line Ripsaw - SRS330 (230V/460V)

The Cantek SRS330 Straight Line Glue Joint Ripsaw is a single-blade ripsaw is geared towards the shop looking to increase efficiency in their ripping operations but cannot justify a multi-blade ripsaw.  With its precision cast iron chain and track assembly, and extended pressure section, the SRS330 can produce a glue joint finish ready for panel glue-up right out of the saw.

Features

• Produces a guaranteed glue joint finish to 13′, which eliminates the need to joint the material after ripping
• Precision straight line feeding for parallel and accurate rip cuts
• Eight hold down rollers over six rows ensure material is firmly held during cutting operations for a longer period resulting in a straighter, more precise cut
• Powerful 20HP saw motor for even the most demanding rip applications
• Maintenance-free chain track with the use of a reliable mechanical lubrication system
• Variable feed speed by frequency inverter for optimum cutting results
• Cast iron saw assembly, column, and table with superior vibration damping properties for optimum cutting results while ensuring long bearing and machine life.
• Very rigid machine body with a welded steel frame
• Absolute straight line feeding with glue joint to 13 ft.
• FC35 cast iron chain track with double-V design ensures precision straight-line ripping with a long wear life
• Precision Built Saw Arbor constructed of nickel-chrome steel, large diameter, accurately ground and dynamically balanced.
• Arbor runs in precision angular contact type ball bearings (eliminates any radial run-out & axial thrust) – V Belt driven from below.
• Mechanical operation chain oiler provides consistent lubrication to the chain track and automatically adjusts to your feed speed.
• When oil runs low, a warning light will come on, and when it gets too low, the machine track stops running to avoid damage to the track.
• Cast iron rip fence is mounted to a large diameter round guide rail with a quick-locking lever for effortless and accurate adjustment.
• 3 sets of anti-kickback fingers: 2 top and 1 set in the table for added operator safety.
• Soft start – Star Delta starter reduces the amp draw on startup.
• Optional laser light to project the cutting line to achieve maximum material yield.

What our Experts Think

Q&A

Q: What is the SCM SRS330 used for?
A: The SRS330 is designed for precision ripping operations, producing straight, glue-ready edges directly from the saw.

Q: What are the benefits of a glue line ripsaw?
A: It creates smooth, accurate edges that often require little to no additional jointing before panel glue-up.

Q: Can the SRS330 handle hardwoods and softwoods?
A: Yes, it is engineered to process a wide range of wood species with consistent cutting accuracy and surface quality.

Q: Is the SRS330 suitable for production woodworking?
A: Yes, its durable construction and efficient cutting performance make it ideal for cabinet shops, furniture manufacturers, and millwork operations.

Q: Why choose the SCM SRS330?
A: It offers precise glue-line cuts, improved material yield, reduced secondary processing, and reliable performance for professional woodworking applications.
