SCM 4th-Axis Rotary Kit - AX9-ARK360

$969.99

$969.99 ~~$1,292.30~~

SAVE 24% Sold out

Product variants

SCM 4th-Axis Rotary Kit - AX9-ARK360

$969.99

$969.99 ~~$1,292.30~~

SAVE 24% Sold out

SCM 4th-Axis Rotary Kit - AX9-ARK360

This turning accessory can be ordered with any Pro+ or Elite Series machine and will allow machining on cylindrical objects. The current release of Vcarve includes a ‘profile wrapping’ function, so no additional software is required to begin creating amazing 3-dimensional work.

What our Experts Think

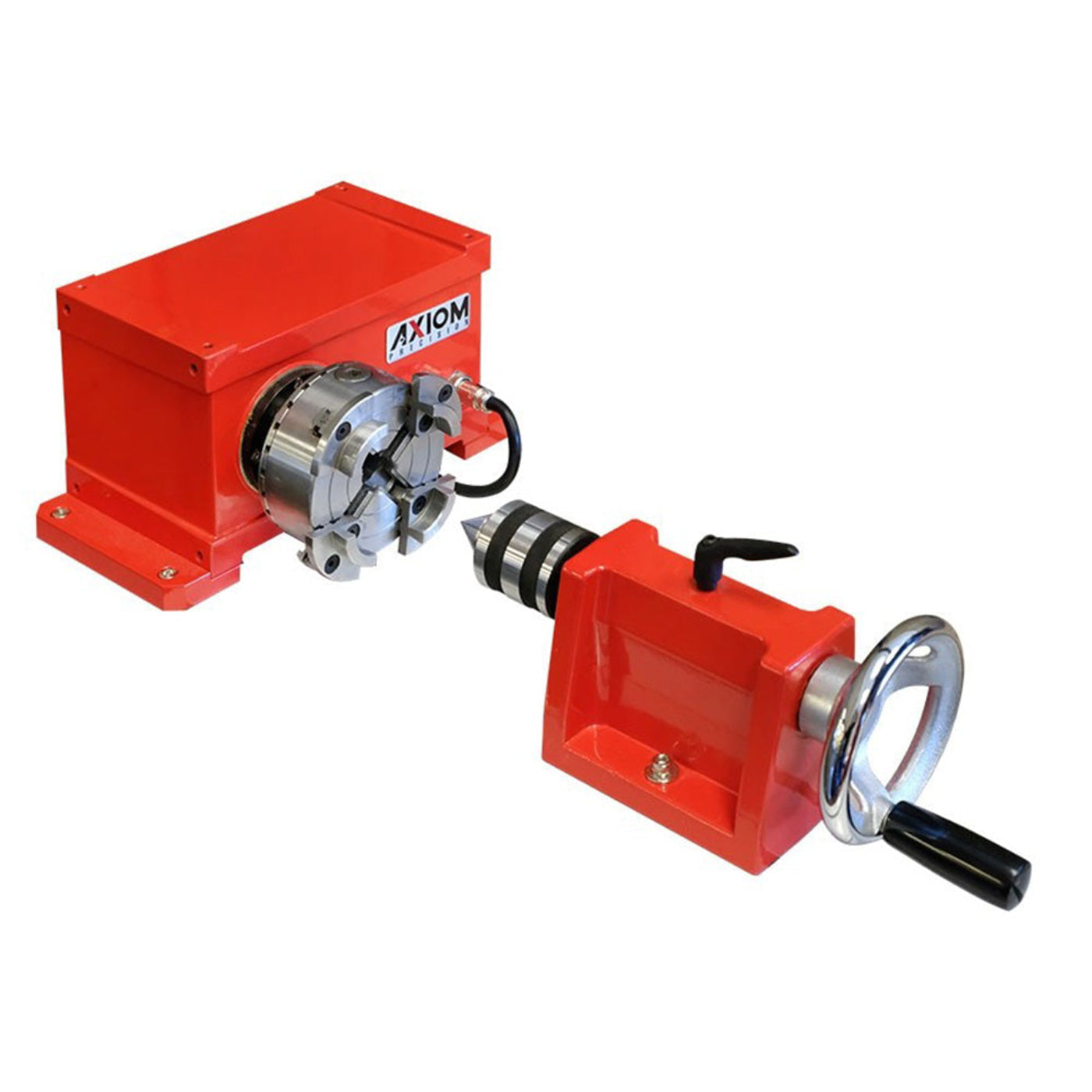

Professional 4th-axis expansion kit: The Axiom ARK360 (AX9-ARK360) is a complete rotary system designed to add full 360° cylindrical machining capability to compatible Axiom CNC Pro and Elite machines.
True rotary machining upgrade: Enables turning, wrapping, and engraving on round stock—ideal for parts like columns, table legs, bottles, handles, and decorative cylinders.
Complete turnkey setup: Includes rotary axis unit, tailstock, chuck system, and mounting hardware, so it integrates directly without needing separate components.
Precision-driven performance: Stepper motor control with rigid bearings ensures stable rotation and consistent positioning accuracy for detailed CNC work.
Workshop-ready construction: Built for repeated machining loads, reducing deflection and maintaining accuracy during longer cylindrical cuts.
Flexible machining capability: Supports both continuous rotation and indexed work, enabling everything from spiral carving to multi-face indexing operations.
Strong workflow expansion: Turns a standard 3-axis CNC into a more advanced multi-axis production system without requiring a full machine upgrade.

Q&A

Q: What is the SCM 4th-Axis Rotary Kit (AX9-ARK360)?
A: A CNC rotary attachment from JTech designed to add 4th-axis (A-axis) rotation capability to compatible CNC machines for cylindrical and multi-sided machining.

Q: What is it used for?
A: It enables engraving, carving, and machining on round or cylindrical objects like rods, pipes, bottles, and turned parts.

Q: What does “360” refer to?
A: It indicates full 360-degree rotation, allowing continuous rotary machining for complex 3D designs and wrapping toolpaths.

Q: What types of work does it support?
A: Ideal for 3D carving, spiral engraving, cylindrical text, and multi-face machining projects.

Q: Who is it designed for?
A: Suitable for CNC professionals, makers, sign shops, and small manufacturers needing rotary machining capability.

Q: What are the benefits of a 4th-axis kit?
A: It expands CNC versatility, reduces manual repositioning, and enables more complex and higher-value machining projects.

Maintenance Tips

Keep rotary mechanism clean: Remove chips, dust, and grease buildup regularly to maintain smooth rotation.
Lubricate moving parts: Apply light, CNC-approved lubricant to gears, bearings, and rotary shaft as recommended.
Check alignment frequently: Ensure the 4th-axis is properly aligned with CNC bed to prevent machining errors.
Secure mounting: Tighten all clamps and fixtures before operation to avoid vibration or shifting during rotation.
Inspect wiring & connectors: Keep motor cables and encoder connections clean, dry, and free from strain.
Avoid overload: Do not exceed recommended weight or torque limits on the rotary axis.
Toolpath verification: Double-check rotary toolpaths in software before running jobs to prevent collisions.
Dust protection: Use protective covers when not in use to prevent debris entering gears and bearings.
Regular calibration: Periodically recalibrate steps per degree for accurate rotational machining.
Safe shutdown: Power off system and secure rotary axis before performing maintenance or tool changes.
