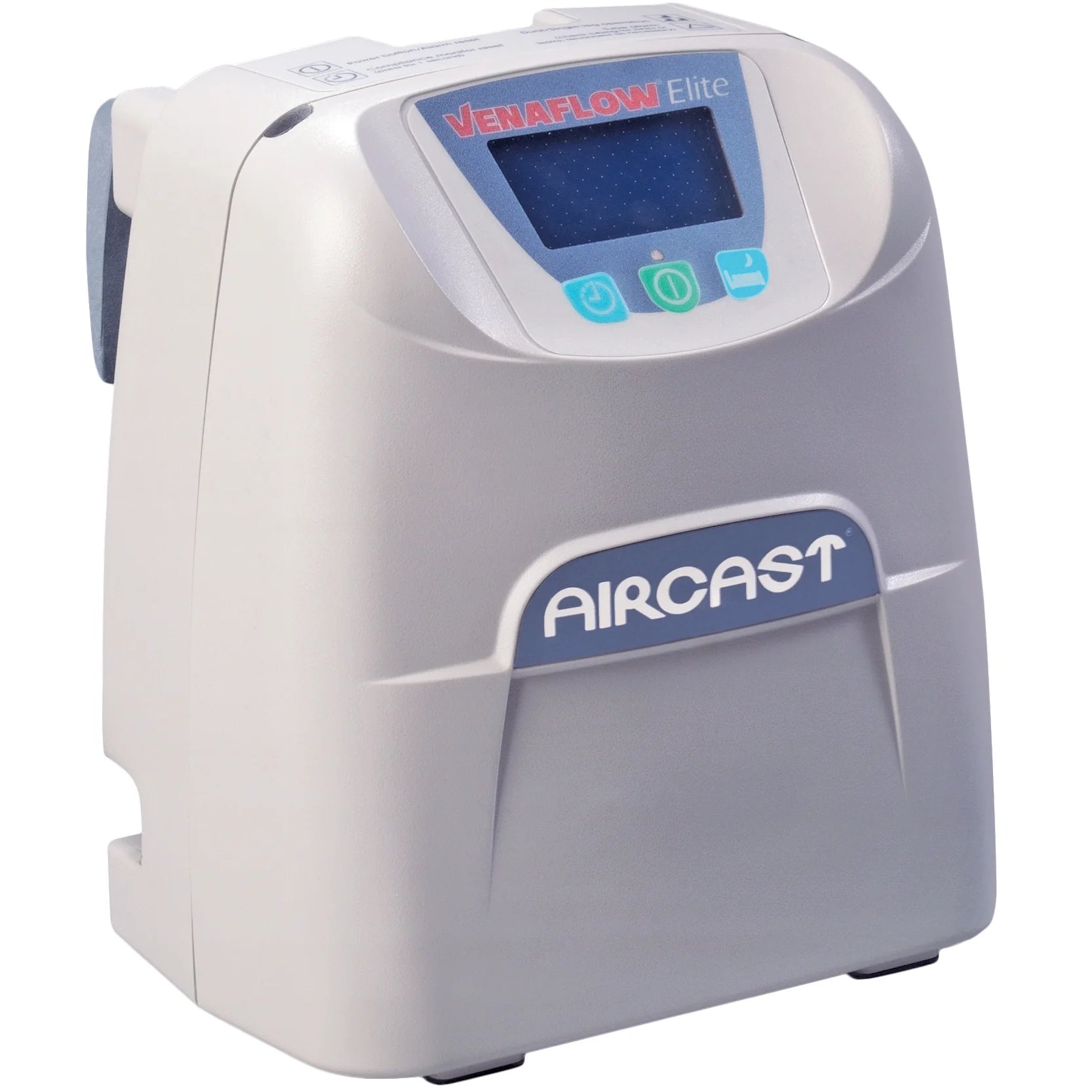

Aircast VenaFlow Elite Vascular System - MFI-DJO-30B-S
The VenaFlow Elite was designed as a prophylaxis for Deep Vein Thrombosis (DVT). The Elite System combines two technologies, rapid inflation and graduated sequential compression, that works to mimic ambulation and accelerate venous velocity. Intermittent pneumatic compression is clinically proven to reduce the risks associated with deep vein thrombosis and pulmonary embolism following surgery. The breathable and comfortable calf, foot, and thigh cuffs help to enhance the patient experience and are compatible with one universal pump.
Automatic cuff detection identifies and adjusts pressure based on cuff configuration attached, making this a very easy to use system. Preset pressure and alarms eliminate the need for adjustments. A low profile and light-weight design make for easy storage and transportation.
The Elite System, by DJO Global, is part of the reliable VenaFlow line of products. VenaFlow products are trusted in over 2,000 hospitals and surgery centers and used by approximately two million patients per year.
Features
Features
- Low profile, light-weight design for easy storage and transportation.
- Telescoping bed hanger extends up to 3.5" and accommodates most beds.
- Automatic cuff detection identifies and adjusts pressure based on cuff configuration attached.
- Preset pressures and alarms eliminate the need for adjustments.
- Universal pump for calf, thigh, and foot cuffs provide ease of use and less inventory.
- Soft and breathable cuffs assist in increasing patient comfort.
- For the superior emptying of veins, the Elite incorporates asymmetric compression.
- Inflation Modes:
- Standard Operation: Inflates the cuffs one leg at a time, alternating between the two legs once every 30 seconds. The cuffs inflate within less than 0.5 seconds.
- S-Mode (optional): Inflates both cuffs at the same time, once every 60 seconds. The cuffs inflate in approximately 10 seconds.
Configurations
Configurations
-
#MFI-DJO-30B-S: Certified Refurbished - With S-Mode.
-
#30B: Factory New - Standard (No Battery or S-Mode).
Literature
Literature
DJO Global Product Catalog
Aircast VenaFlow Elite User Guide
What our Experts Think
-
Clinically trusted DVT prevention system – The Aircast VenaFlow Elite Vascular System - MFI-DJO-30B-S is designed for deep vein thrombosis (DVT) prophylaxis, helping improve venous return and reduce clot risk in immobile or post-surgical patients.
-
Advanced dual-action compression – Combines rapid inflation + graduated sequential compression to mimic natural walking motion and enhance blood flow efficiency.
-
Intelligent automatic operation – Features automatic cuff detection, preset pressures, and alarm systems, reducing setup complexity and improving clinical workflow consistency.
-
Multi-cuff compatibility for flexibility – Works with calf, thigh, and foot cuffs using a universal pump design, minimizing equipment variation across care settings.
-
Built for hospital efficiency – Lightweight, low-profile unit with a bed-hanger mounting system and portable design, ideal for fast deployment across wards and recovery rooms.
-
Enhanced patient compliance – Breathable cuff design and automated cycling help improve comfort and adherence during extended therapy sessions.
Q&A
Q: What is the Aircast VenaFlow Elite Vascular System (MFI-DJO-30B-S)?
A: It is a professional intermittent pneumatic compression (IPC) device designed to help prevent deep vein thrombosis (DVT) by promoting blood circulation in the lower extremities.
Q: What does the system include?

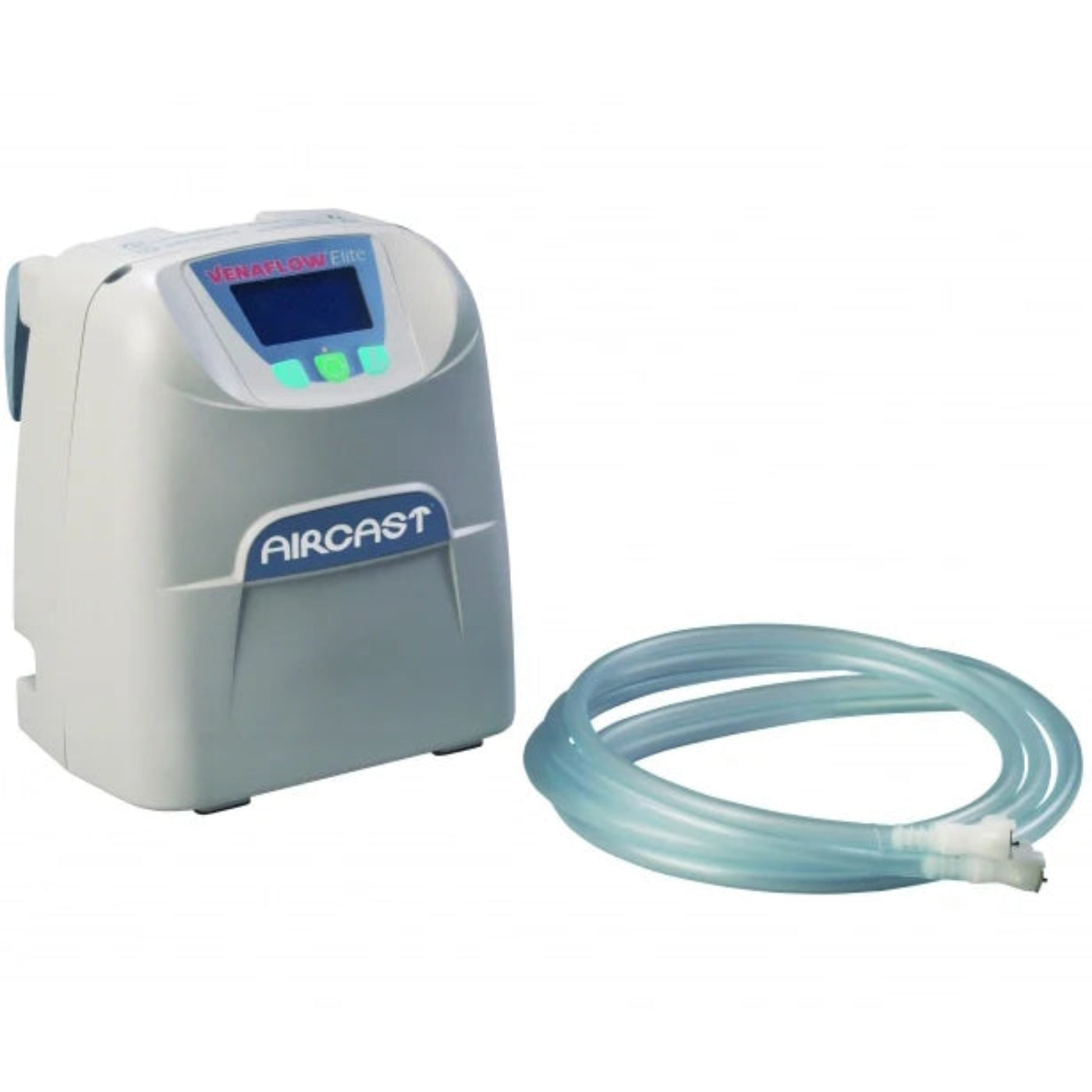

A: The unit typically includes the VenaFlow Elite pump with tube assembly and power cord. Compression cuffs (calf, foot, or thigh) are sold separately.
Q: What is the main clinical purpose of this device?
A: It is used for DVT prophylaxis and venous thromboembolism prevention, especially in post-surgical or immobile patients.
Q: How does the VenaFlow Elite system work?
A: It uses rapid inflation and graduated sequential compression to mimic natural walking, improving venous blood flow and reducing clot risk.
Q: Does it automatically adjust settings?
A: Yes. The system features automatic cuff detection and preset pressure settings, eliminating manual adjustments.
Q: Is the device portable and easy to use?
A: Yes. It has a low-profile, lightweight design with a bed hanger for easy mounting and transport between care areas.
Q: Who is this system intended for?
A: It is designed for use in hospitals, surgical centers, and clinical environments under professional medical supervision.
Maintenance Tips
- Inspect tubing, cuffs, connectors, and power cord before each use; replace immediately if cracked, kinked, or worn.
- Clean pump unit and tube assembly with mild soap, antiseptic, or approved disinfectant wipes only; avoid harsh chlorine-based cleaners.
- Never submerge the device; avoid excess fluid entering vents or openings during cleaning.
- Ensure secure cuff and tubing connections before operation to maintain correct compression therapy performance.
- Check for obstruction or kinked tubing if alarms or “check tubes” indicators appear.
- Keep unit in a clean, dry, dust-free environment and avoid impact or moisture exposure.
- Use only compatible VenaFlow Elite cuffs and accessories to ensure proper pressure calibration and safety.
- Arrange periodic servicing through authorized technicians if performance, pressure consistency, or alarms become irregular.
