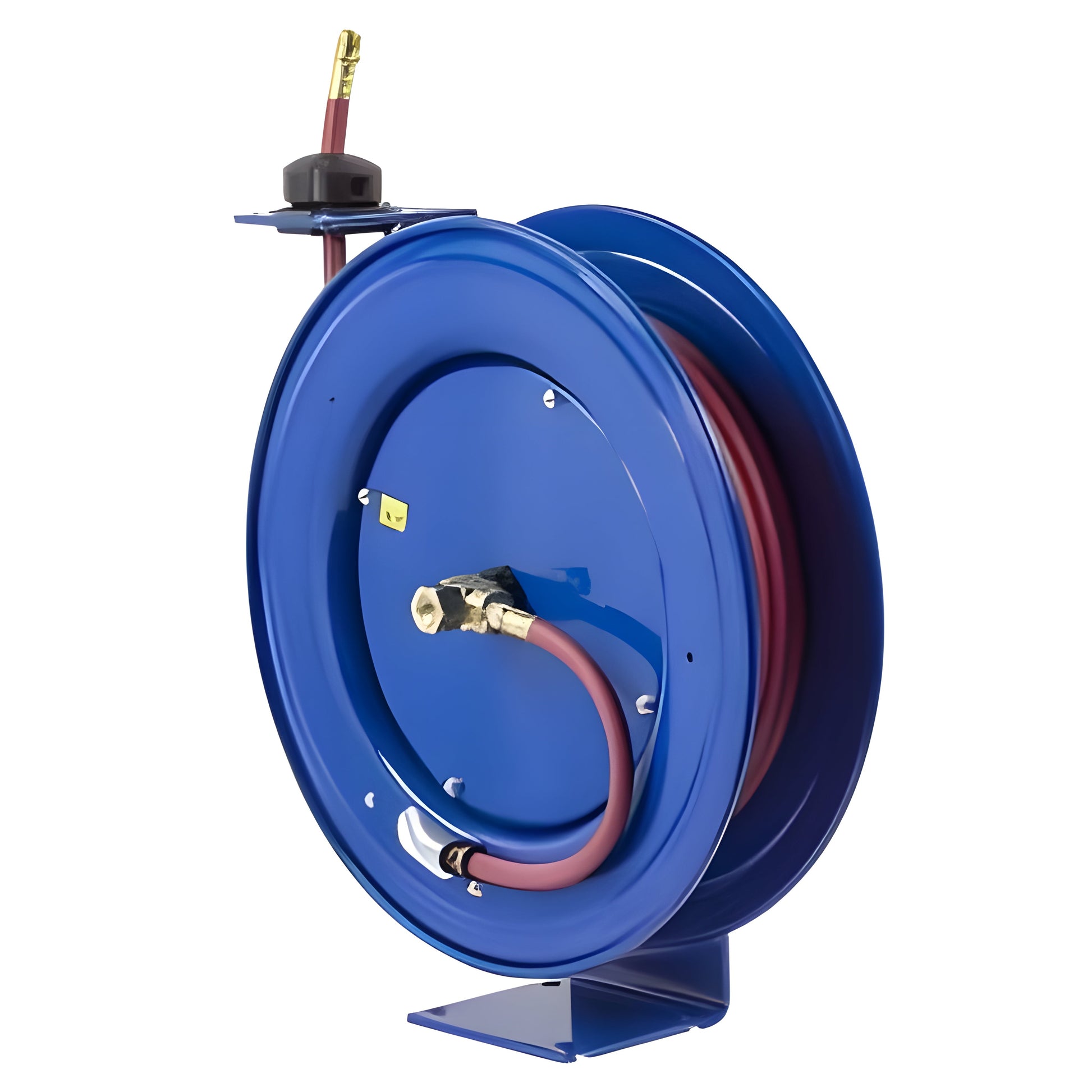

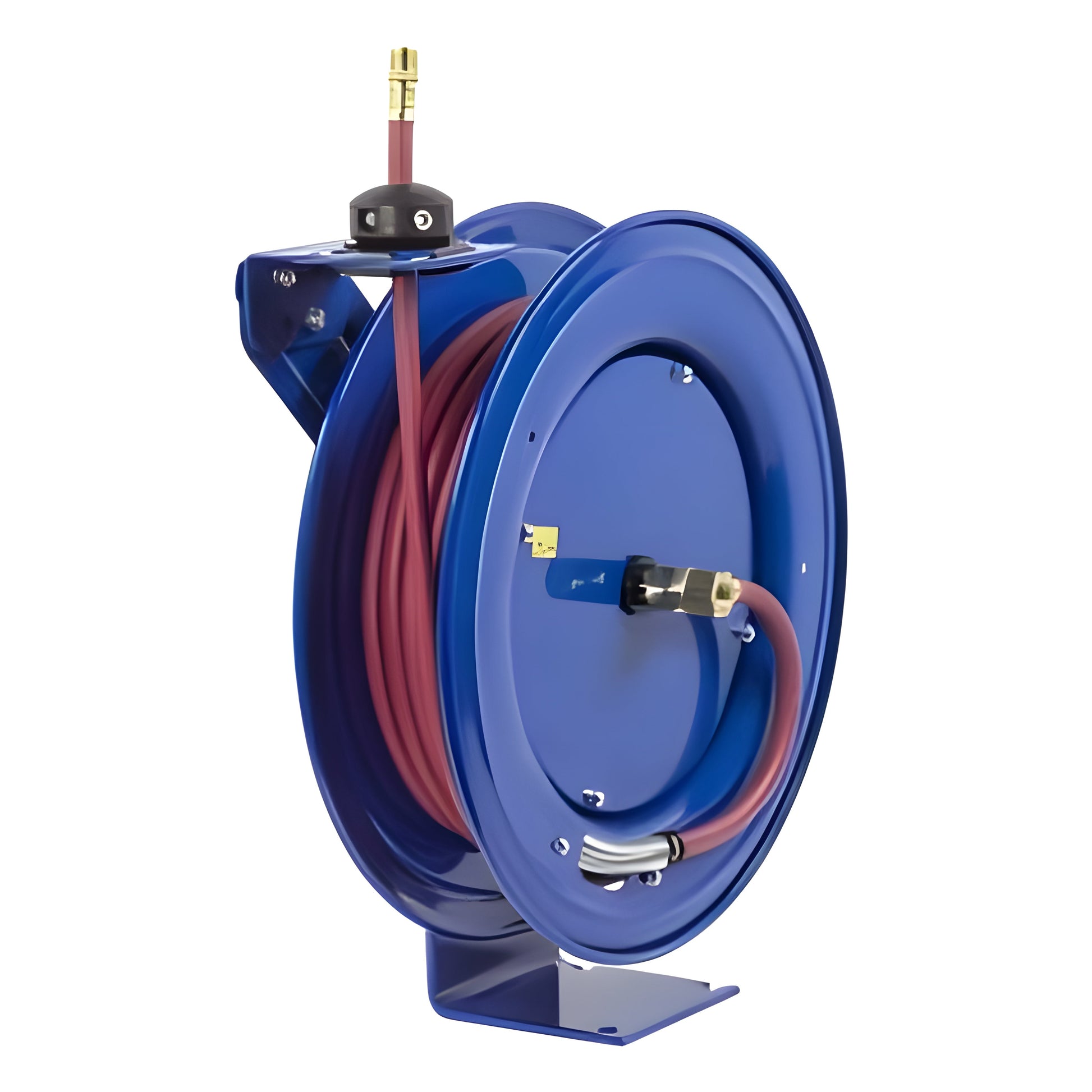

SH Series “Super Hub™” Medium-Pressure Spring Driven Hose Reels
COXREELS® SH Series “Super Hub™” spring driven hose reels, like the P Series, have a long history of dependable performance. The larger chassis and frame accommodate longer lengths and larger diameters of hose. Coxreels’ original Super Hub™ dual axle support system increases the stability during operation, reduces vibration and strengthens the structural integrity of the reel.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- SWIVEL - Machined from solid brass 90° full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™dual axle support system.
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish,adjustable solid rubber hose stop, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL | I.D | O.D | LENGTH | HOSE | MAX PSI | SHIP WEIGHT (LBS) | OVERALL DIMENSIONS (W) (H) (L) | MOUNTING PATTERN (M) (N) | BASE (X) (Y) |
|---|---|---|---|---|---|---|---|---|---|
| MP-N-340 | 3/8" | 11/16" | 40' | Yes | 3000 | 63 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MP-N-350 | 3/8" | 11/16" | 50' | Yes | 3000 | 65 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MP-N-435 | 1/2" | 13/16" | 35' | Yes | 2500 | 61 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MP-N-440 | 1/2" | 13/16" | 40' | Yes | 2500 | 62 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MP-N-450 | 1/2" | 13/16" | 50' | Yes | 2500 | 67 | 8.75"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MP-N-525 | 3/4" | 1 1/16" | 25' | Yes | 1500 | 61 | 9.38"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MP-N-535 | 3/4" | 1 1/16" | 35' | Yes | 1500 | 68 | 9.38"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MPL-N-340 | 3/8" | 11/16" | 50' | No | 3000 | 53 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MPL-N-350 | 3/8" | 11/16" | 50' | No | 3000 | 53 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MPL-N-435 | 1/2" | 13/16" | 35' | No | 2500 | 51 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MPL-N-440 | 1/2" | 13/16" | 35' | No | 2500 | 51 | 8.25"(W) 21.25"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MPL-N-450 | 1/2" | 13/16" | 50' | No | 2500 | 53 | 8.75"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MPL-N-525 | 3/4" | 1 1/16" | 25' | No | 1500 | 51 | 9.38"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
| MPL-N-535 | 3/4" | 1 1/16" | 35' | No | 1500 | 54 | 9.38"(W) 25.5"(H) 19.5"(L) | 4"(M) 5"(N) | 6"(X) 6"(Y) |
What Our Experts Think
- Super Hub™ Technology: Innovative design for smooth, effortless hose operation and increased durability, even under heavy use.
- Medium-Pressure Capability: Perfect for a range of industrial applications, including air, water, and hydraulic fluid transfer.
- Spring-Driven Retraction: Provides automatic, hassle-free hose rewind, minimizing manual effort and improving productivity.
- Heavy-Duty Construction: Built to withstand harsh environments and frequent use, ensuring long-lasting performance.
- Corrosion-Resistant Finish: Offers added protection against rust and wear, ideal for both indoor and outdoor applications.
- Efficient Hose Management: Keeps hoses neatly stored and easily accessible, reducing clutter and improving workspace safety.
Q&A
Q: What is the Coxreels SH Series “Super Hub™” Medium Pressure Spring Driven Hose Reel - MP-N-340?
A: A medium-pressure, spring-driven hose reel featuring the innovative Super Hub™ technology for smooth, efficient hose retraction in demanding environments.
Q: What is the hose capacity?
A: This reel holds up to 340 feet of medium-pressure hose, providing ample storage for various industrial applications.
Q: How does the Super Hub™ technology benefit the reel?
A: The Super Hub™ system ensures smooth and reliable operation, minimizing friction and enhancing hose performance during retraction.
Q: What materials is the reel made from?
A: Constructed with high-quality, durable materials that resist corrosion and wear, ensuring long-term reliability in tough environments.
Q: How is the spring-driven mechanism operated?
A: It features a spring-driven rewind system, providing automatic retraction with minimal effort, improving efficiency on the job.
Q: What are typical applications for this reel?
A: Ideal for industries requiring medium-pressure hose management, such as construction, agriculture, and industrial cleaning.
Maintenance Tips
- Model: MP-N-340
- Hose Capacity: Holds up to 150 feet of 3/8” or 1/2” medium-pressure hose
- Pressure Rating: Rated for medium-pressure applications up to 3000 PSI
- Construction: Heavy-duty steel frame with corrosion-resistant powder-coated finish for maximum durability
- Drive Mechanism: Spring-driven automatic rewind for smooth and effortless hose retraction
- Swivel Inlet: Full-flow brass swivel for unrestricted fluid transfer and minimal wear
- Roller Design: Multi-position guide arm with reinforced rollers for smooth and consistent hose payout and retraction
- Mounting Type: Wall, floor, or ceiling mount for flexible installation options
- Applications: Ideal for medium-pressure fluid transfer in industrial, commercial, and workshop environments
- Temperature Range: Works effectively in a wide range of temperatures
- Weight: Varies based on hose configuration
