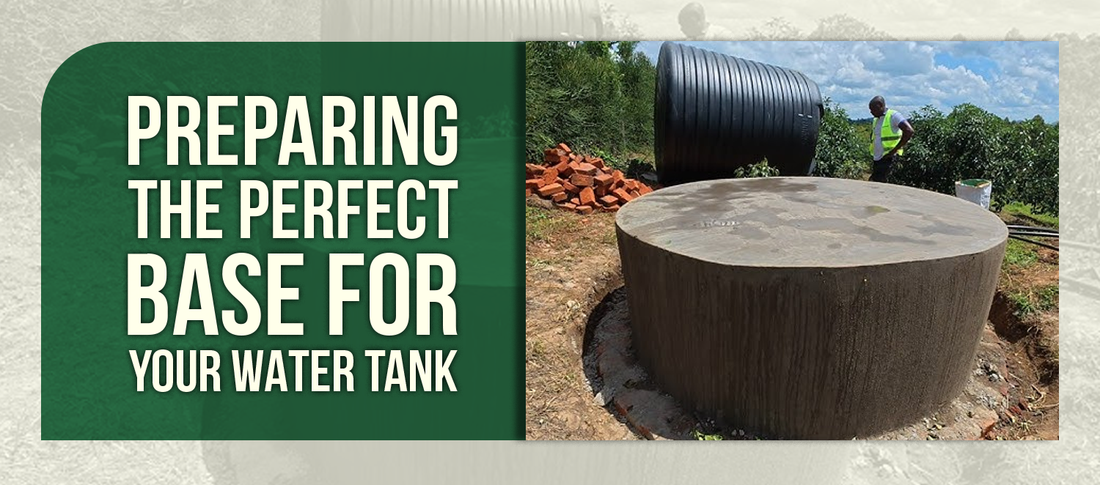

Getting your water tank base preparation right is just as critical as choosing the right tank itself. A full tank can weigh many tonnes, so the surface beneath it has to be firm, perfectly level, and thoroughly compacted to handle that load safely over time.
Why a Strong Base Matters
A properly built rainwater tank foundation does several important jobs at once:
- Distributes the tank's weight evenly so it doesn't lean, bulge or crack under pressure.
- Reduces the safety hazards that come with a shifting, sinking or unstable tank.
- Supports long-term performance and helps you meet tank manufacturer installation requirements.
Most issues people experience with their tanks can be traced straight back to a poorly prepared base, which is why it's well worth taking the extra time to choose and prepare the best possible foundation for your water tank.
Different Water Tank Base Options
There are a few proven options to choose from, and the right one depends on the size of your tank, the type of ground you're working with, and how you plan to use the system long term.
Crusher Dust
A compacted crusher dust base is one of the most popular choices for round poly tanks. Crusher dust packs together tightly when compacted, forming a smooth, stable pad. Box the area in with edging like sleepers or concrete to keep the material from washing away, then spread A-grade compactable material that's free of rocks or sharp objects and compact it until the surface is completely flat and level.
Reinforced Concrete
A concrete slab is the go-to option for slimline tanks and bigger capacity setups. A reinforced pour creates a hard, dependable surface that won't budge under load. Set up formwork that's larger than the tank's footprint, pour a slab at a suitable thickness following local requirements and the manufacturer's recommendations, finish it level, and let it fully cure before positioning the tank.
Pavers and Other Surfaces
Pavers can do the job for smaller tanks as long as they're laid on a properly compacted, level base and locked in so they don't shift. They tend to work best under smaller slimline tanks for residential use rather than large round tanks. For bigger rainwater storage setups, crusher dust or concrete is usually the more dependable choice.
Whatever base material you go with, the goal is the same: a flat, solid surface that fully supports the entire base of the tank — no gaps, no soft spots, no wobble.
Get Compaction Right the First Time
Proper compaction is the single most important step in preparing your base — and it's also where most DIY installs fall short. A heavy-duty plate compactor delivers the consistent, dense finish your tank needs to sit safely for years to come.
Stark USA Plate CompactorStep-by-Step Installation Guidance
Here's a straightforward poly tank installation walkthrough for getting the base ready (always follow the full instructions from your tank manufacturer as well):
1 Choose the Location
- Close to downpipes and existing plumbing where it's practical.
- Clear of tree roots, sharp rocks and any buried services.
- With enough room for a base that extends at least 600mm wider than the tank itself.
2 Prepare and Level the Ground
- Strip out the turf, soft topsoil, roots, loose rocks and debris.
- Where possible, cut down into the ground rather than building the base up on a mound. This helps reduce erosion risk and improves overall support for the tank.
3 Lay Your Base Material
- For crusher dust or gravel: spread A-grade compactable material to the recommended depth, double-checking that it's free of sharp objects that could damage the tank.
- For concrete: set up formwork and reinforcement, then pour and trowel the slab out to a smooth, level finish.
4 Compact and Check Levels
- Use a mechanical compactor or a hand tamper to thoroughly compact the material. Lack of proper compaction is one of the biggest causes of base failure.
- Run a spirit level across the surface in multiple directions to confirm the rainwater tank base is completely flat.
5 Consider Drainage and Erosion
- Make sure overflow pipes are routed away from the base so water doesn't scour material from underneath.
- Use edging or a retaining wall to keep your base material locked in place and stop washout from heavy rain, vermin or vehicles.
Once the base is ready, you can move on to the plumbing side of the install — fitting a flexible hose off the outlet, supporting any pipework with stands, and securing the tank as per your manufacturer's instructions.
Common Mistakes to Avoid
Even small shortcuts during base preparation can lead to big problems down the line. Here are some of the most common mistakes to watch out for:
Skipping Proper Compaction
Loose, under-compacted material settles unevenly, leaving the tank to lean or stress at weak points.
Building Up Instead of Cutting In
A base mounded on top of soft ground is far more vulnerable to erosion and washout over time.
Using a Base That's Too Small
The base should extend well beyond the tank footprint to support the edges and prevent collapse.
Ignoring Sharp Material
Rocks or sharp debris in the base can puncture or wear the bottom of a poly tank under load.
Not Checking the Level
Even a small slope can cause uneven weight distribution and structural issues down the line.
Forgetting About Drainage
Overflow and runoff water that's not directed away can scour the base out from underneath.
Final Thoughts
A well-prepared base is the foundation of every reliable rainwater tank install — quite literally. Take your time choosing the right material, prepare the ground thoroughly, compact it properly, and you'll set yourself up for years of safe, trouble-free water storage. Cut corners here and you'll likely pay for it later.
