Ceiling Cassette Mini-Split Units vs. Wall-Mount Units: The Differences

Ductless mini-split systems offer a flexible way to bring heating or cooling into a space without the mess and expense of installing new ductwork. Two of the most common configurations are ceiling cassettes and wall-mount units — and while both avoid ducts entirely, they differ meaningfully in how they are installed and where the indoor air handler sits.

If you are working in the heating and cooling trade, knowing how these two styles compare is essential. A clear understanding of the similarities and distinctions between ceiling cassettes and wall-mount mini-splits helps you guide clients toward the right fit for their space, their budget, and their long-term comfort.

What Is a Mini-Split Ceiling Cassette?

A ceiling cassette is a ductless system in which the indoor air handler is recessed into the ceiling itself. From there, refrigerant lines and other connections travel through the ceiling cavity or attic space and out to the exterior condenser. Once installed, these units sit nearly flush with the ceiling and can look remarkably similar to a standard supply vent found in a traditional ducted HVAC system. The most common configuration is the four-way cassette, but newer one-way models are now designed to fit neatly between joists spaced at 16 inches on center.

What Is a Wall-Mount System?

With a wall-mount mini-split, the indoor air handler is fixed directly to an interior wall. The refrigerant and electrical lines pass through the wall behind it, exit the building, and connect to the outdoor unit. This is the classic, immediately recognizable ductless setup — the one most people picture when they hear the term "mini-split" — and it remains the most popular style by a comfortable margin.

Differences Between a Ceiling Cassette and Wall-Mount Mini Split

The most obvious difference between the two styles comes down to placement. A ceiling cassette lives in the ceiling plane, while a wall-mount unit lives on an interior wall. That single decision drives nearly every other distinction that follows.

Beyond airflow patterns, installation complexity is another key contrast. Ceiling cassettes typically require enough attic or ceiling space to route refrigerant lines — a standard four-way cassette pulls through the attic, while the one-way version can thread through the joist bay itself. Working in those tight overhead spaces takes more time, more skill, and usually a higher labor bill. As a result, ceiling cassettes tend to carry a larger installation cost than their wall-mounted counterparts.

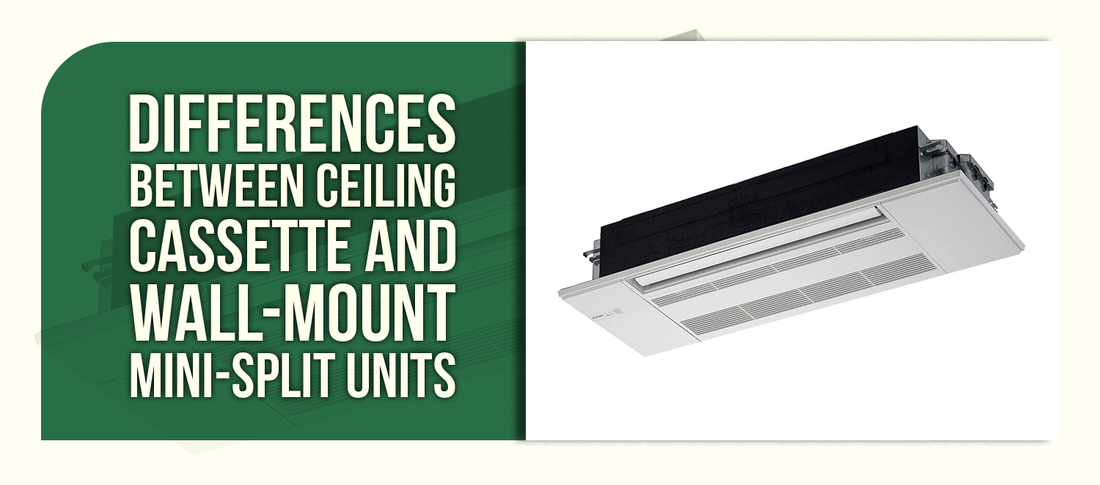

The newest one-way ceiling cassette is built specifically with residential use in mind. It slides between joists on 16-inch centers and works equally well in new construction or retrofit projects. Service access is available from either underneath the unit or from the joist side, giving technicians flexibility during maintenance.

Wall-mount units, on the other hand, remain the quickest route to get a ductless system up and running. Lines run straight through the back wall to the outdoor condenser — no attic crawl required. That makes them an excellent fit for situations where no accessible ceiling cavity exists, or when the client simply wants to keep installation costs as lean as possible.

The tradeoff is visibility. Wall-mount heads are noticeable by design, since they are mounted in plain sight. Placement and color choices can soften their presence, but aesthetics-conscious homeowners sometimes prefer the hidden look of a cassette regardless.

Which Option Is Best for Your Client?

Both ceiling cassettes and wall-mount mini-splits come with their own strengths and compromises. So how do you help a client arrive at the right pick?

In the end, the decision usually rests on three things: the physical space available, the homeowner's budget, and their aesthetic preferences. Clients who prioritize a clean, discreet finish will often find the extra investment of a ceiling cassette worthwhile. Those focused on the fastest, most cost-effective installation are generally better served by a wall-mount. And when a home lacks the ceiling or attic access required to run lines overhead, a wall-mount unit may be the only practical option.

By walking your clients through these distinctions clearly, you empower them to make confident, informed choices about the equipment that will heat and cool their home for years to come.
