Ceiling Cassette Mini Split Guide

When you want a home that looks clean and feels perfectly conditioned, a ceiling cassette mini split is one of the smartest answers you can install. It gives you the cooling and heating power of a ductless system without taking up any wall real estate.

For homeowners who want climate control that is genuinely "out of sight, out of mind," a ceiling cassette brings together discretion and serious performance. Whether you are upgrading a single room or planning comfort across an entire home, this guide will walk you through picking and installing the right unit for your space.

What is a Ceiling Cassette Mini Split?

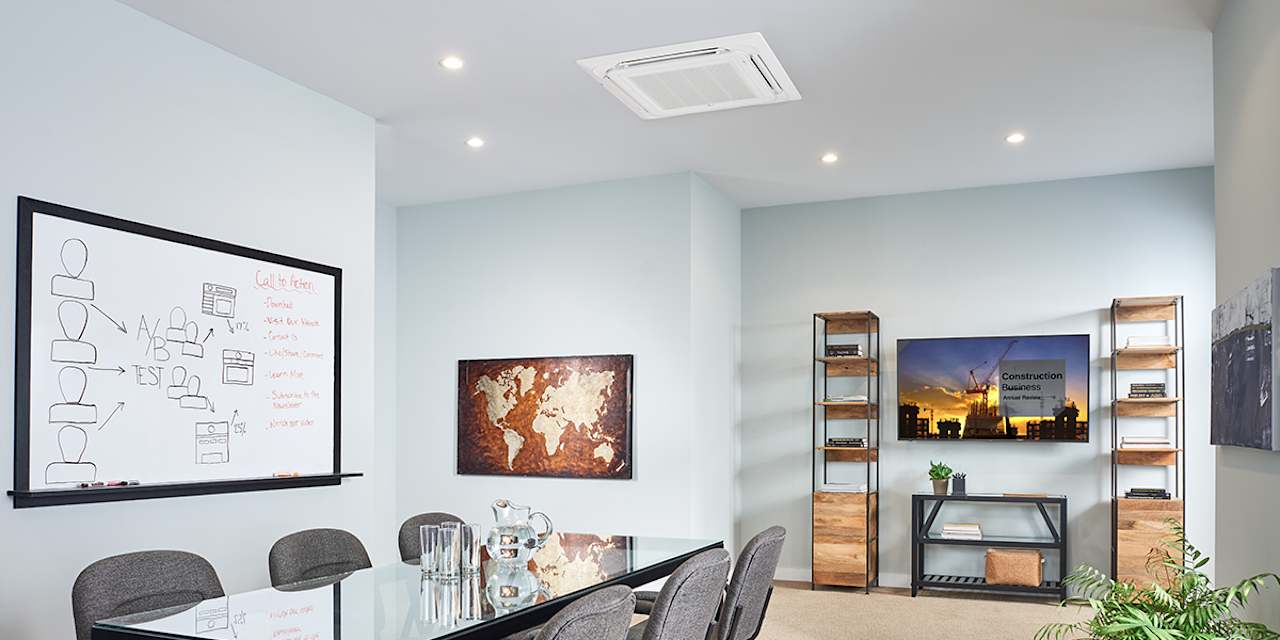

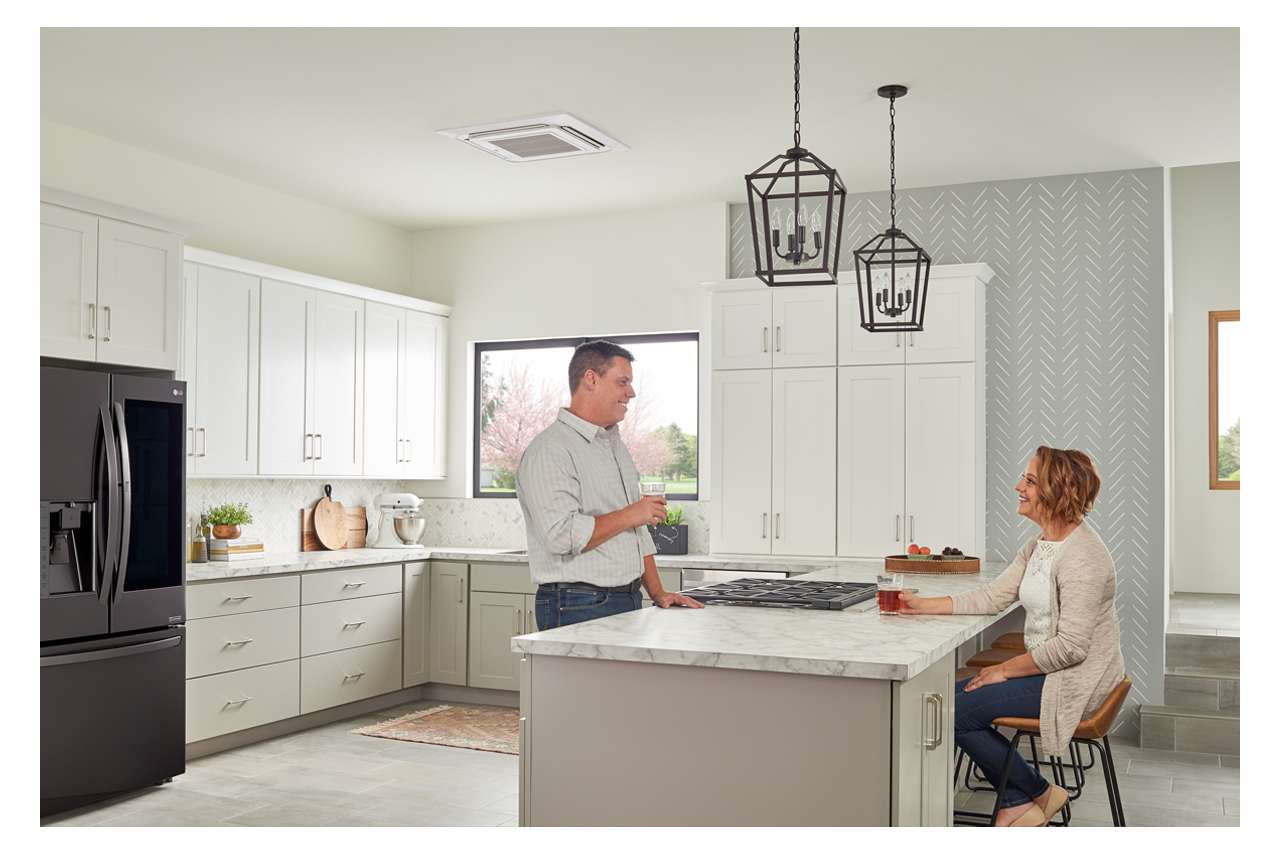

The biggest appeal of a ceiling cassette is how invisible it becomes. The working hardware is tucked neatly above the ceiling line, leaving only a slim grille — usually about an inch thick — flush with the room below. That makes it a perfect pick for spaces where you want to protect clean wall lines and keep every bit of usable wall space.

Looks aside, ceiling cassettes bring real muscle to the table:

• Wider CoverageBuilt to condition larger rooms more effectively than a typical wall-mounted mini split.
• Balanced AirflowWith four outlets pushing air from every side of the unit, cassettes smooth out hot and cold pockets across big, open-concept rooms.

Ceiling Cassette Installation and Placement

A clean install is all about the details. A little planning up front makes sure your system performs flawlessly for years:

Sizing and Fit

Most standard ceiling cassettes measure roughly 24 by 24 inches, which drops right into a standard drop-ceiling grid. If you are working with a finished ceiling instead, there are a couple of structural points to keep in mind:

• Ceiling ClearancePlan on 10 to 12 inches of open vertical space above the ceiling to house the body of the unit and its suspension hardware.
• Joist SpacingIf your joists sit on standard 16-inch centers, a typical four-way cassette may need custom framing. A one-way cassette often fits between standard joists more easily, though it spreads air less evenly.

Drainage and Placement

• Condensate HandlingCassettes come with a built-in lift pump that moves the condensate produced during cooling. It connects to a 1"–1.25" rigid PVC line routed to the outside of the home.
• Where to Put ItThese units work best when centered in the room so their four-way airflow can do its job. If centering is not possible, block off any vents that would otherwise blast air directly at a wall — that kills circulation.

Why Insulation Matters So Much

If the unit is going into an unconditioned area like an attic, the space around it absolutely must be insulated. Without that buffer, condensation will form on the outside of the cassette and eventually drip into your finished living space below.

Other Features Worth Looking At

Today's top brands pack ceiling cassettes with options that let you dial in your comfort exactly how you want it:

• Directional Airflow ControlMany models allow you to shut down one or two of the four vents so you can steer air away from desks, couches, or dining areas.
• Remote Temperature SensingBecause cassettes sit on the ceiling, built-in thermostats may not read the true room temperature. A remote sensor placed on the opposite side of the room gives a far more accurate reading.
• Branch Duct SupportSome cassette models can push air through a short branch duct, conditioning a primary living space plus an adjacent smaller area (a den or hallway) from one unit — great for efficiency.
• Fresh Air IntakeMany cassettes offer a fresh-air port that pulls in outside air, circulating it into the home rather than just recycling stale indoor air.
