Everything you need to know about choosing the right fiber optic enclosure for your rack, cabinet, or wall-mount installation.
Fiber optic distribution boxes are the backbone of any organized, high-performance fiber network. Whether you're building out a data center, office communications room, or industrial cabling system, choosing the right enclosure determines how efficiently you can manage, protect, and scale your fiber connections.
There are three main form factors available: rack mount, ODF cabinet mount, and wall mount. Rack mount units are the most widely used, typically measuring 19 inches wide and available in 1U, 2U, 3U, or 4U heights. A single U (rack unit) equals 44.45 mm — roughly 1.75 inches. A 2U unit reaches about 88.88 mm, and a 3U stands at 133.35 mm. The primary distinction between 1U/2U and 4U enclosures is how many fiber cores they can support.
Among rack mount enclosures, there are three common installation styles: cover removable, drawer type, and swing-out type. Drawer and swing-out designs offer the most user-friendly experience for daily access, though they cost slightly more. Cover removable enclosures are the most economical option. In this article, we focus on the drawer-type fiber enclosure — why it stands out and what makes it the preferred choice for telecommunications professionals.
Three Rack-Mount Enclosure Styles
Each installation style suits different access needs, budgets, and density requirements.
Cover Removable
The most budget-friendly option. The top panel is lifted off to access the interior, making it straightforward but less convenient for frequent use.

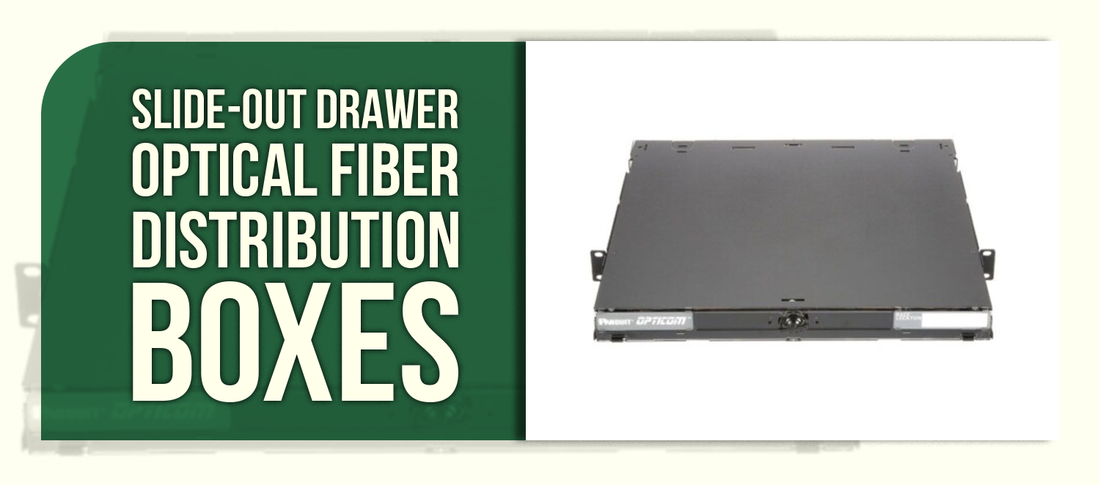

Drawer Type
Slides forward from the rack for hands-on access. Ideal for installations requiring regular maintenance, patching, or cassette swaps.
Swing-Out Type
The panel swings open on a hinge. Offers good accessibility and a clean finish, popular in neat rack environments.
Split Tray Design — Easy to Operate
The drawer-type enclosure uses a split tray system, enabling each module box to be pushed and pulled independently when units are stacked. This is a critical advantage in dense rack environments where accessing one cassette without disturbing others saves significant time.
The mounting area features a separate pull-button lock that prevents accidental slipping during operation. The tray glides out smoothly with a sliding and locking mechanism, so you can work confidently — it stays extended while you patch, re-route, or replace a cassette module, then locks back securely when you're done.
At-a-Glance: Capacity Highlights
Compact Structure — Super-Density Cabling
The compact design is engineered to push fiber density and port count to their limits while making the most of every inch of rack space. Using a high-density design patch panel with maximum LC connectivity and an 8-cabling approach, these enclosures use high-strength, environmentally lightweight materials with superior surface treatment.
Each cassette module handles 24 fibers. Put 6 cassettes in a 2U chassis and you reach up to 144 LC interfaces or 72 SC interfaces. Scale to 4U and you can accommodate 12 cassettes — 288 LC interface or 144 SC interface. With a high-density LC configuration, 4U can be pushed to 576 core LC or 288 core SC interface.
Flexible Design — Efficient Cable Management
An independent cable management frame runs along the back of the enclosure, providing a dedicated path to route and organize cables while maintaining airflow around the panel. This keeps your cabinet clean and reduces strain on fiber connections.
The front-side independent cassette is designed for smart cable management. A multi-layer cassette structure allows for easy separated operation, keeping each circuit accessible without tangling adjacent runs. At the back, an independent cable management frame anchors the trunk cable and a redundant trunk cable ensures each cassette moves and reseats reliably.
Ready to Upgrade Your Fiber Infrastructure?
The drawer-type fiber distribution box is one of the most flexible, scalable, and easy-to-manage enclosure solutions available today. Whether you're running a patch cord network, fiber fusion setup, fiber storage, or high-density MTP cabling system, these enclosures are built to keep pace. Available in 1U, 2U, and 4U heights, they're ready to support dozens of different high-performance networking configurations.
